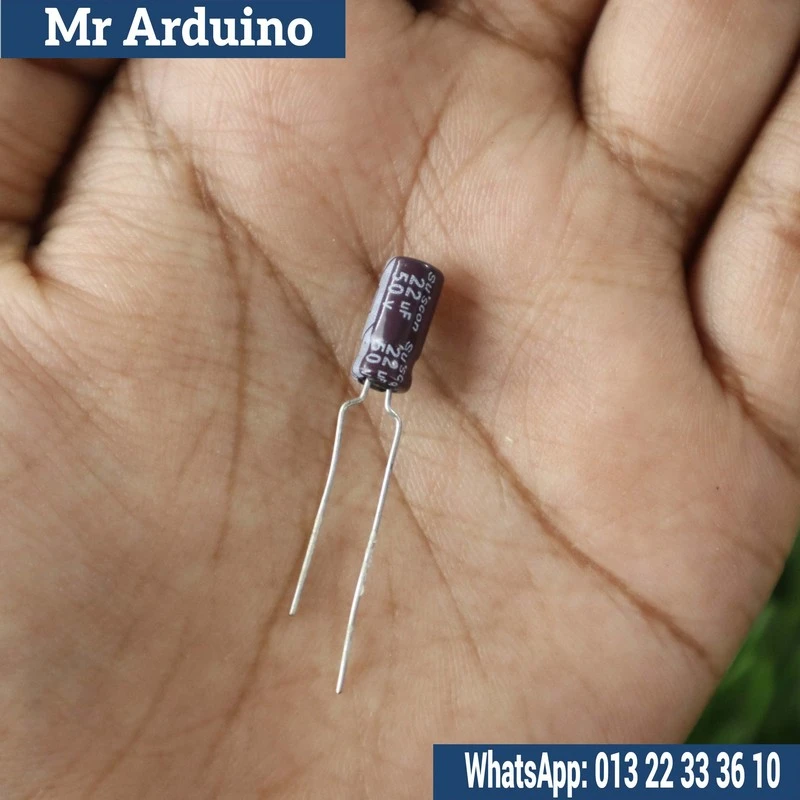

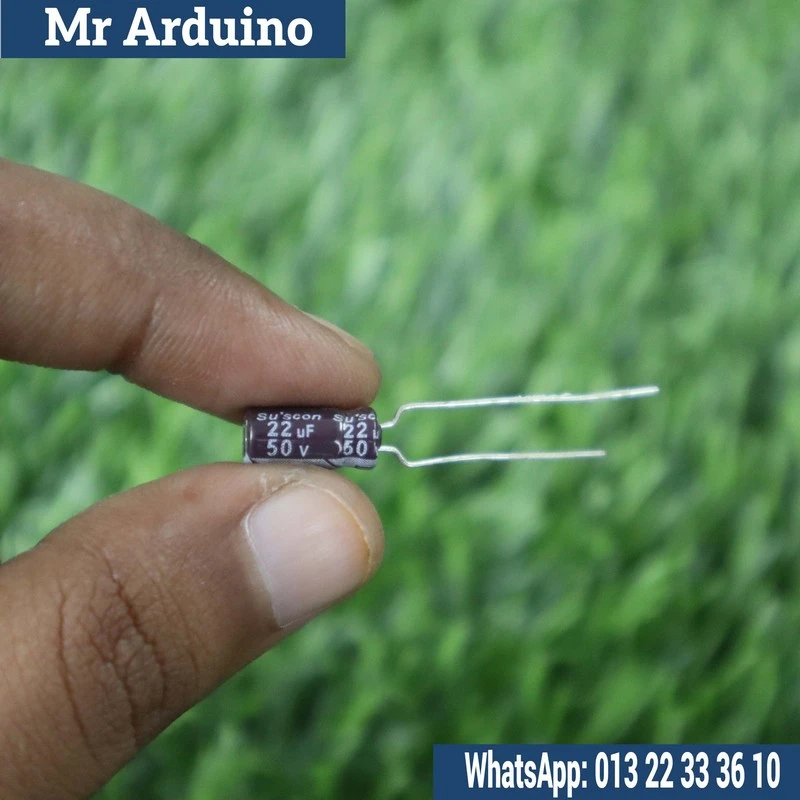

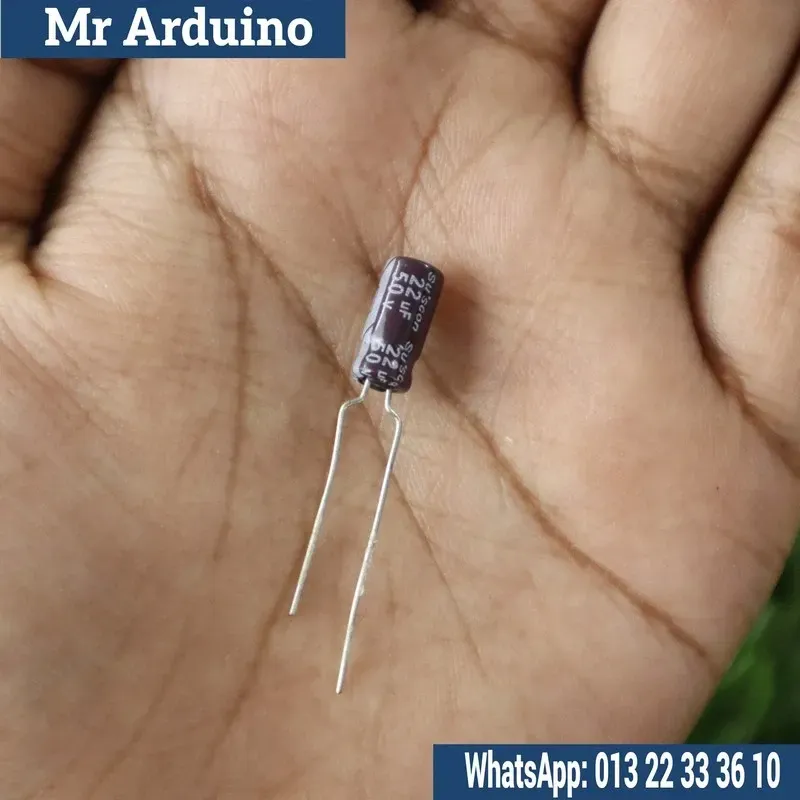

The 50V 22uF Electrolytic Capacitor is a compact and efficient electrical component designed to store and release electrical energy in various electronic circuits. Electrolytic capacitors are polarized, meaning they must be installed in the correct orientation to function properly. This capacitor is rated for 50V voltage and has a capacitance of 22 microfarads (uF), making it suitable for a wide range of applications, particularly where higher capacitance values are required in circuits involving power supply filtering, signal smoothing, and energy storage.

Features:

• Capacitance: 22μF, ideal for smoothing and filtering applications where moderate capacitance is required.

• Voltage Rating: 50V, indicating the maximum voltage the capacitor can safely withstand before it risks failure or damage.

• Electrolytic Design: The capacitor uses an electrolyte as one of its plates, which allows for high capacitance in a relatively small package.

• Polarized: This is a polarized capacitor, meaning it must be installed in the correct orientation in a circuit (with the positive lead connected to the higher potential).

• Applications: Commonly used in power supplies, audio circuits, and other electronics where filtering and energy storage are needed.

How It Works:

An electrolytic capacitor stores energy in the form of an electrostatic field between two conductive plates, with one of the plates being a thin oxide layer (in the case of electrolytic capacitors) and the other a metal foil. The dielectric medium is an electrolyte that is used to increase the capacitance. When a voltage is applied across the capacitor, it accumulates charge on its plates, creating an electric field.

1. Charging: When connected to a power source, the capacitor begins to charge, storing electrical energy in the form of an electrostatic field.

2. Discharging: When the capacitor is connected to a load, it releases the stored energy, providing a burst of current to the circuit.

3. Filtering & Smoothing: Capacitors like this one are used to smooth voltage fluctuations, filter out noise, and store energy for short periods to stabilize power supply circuits.

Product Limitations:

• Polarization: Being a polarized capacitor, it must be installed with the correct polarity (positive lead to the positive voltage, negative lead to the negative voltage) to prevent damage.

• Temperature Sensitivity: Electrolytic capacitors can be sensitive to high temperatures and may degrade over time if used in extreme conditions, reducing their effectiveness and lifespan.

• Voltage Tolerance: While rated for 50V, applying voltages higher than this can lead to breakdown and potential failure of the capacitor.

• Lifespan: Electrolytic capacitors have a limited lifespan compared to other types of capacitors, typically because of the degradation of the electrolyte over time.

Applications:

• Power Supply Filtering: Used in power supplies to smooth out voltage fluctuations and reduce ripple, ensuring a steady voltage output.

• Audio Circuits: Helps in smoothing out power supply variations in audio equipment, reducing hum or noise.

• Signal Coupling and Decoupling: Used in signal processing to filter out unwanted frequencies or to couple different stages of a circuit without allowing DC to pass through.

• Energy Storage: Ideal for circuits that require short bursts of stored energy, such as in camera flashes or voltage regulation.

The 50V 22uF Electrolytic Capacitor is an essential component for a variety of electronic circuits requiring energy storage, smoothing, and filtering capabilities. Its high capacitance allows for effective voltage regulation and noise reduction, making it a reliable choice for DIY electronics, power supplies, and audio applications.
