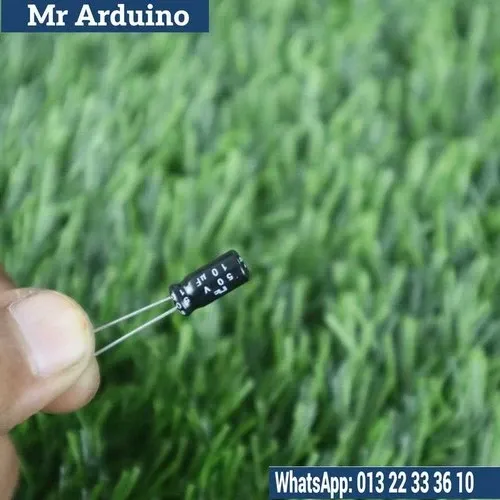

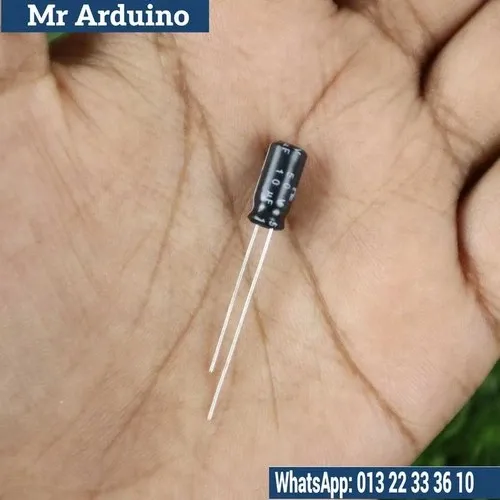

The 50V 10uF Electrolytic Capacitor is a compact, high-performance capacitor designed for use in electronic circuits where moderate capacitance and higher voltage tolerance are necessary. With a capacitance of 10µF and a rated voltage of 50V, this capacitor is ideal for applications in power supplies, voltage regulation, signal filtering, and audio circuits, where small to moderate capacitance values are required, along with the ability to withstand higher voltage levels.

As an electrolytic capacitor, it features a polarized design, meaning it must be connected with the correct polarity (positive lead to the higher voltage side) to ensure proper functioning and to avoid any potential damage to the capacitor.

Key Features:

• Capacitance Value: 10µF, providing moderate energy storage for filtering and voltage stabilization in circuits that do not require high capacitance.

• Rated Voltage: 50V DC, suitable for circuits with voltages up to 50V.

• Polarized Design: Must be installed with correct polarity to prevent failure (positive lead should be connected to the higher voltage side).

• Compact Size: Despite its higher voltage rating, this capacitor remains small enough for use in a variety of space-limited designs.

• Reliable and Durable: Built for long-term reliability, designed to withstand the stresses of electronic circuits in a wide range of applications.

How It Works: The 50V 10uF Electrolytic Capacitor stores electrical energy between two electrodes, separated by an insulating dielectric layer. When voltage is applied across the terminals, the capacitor charges and stores energy in the form of an electric field. The stored energy is released when the circuit requires stabilization or buffering, helping to smooth out fluctuations in the voltage.

In power supply circuits, this capacitor is typically used for smoothing out ripple and providing a stable DC voltage. In signal filtering applications, it removes unwanted high-frequency noise and allows only the desired signal to pass through.

Applications:

• Power Supply Filtering: Used in DC power supplies to smooth out voltage ripple, ensuring that the output is clean and steady for sensitive components.

• Voltage Regulation: Ideal for stabilizing voltages in DC-DC converters, voltage regulators, and other circuits that require consistent voltage.

• Audio Systems: Commonly used in audio circuits, such as amplifiers or filters, to block DC components while allowing AC signals (audio) to pass through, improving audio clarity.

• Signal Coupling: Helps in signal processing circuits by blocking DC components and allowing only AC signals to pass between stages.

• Energy Storage: Provides energy storage for circuits that need to buffer or stabilize power, such as in power converters or motor drivers.

Specifications:

• Capacitance: 10µF (microfarads)

• Rated Voltage: 50V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify datasheet for exact range)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for specific dimensions)

Limitations:

• Polarized: The capacitor must be installed with the correct polarity. Reversing the polarity can result in capacitor failure, leakage, or rupture.

• Voltage Rating: The maximum voltage rating is 50V. Applying a voltage higher than this can cause permanent damage to the capacitor.

• Lifespan: Electrolytic capacitors degrade over time, especially in high voltage or temperature conditions, leading to a reduction in capacitance or an increase in leakage current.

• Size: While compact, the 10µF capacitance value may still be too large for circuits with very strict space requirements.
