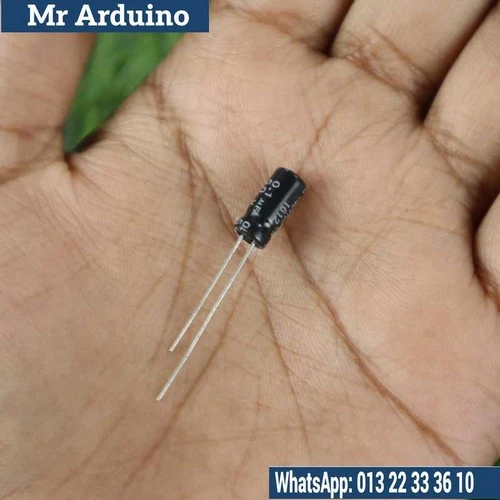

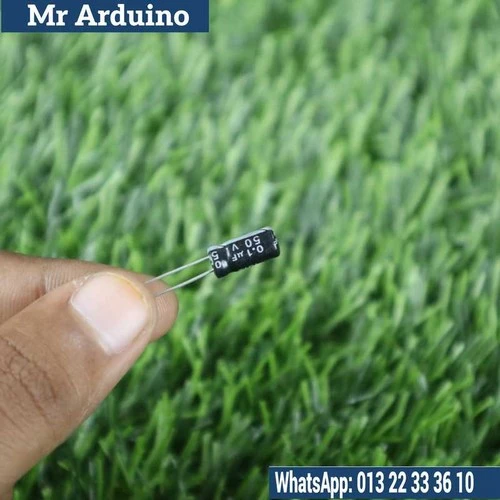

The 50V 0.1uF Electrolytic Capacitor is a small, efficient capacitor designed for applications that require a modest capacitance value along with the ability to withstand higher voltages. With a capacitance of 0.1µF and a rated voltage of 50V, this capacitor is ideal for use in circuits where smaller capacitance is sufficient, but the circuit operates at higher voltages, such as in signal filtering, voltage stabilization, and power supply applications.

As a polarized electrolytic capacitor, it must be installed with the correct polarity (positive lead to the higher voltage side) to prevent damage, leakage, or failure.

Key Features:

• Capacitance Value: 0.1µF, suitable for small energy storage applications, filtering, and signal coupling where low capacitance is required.

• Rated Voltage: 50V DC, providing reliable performance in higher-voltage circuits.

• Polarized Design: Must be installed with the correct polarity to avoid failure. The positive terminal should be connected to the higher voltage side of the circuit.

• Compact Size: Despite the higher voltage rating, this capacitor is small and fits well in space-constrained electronic designs.

• Reliable and Durable: Designed for long-term performance, providing stability and reliability in a variety of electronic circuits.

How It Works: The 50V 0.1uF Electrolytic Capacitor stores electrical energy between its two electrodes, separated by an electrolyte dielectric. When a voltage is applied across its terminals, the capacitor charges and stores energy in the form of an electric field. This stored energy can then be released when needed to stabilize the voltage, filter out noise, or buffer power.

In power supply circuits, this capacitor helps to suppress high-frequency noise and smooth out voltage fluctuations, ensuring clean and steady DC voltage. In signal processing circuits, it helps block unwanted DC components while allowing the desired AC signal to pass through.

Applications:

• Power Supply Filtering: Used in DC power supplies to smooth voltage ripple, providing stable DC output for sensitive electronics.

• Signal Filtering: Effective in filtering high-frequency noise from signal lines, ensuring that the signal remains clean and noise-free.

• Voltage Stabilization: Helps in stabilizing voltages in various voltage regulation circuits and DC-DC converters.

• Audio Systems: Used in audio circuits such as filters and pre-amplifiers to block DC voltage while allowing audio signals to pass through.

• Coupling and Decoupling: Helps in signal coupling or decoupling by allowing only AC signals to pass while blocking DC components.

Specifications:

• Capacitance: 0.1µF (microfarads)

• Rated Voltage: 50V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify datasheet for exact range)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized: Correct polarity must be observed during installation to avoid damage or failure. Reversing the polarity can lead to leakage or rupture.

• Voltage Rating: The maximum rated voltage is 50V. Exceeding this voltage will damage the capacitor.

• Lifespan: Electrolytic capacitors degrade over time, especially under high voltage and temperature conditions, leading to reduced capacitance and higher leakage.

• Size: While it is compact, this capacitor may still be too large for extremely space-constrained applications.
