504 50k VR Trimmer Square

0 Orders 0 Wish listed

৳25

Qty

Total price:

৳25

Overview
Reviews

Detail Description

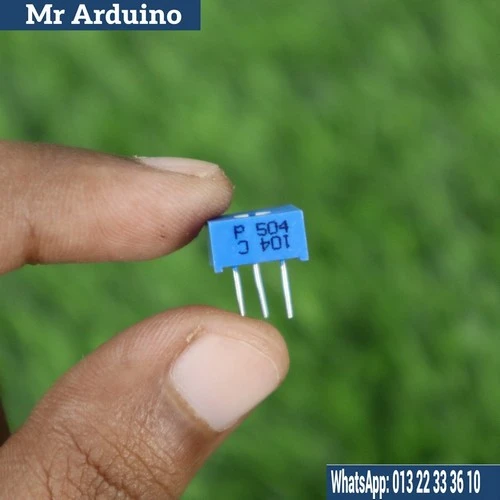

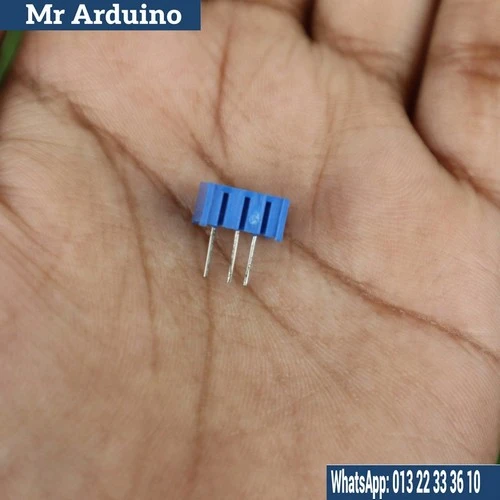

The 504 500K VR Trimmer Square is a compact adjustable variable resistor (trimmer potentiometer) used for fine-tuning voltage, current, or signal levels in electronic circuits. It has a resistance value of 500K ohms and comes in a square body design, making it suitable for PCB-mounted calibration and adjustment applications.

This square trimmer is widely used in sensor calibration circuits, timing circuits, amplifier tuning, and voltage adjustment systems where a high resistance value is required. Its stable adjustment mechanism and compact design make it ideal for embedded electronics, DIY projects, and general-purpose circuit designs.

Key Features:

• Resistance Value: 500K Ohm (marked as 504).

• Adjustable Type: Variable resistor for tuning and calibration.

• Square Body Design: Compact and suitable for PCB mounting.

• Screw Adjustment: Easy tuning using a small screwdriver.

• Stable Performance: Holds adjusted value reliably during operation.

How it Works:

1. Screw Rotation: Turning the adjustment screw changes resistance value.

2. Circuit Tuning: Adjusts voltage/current/signal settings in the circuit.

3. Calibration Support: Fine-tunes circuit output for accurate performance.

4. Stable Setting: Maintains selected resistance during normal use.

Applications:

• Circuit calibration and tuning

• Timing and oscillator circuits

• Sensor module fine adjustment

• Amplifier and audio tuning circuits

• Educational and DIY electronics projects
