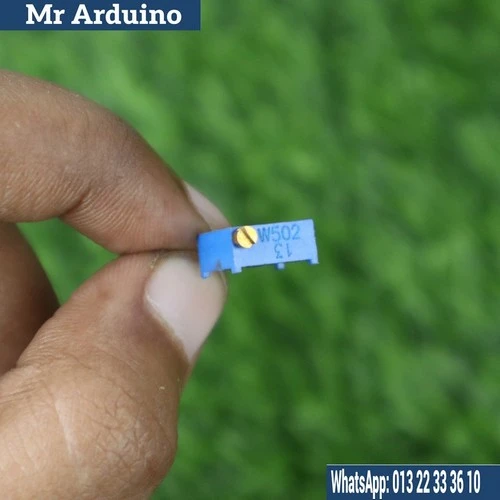

The 502 5k VR Trimmer Rectangular is a versatile variable resistor designed for fine-tuning and calibration in electronic circuits. With a resistance value of 5k ohms, this trimmer potentiometer is ideal for applications requiring precise adjustments, such as audio equipment, sensors, and other electronic devices.

Key Features:

• Adjustable Resistance: The 5k ohm rating allows for versatile applications in circuits needing fine adjustments, enabling users to achieve optimal performance.
• Compact Rectangular Design: Its space-saving rectangular shape is perfect for compact circuit boards and tight layouts, ensuring efficient use of space.
• Durable Construction: Crafted from high-quality materials, this trimmer is designed for long-lasting performance, capable of withstanding regular use.
• Easy Adjustment: The screw-type adjustment mechanism facilitates precise tuning, allowing for quick and accurate changes to resistance levels.
• Wide Application Range: Suitable for various electronic projects, including audio and video equipment, RF circuits, and calibration tasks.

Working Principle

The 502 5k VR Trimmer operates on the principle of variable resistance. Here’s how it functions:

1. Basic Structure: The trimmer features a resistive element and a movable wiper that adjusts the resistance based on its position along the element.
2. Resistance Adjustment: By turning the adjustment screw, the wiper moves along the resistive path, altering the resistance between the terminals.
3. Circuit Integration: When incorporated into a circuit, this adjustable resistance can control voltage, current, or signal levels, allowing for precise calibration and tuning.
4. Enhanced Functionality: This flexibility makes the trimmer essential for optimizing performance in various electronic applications.

The 502 5k VR Trimmer Rectangular is an ideal solution for those needing precise resistance adjustments in their electronic projects, enhancing the functionality and efficiency of their circuits.
