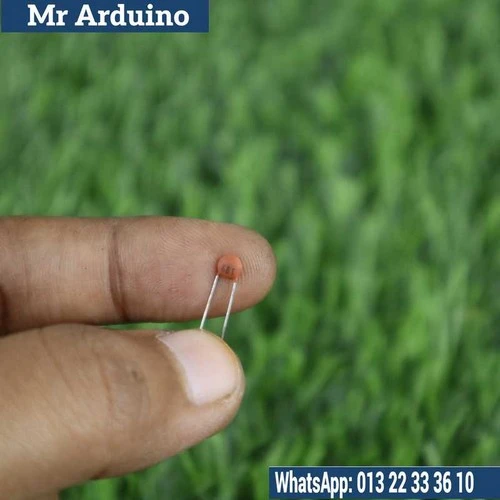

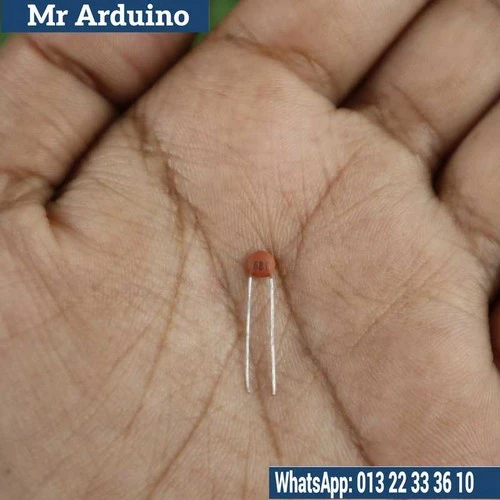

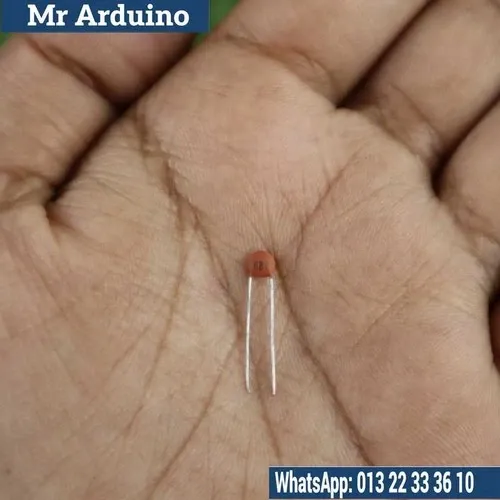

The 681 pF 50V Ceramic Disc Capacitor is a reliable and widely used capacitor that features a capacitance of 681 picofarads (pF) and a 50V voltage rating. This ceramic disc capacitor is an essential component in a variety of electronic circuits, offering stable performance and durability. The ceramic dielectric material makes it suitable for high-frequency applications, ensuring minimal loss of signal integrity.

This capacitor is commonly used for signal filtering, decoupling, and coupling applications, where low capacitance is needed to block DC signals while allowing AC signals to pass through. It is often found in oscillators, high-frequency circuits, RF (radio frequency) applications, and power supply filtering. With its compact size, the 681 pF 50V Ceramic Disc Capacitor provides an excellent balance between capacitance value, voltage rating, and affordability, making it a popular choice for a wide range of electronic devices.

Key Features:

• Capacitance: 681 pF (0.681nF), ideal for circuits requiring a low capacitance value for signal processing or filtering

• Voltage Rating: 50V, capable of handling standard voltage conditions without risk of dielectric breakdown

• Dielectric Material: Ceramic, known for its durability, stability, and high-frequency performance

• Package Type: Typically Disc-shaped with leads for through-hole mounting, compact for easy integration into PCBs

• Temperature Stability: Generally stable across a wide temperature range, ensuring reliable performance in everyday applications

• Low ESR (Equivalent Series Resistance): Provides efficient performance in high-frequency circuits

• Cost-Effective: Ceramic capacitors are affordable, making them ideal for a variety of low-cost electronic applications

Applications:

• Signal Coupling: Often used in coupling applications to pass AC signals while blocking DC components, which is crucial in audio circuits, RF circuits, and signal processing.

• Decoupling and Bypassing: Helps smooth out noise and stabilize voltage in power supply circuits, especially in digital electronics where stability is crucial.

• Oscillators: Used in timing and oscillator circuits, as it helps maintain stable oscillations or signal generation.

• Radio Frequency (RF) Circuits: Ideal for RF filtering, due to the capacitor’s ability to handle high frequencies with minimal signal loss.

• High-Frequency Applications: Suitable for circuits operating at frequencies ranging from audio to RF levels.

• Power Supply Filtering: Can be used for filtering out high-frequency noise in power supply lines, ensuring clean power for sensitive components.

How It Works: The 681 pF 50V Ceramic Disc Capacitor works by storing electrical charge between two conductive plates, separated by a ceramic dielectric material. This allows the capacitor to store and release electrical energy as needed in the circuit. The 681 pF value defines the amount of charge it can store and the frequency range at which it effectively filters or couples signals.

In signal coupling applications, the capacitor blocks DC signals while allowing AC signals to pass through, ensuring that the correct signal flows from one stage of a circuit to another. In decoupling or bypass applications, it smooths out voltage fluctuations or noise, providing stable power to sensitive components like microcontrollers or amplifiers. The ceramic dielectric material ensures the capacitor works efficiently at high frequencies, making it well-suited for RF circuits and oscillators.

Product Limitations:

• Voltage Rating: The 50V voltage rating limits the capacitor's use to circuits with voltages that do not exceed this value. Exceeding the voltage rating can lead to dielectric breakdown and failure of the capacitor.

• Temperature Sensitivity: While ceramic capacitors are generally stable, they can experience some variation in capacitance with temperature changes. This makes them less ideal for applications requiring extreme temperature stability.

• Tolerance: Ceramic disc capacitors generally have a tolerance of ±20% (which can vary depending on the specific type), meaning the actual capacitance may vary significantly from the nominal value. This is not suitable for circuits requiring high precision.

The 681 pF 50V Ceramic Disc Capacitor is a versatile, cost-effective, and reliable capacitor ideal for applications involving high-frequency signals, power supply stabilization, and general-purpose decoupling. Its compact design and ceramic construction make it an essential component for a wide range of electronic devices.
