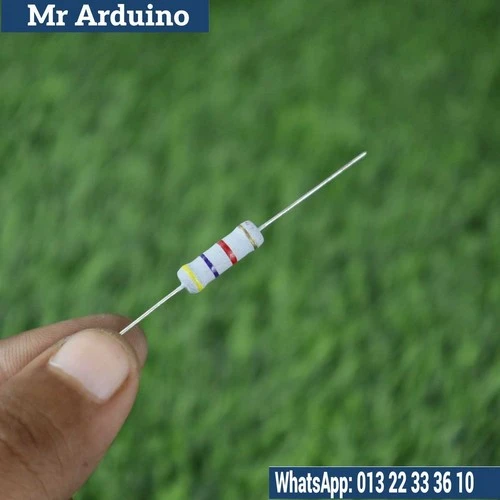

The 4.7K Ohm 2 Watt Resistor is a medium-value, high-power resistor designed for applications requiring reliable current regulation and power dissipation. With a resistance of 4.7K Ohms (4,700 Ohms) and a power rating of 2 Watts, this resistor is ideal for circuits that involve moderate power handling while maintaining stable current flow. It is frequently used in voltage dividers, signal processing, and sensor circuits, ensuring protection for sensitive components by limiting the flow of current.

How it Works: The 4.7K Ohm 2 Watt Resistor functions by opposing the flow of electrical current, creating a voltage drop according to Ohm’s Law (V = I * R). The 4.7K Ohm resistance ensures low current flow, making it ideal for high-impedance circuits where current regulation is critical. The 2-watt power rating enables the resistor to safely dissipate up to 2 watts of power as heat, allowing it to perform in medium-power applications without overheating or failure.

Specifications:

• Resistance: 4.7K Ohms (4,700 Ohms)

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for higher-power applications

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to step down voltages to lower, safe levels while dissipating moderate amounts of power.

• Signal Conditioning: Often used in analog signal conditioning circuits for filtering, amplifying, or shaping signals in audio, RF, and sensor applications.

• High-Impedance Circuits: Ideal for high-impedance applications like sensor interfaces or high-precision measurement systems that require stable current regulation.

• Current Limiting: Used in series with LEDs, transistors, or other components to limit current and protect sensitive parts of the circuit.

• Pull-up/Pull-down Resistors: Common in digital circuits where high resistance values are needed to pull a logic line to a known state.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Exceeding this power rating may result in overheating, damage to the resistor, or failure of the component.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 4.7K Ohms, which could affect precision in circuits requiring high accuracy.

The 4.7K Ohm 2 Watt Resistor is perfect for voltage dividers, signal conditioning, high-impedance circuits, and current-limiting applications in moderate-power systems.
