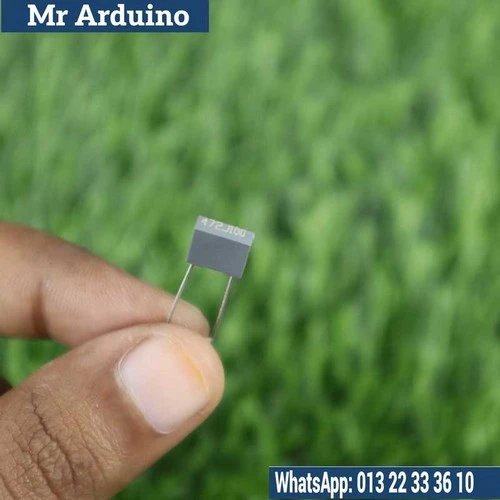

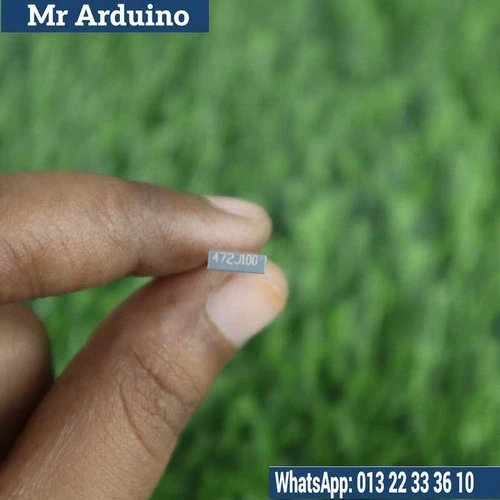

The 472J 100V Ceramic Capacitor is a general-purpose multilayer ceramic capacitor designed for a variety of electronic applications that require moderate voltage handling and stable capacitance. This capacitor has a nominal capacitance of 4.7nF (4700 pF) with a 100V voltage rating, making it suitable for use in many consumer electronics, signal processing, filtering, and decoupling applications. The "J" in the part number indicates the capacitor's tolerance of ±5%, which is typical for general-purpose capacitors used in non-critical applications.

Ceramic capacitors like this are known for their compact size, low cost, and reliable performance, particularly when used for signal coupling, voltage stabilization, and high-frequency applications.

Key Features:

• Capacitance: 4.7nF (4700 pF), suitable for moderate filtering and decoupling needs.

• Voltage Rating: 100V, capable of handling circuits that operate at voltages up to 100V.

• Tolerance: ±5%, meaning the actual capacitance can vary within 5% of the nominal value.

• Material: Made with ceramic dielectric, offering high stability, low cost, and small size.

• Temperature Range: Suitable for a typical temperature range of -25°C to +85°C, making it viable for many standard applications.

• Non-Polarized: This capacitor is non-polarized, meaning it can be installed in either direction, making it flexible for design integration.

• Compact Size: With a small package size, it fits well in space-constrained electronic devices.

• High Reliability: Known for its long-term stability and durability in normal operating conditions.

Applications:

• Filtering: The 472J ceramic capacitor is ideal for high-frequency filtering, especially in power supply systems where it helps to smooth out voltage fluctuations and reduce noise.

• Decoupling and Bypass Capacitor: Frequently used in decoupling circuits to stabilize power supply voltages and filter out high-frequency noise, preventing signal interference in sensitive circuits.

• Signal Coupling: Can be used for AC signal coupling in audio or communication systems, passing alternating signals while blocking DC.

• Timing and Oscillator Circuits: Often used in oscillators and timing circuits to set frequency or time delays in circuits like clocks and timers.

• Power Supply Circuits: Suitable for smoothing and stabilizing DC power outputs and filtering voltage ripples in power supplies.

• Consumer Electronics: Used in a wide range of consumer devices, such as television sets, radios, audio amplifiers, and electronic toys.

• Embedded Systems: Frequently used in embedded designs and Arduino projects, where stability and moderate capacitance are required for filtering or signal processing.

• Automotive Electronics: Can be utilized in automotive circuits for filtering noise or providing stable voltage regulation.

How It Works: The 472J 100V Ceramic Capacitor stores and releases energy in an electronic circuit through its electrostatic properties. Here's a brief overview of its functioning:

1. Energy Storage: When voltage is applied across the terminals of the capacitor, it stores electrical energy in the form of an electrostatic field between the ceramic dielectric material and the metal plates. This allows the capacitor to act as a local energy reservoir in the circuit.

2. Filtering: In filtering applications, the capacitor smooths out voltage spikes and high-frequency noise. It does this by charging and discharging when there are rapid changes in the voltage across its terminals. It allows AC signals to pass while blocking DC components.

3. Decoupling: As a decoupling capacitor, it works by stabilizing voltage in power supply systems, absorbing power surges or dips, and providing a stable DC voltage to sensitive components like microcontrollers or communication devices.

4. Capacitance Value: The 4.7nF capacitance is ideal for filtering high-frequency noise or smoothing low-frequency power supply variations in electronic systems.

5. Voltage Rating: The 100V rating ensures that the capacitor can safely operate at voltages up to 100V without the risk of breakdown or failure. If the voltage across the capacitor exceeds this limit, the dielectric material inside may break down, leading to failure.

6. Non-Polarized Design: The non-polarized nature of this ceramic capacitor allows it to be used in AC circuits, where current can flow in both directions, or in DC circuits without concern for orientation.

Product Limitations:

• Tolerance: The ±5% tolerance may be unsuitable for applications requiring precise capacitance values, especially where tight control over the capacitance is needed.

• Not Suitable for Very High-Frequency Applications: While ceramic capacitors perform well at moderate frequencies, they may not be the best choice for applications that require extremely high-frequency stability (e.g., RF circuits) due to their parasitic inductance and resonant behavior.

• Temperature Sensitivity: The capacitance of ceramic capacitors can change slightly with temperature, which may affect performance in extreme temperature environments.

• Microphonic Noise: Ceramic capacitors can sometimes generate microphonic noise (a sound-like signal caused by physical vibrations), which can be an issue in high-precision audio or sensitive circuits.

Conclusion: The 472J 100V Ceramic Capacitor is a reliable, low-cost, and compact solution for a variety of general-purpose electronic applications, including filtering, decoupling, signal coupling, and timing. With its 4.7nF capacitance and 100V voltage rating, it is perfect for most consumer electronics, power supply circuits, and embedded systems, where space and cost efficiency are important.

Due to its wide voltage rating, non-polarized design, and moderate capacitance, this capacitor can be used across many applications, making it an excellent choice for hobbyists, engineers, and developers building low-to-moderate complexity projects.
