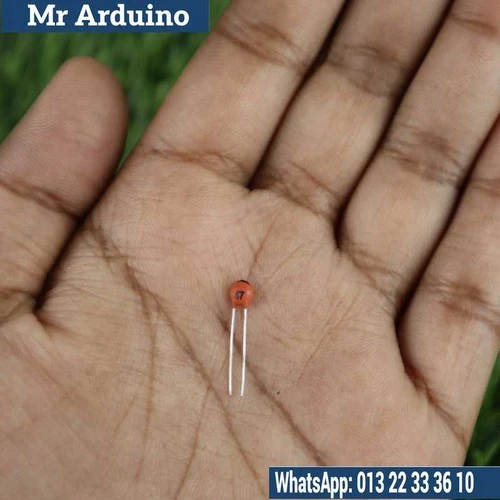

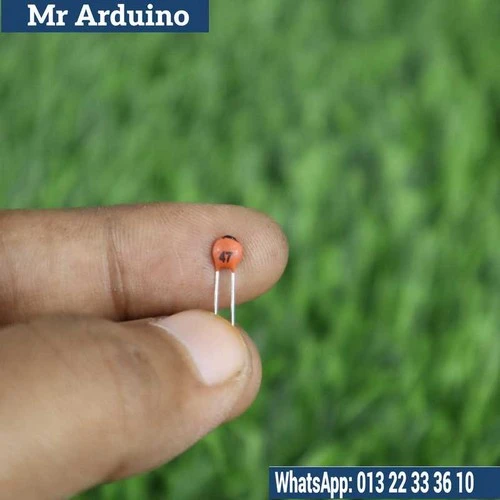

The 47 pF 50V Ceramic Disc Capacitor is a reliable and compact component used in various electronic circuits for filtering, decoupling, and signal coupling. The "47 pF" value indicates the capacitance is 47 picofarads (pF), and it is rated for a maximum voltage of 50V. This capacitor is well-suited for applications in low-voltage circuits, particularly where space is limited, and high-frequency performance is essential.

Constructed from durable ceramic material, the 47 pF Ceramic Disc Capacitor offers excellent electrical performance and reliability, making it ideal for both general-purpose and high-frequency circuits. Its disc shape allows for easy integration into electronic projects, with compatibility for both through-hole and surface-mount installations.

Key Features:

• Capacitance: 47 pF

• Voltage Rating: 50V

• Material: Ceramic

• Tolerance: Typically ±10% to ±20%

• Temperature Range: Suitable for most general-purpose electronics

• Compact disc shape ideal for various mounting options

• High insulation resistance for better signal filtering and decoupling

Applications:

• Signal coupling and decoupling in RF and high-frequency circuits

• Filtering in analog and digital systems

• Smoothing voltage in power supply circuits

• General-purpose applications in low-voltage electronic projects

• Noise suppression in communication and audio circuits

How It Works: The 47 pF Ceramic Disc Capacitor functions by storing electrical charge in an electric field between its ceramic plates. It allows AC signals to pass through while blocking DC signals, making it an essential component for signal coupling and filtering. In power circuits, the capacitor smooths out voltage fluctuations to ensure stable power delivery, and in RF circuits, it helps maintain signal integrity by reducing unwanted noise. It is also commonly used in timing circuits to set precise charge and discharge rates, affecting the overall frequency or delay of the circuit.

Product Limitations:

• Voltage Rating: The maximum voltage rating of 50V should not be exceeded, as this could damage the dielectric material and cause the capacitor to fail.

• Tolerance: The ±10% to ±20% tolerance range means that the actual capacitance may vary slightly from the nominal value, which could affect the performance in precision circuits.

• Temperature Sensitivity: Like other ceramic capacitors, its capacitance may fluctuate with temperature changes, so it may not be the best option for applications that require high-temperature stability.
