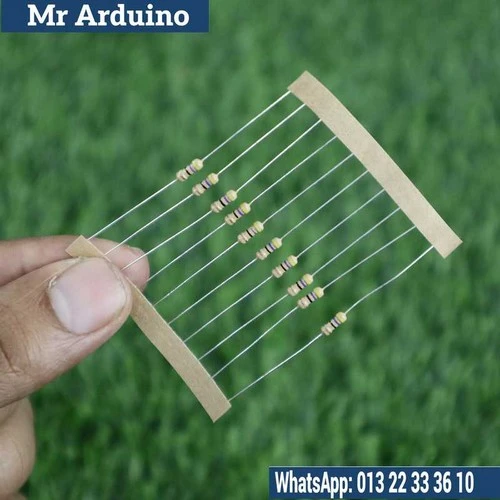

The 47 Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 47 ohms and a power rating of 0.25 watts (quarter-watt). It is commonly used in low-power electronic circuits where moderate resistance is needed for current-limiting, voltage dividing, or signal processing applications. Due to its quarter-watt power rating, it is perfect for circuits that don’t require significant heat dissipation, making it ideal for compact designs, breadboards, and PCBs.

The 47 ohm resistor is often used in DIY electronics, audio systems, and power regulation circuits, and it is a popular choice among hobbyists and engineers for projects that require a reliable yet low-power component.

Key Features:

• Resistance Value: 47 ohms, making it suitable for circuits where a moderate resistance is required to limit current or set voltage levels.
• Power Rating: 0.25W (quarter-watt), ideal for low-power applications where the resistor will not dissipate much heat.
• Tolerance: Typically comes with ±5% tolerance, though precision versions with ±1% tolerance are also available for more accuracy in certain applications.
• Compact Size: The quarter-watt form factor makes it small and easy to integrate into space-constrained designs, especially in breadboards or small PCBs.
• Material: Generally made from carbon film or metal oxide, ensuring durability, stability, and reliability over time.

How It Works: The 47 Ohm Resistor Quarter Watt 0.25W operates based on Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 47 ohms resistance determines the amount of current that will flow in the circuit when a certain voltage is applied.

For example, applying 5V across the 47 ohm resistor results in the following current flow:

$$I = \frac{V}{R} = \frac{5V}{47Ω} \approx 0.106 \, A = 106 \, mA$$

This means that with a 5V supply, the current flowing through the 47 ohm resistor will be approximately 106 milliamps (mA).

To ensure the resistor can handle this current without overheating, the 0.25W power rating limits the power it can dissipate. The power dissipated in the resistor is given by:

$$P = I^2 \times R$$

For the above example:

$$P = (0.106 \, A)^2 \times 47Ω \approx 0.25W$$

This shows that the 0.25W power rating is sufficient for this application without excessive heating.

Applications:

• Current Limiting: Used in LED circuits to limit the current flowing through the LED, preventing overcurrent damage and ensuring the LED operates within safe limits.
• Voltage Dividers: Frequently used in voltage divider circuits to create desired voltage levels for components like microcontrollers, sensors, and ADC (Analog-to-Digital Converters).
• Signal Conditioning: Often found in signal processing circuits to attenuate or filter signals to the appropriate level, especially in audio systems or sensor interfaces.
• RC Circuits: Can be used in Resistor-Capacitor (RC) circuits for controlling time constants, smoothing signals, or acting as low-pass filters.
• Power Supply Circuits: Employed in power regulation circuits, such as voltage regulators, to maintain a stable voltage and prevent fluctuations in the circuit.
• Impedance Matching: Used in audio systems to match impedances between components, improving signal transfer efficiency and reducing signal loss.
• Speaker Circuits: Can limit current to speakers in audio applications, ensuring the speaker receives the correct amount of power for optimal performance.

Limitations:

• Low Power Rating: The 0.25W power rating restricts the resistor to low-power applications. If your circuit requires more power dissipation, consider a higher power rating resistor (e.g., 0.5W, 1W).
• Current Handling: Suitable for low- to moderate-current circuits, but for high-current applications, a resistor with a lower resistance value and a higher power rating would be necessary to handle the increased current without overheating.
• Tolerance: The ±5% tolerance means there will be slight variations in the resistance value. If your circuit requires precise resistance, you may want to use a precision resistor with a ±1% tolerance.

The 47 Ohm Resistor Quarter Watt 0.25W is a versatile component for a wide range of low-power electronic circuits. Its moderate resistance value, compact size, and affordable price make it an excellent choice for both hobbyists and professionals. Whether you're working on a simple LED circuit, a voltage divider, or a more complex signal processing system, this resistor provides reliable performance without unnecessary power dissipation, ensuring your designs are both efficient and functional.
