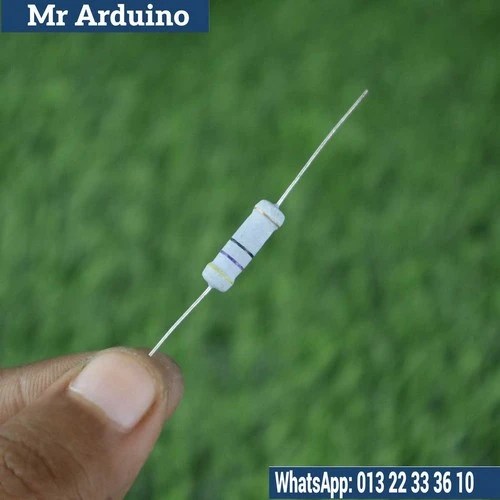

The 47 Ohm 2 Watt Resistor is a reliable and high-performance electronic component designed for moderate power applications that require precise current limiting and effective power dissipation. With a resistance value of 47 Ohms and a power rating of 2 Watts, this resistor is ideal for use in circuits where controlling current and ensuring safe power dissipation is important. It is commonly used in power supply systems, current-limiting applications, and signal processing circuits.

How it Works: The 47 Ohm 2 Watt Resistor works by resisting the flow of electrical current, creating a voltage drop as per Ohm's Law (V = I * R). The 47 Ohm resistance value limits the current in the circuit to a safe level, which helps prevent damage to other sensitive components. The 2-watt power rating allows it to dissipate up to 2 watts of electrical power as heat, making it suitable for applications that require higher power handling compared to lower-rated resistors.

Specifications:

• Resistance: 47 Ohms

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for moderate-power applications

Applications:

• Current Limiting: Used in series with LEDs, diodes, or transistors to control current flow and protect components from excessive current.

• Power Supply Circuits: Frequently used in power supply systems to manage current and ensure stable voltage levels.

• Voltage Dividers: Suitable for voltage divider circuits that need to step down high voltages while dissipating moderate power safely.

• Signal Conditioning: Commonly used in signal conditioning circuits to filter or adjust signal strength in both analog and audio applications.

• Audio Circuits: Ideal for audio amplification or impedance matching circuits, where controlling current flow and power dissipation is crucial.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Exceeding this power rating can lead to overheating, resistor failure, or damage to the circuit.

• Tolerance: With a ±5% tolerance, the actual resistance may slightly vary from the nominal value of 47 Ohms, which can affect performance in circuits requiring high precision.

The 47 Ohm 2 Watt Resistor is a reliable choice for current limiting, voltage dividers, power supply regulation, and signal conditioning applications in moderate-power circuits.
