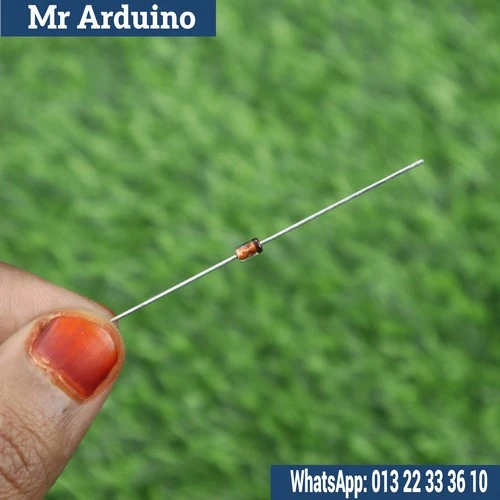

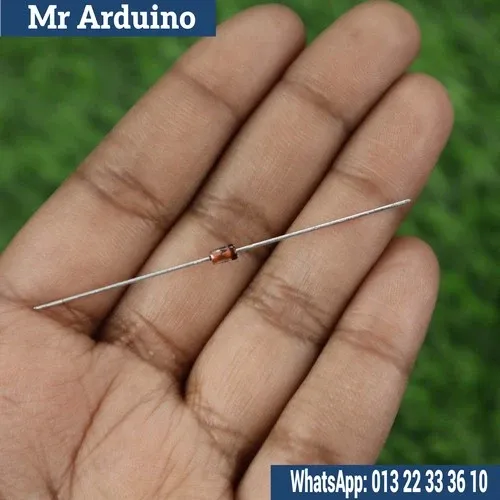

4148 0.5 Watt Zener Diode

(0) 0 Reviews 1 Orders 0 Wish listed

৳4

Quantity :

Total price :

(Tax : )

Overview
Reviews

The 1N4148 0.5 Watt Zener Diode is a fast-switching, general-purpose diode commonly used in signal processing, voltage regulation, and protection circuits. Known for its speed, reliability, and compact form factor (DO-35 package), this diode can handle up to 0.5 watts of power dissipation and is suitable for a wide range of low-current electronic applications. It is widely used in hobby electronics, DIY kits, and professional circuit designs.

How It Works:

When connected in reverse bias, the Zener diode maintains a stable voltage (depending on the Zener rating) across its terminals once the breakdown voltage is reached. The 1N4148, although technically a fast-switching signal diode, is sometimes referenced alongside small-signal Zener diodes due to its similar physical package and 0.5W power rating. However, note that the 1N4148 is not a Zener diode, but a standard silicon switching diode — it conducts in the forward direction and blocks in reverse, making it ideal for fast signal switching and protection.

Typical Use Cases:

Signal clipping and shaping
High-speed switching circuits
Logic-level shifting
Flyback diode in relay and motor circuits
ESD and reverse polarity protection

Limitations:

Not a true Zener diode — unsuitable for voltage regulation applications
Maximum power dissipation limited to 0.5W
Not suitable for high-voltage or high-current circuits
Requires proper heat dissipation for continuous use near power limits
