The 40A ATC Fuse Standard Blade Fuse DC is a high-current protection fuse designed for use in DC circuits. With a 40-amp rating, this fuse offers robust protection for electrical systems by interrupting the circuit in case of an overload or short circuit. The ATC (Automotive Type Cartridge) fuse is widely used in various automotive, marine, and industrial DC applications to protect electrical components and wiring from excessive current that could cause damage.

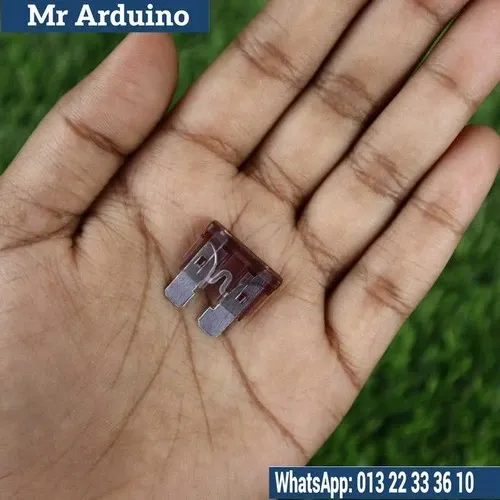

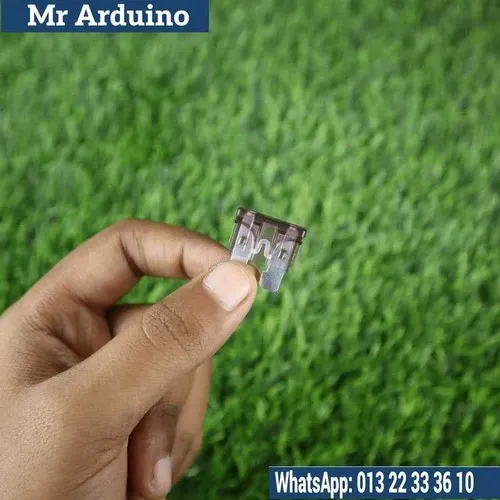

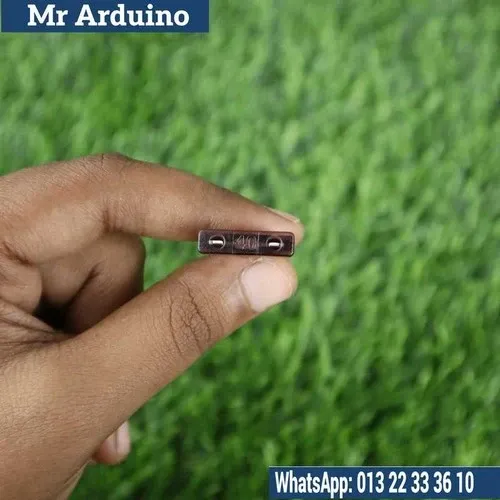

This blade fuse features a standard design with a plastic body and two metal prongs for easy insertion into fuse holders. The ATC fuse is known for its reliable performance and quick response time, making it an essential component for safeguarding DC circuits from potential damage due to overcurrent situations.

Key Features:

• Current Rating: 40A rated for use in DC circuits, offering overcurrent protection in automotive, RV, and industrial applications.

• Blade Design: Features a standard blade-style design that fits securely into fuse holders, ensuring easy installation and replacement.

• Type: ATC (Automotive Type Cartridge) fuse, commonly used in automotive electrical systems and other DC-powered devices.

• Fast Acting: Provides quick response to overcurrent conditions, preventing damage to sensitive electrical components and wiring.

• Durability: Designed to withstand the mechanical stress and vibration typical in automotive or industrial environments.

• Voltage Rating: Typically rated for use in DC circuits with a voltage of up to 32V.

• Color-Coded: Usually comes in a specific color (typically yellow) to easily identify the 40A rating, simplifying fuse replacement and identification.

Applications:

• Automotive Electrical Systems: Protects circuits in cars, trucks, motorcycles, and RV electrical systems by preventing overcurrent damage to sensitive components such as lights, fans, and audio systems.

• Marine Electrical Circuits: Commonly used to safeguard marine electronics such as navigation lights, radios, and power systems on boats and yachts.

• Battery-Powered Systems: Protects DC circuits in battery-operated devices, ensuring safe operation in solar power systems, electric vehicles, and battery banks.

• Power Distribution Panels: Used in DC power distribution systems to protect cables and equipment from short circuits or overloads.

• Industrial Equipment: Often used in DC-powered machinery and electrical systems to safeguard wiring and components from current surges or failures.

How It Works: The 40A ATC Blade Fuse is designed to protect a circuit by breaking the connection if the current exceeds the 40-amp threshold. It contains a metal wire or strip inside the fuse body, which is designed to melt or break when the current flowing through the circuit exceeds the fuse’s rating for a certain period of time. When this happens, the circuit is broken, and the current flow is interrupted, preventing potential damage to the system.

• Under normal conditions, the current flows through the fuse without any interruption.

• If an overcurrent occurs (e.g., due to a short circuit or excessive load), the fuse will heat up. Once the current exceeds the 40A rating, the metal strip inside the fuse melts, causing the fuse to "blow" or open the circuit.

• Once the fuse is blown, the circuit is no longer complete, and power to the system is cut off, protecting sensitive components from electrical damage.

After the fuse blows, it needs to be replaced with a new fuse of the same rating to restore normal operation.

Product Limitations:

• Current Rating: The 40A rating limits its application to circuits that do not exceed this current value. Exceeding the current rating will cause the fuse to blow, interrupting power to the circuit.

• Voltage Rating: The fuse is typically rated for use in 32V DC circuits. Using it in circuits with higher voltage could result in the fuse not operating correctly or failing to protect the circuit.

• One-Time Use: Once the fuse has blown, it must be replaced. Fuses are non-resettable, so you cannot reuse them after they have been activated.

• Response Time: While the fuse provides fast protection, it may not be suitable for circuits where quick, dynamic fluctuations in current are common, as fuses are designed to react to sustained overcurrent situations rather than short transient spikes.

The 40A ATC Fuse Standard Blade Fuse DC is an essential component for protecting DC circuits in a wide variety of applications, including automotive, marine, and industrial systems. Its reliable performance, easy installation, and quick response to overloads make it a must-have for maintaining the safety and longevity of electrical systems.
