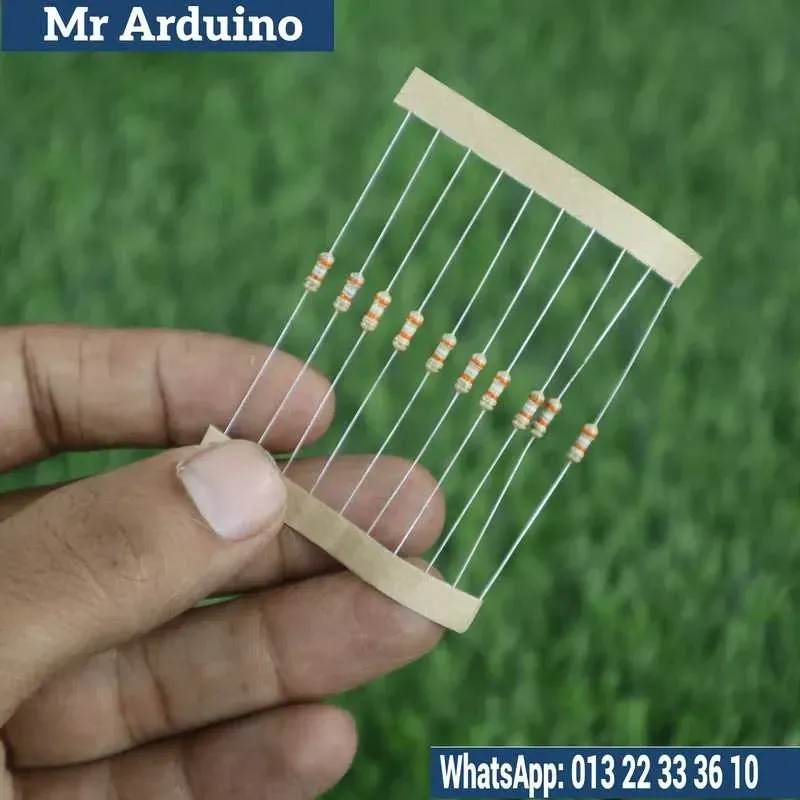

The 39K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 39,000 ohms (39K ohms) and a power rating of 0.25 watts (quarter-watt). It is ideal for use in low-power electronic circuits, where precise resistance is needed to control current flow, divide voltages, or modify signals. This resistor is commonly used in voltage dividers, signal processing, and sensor interfaces, as well as DIY projects and hobby electronics.

With its compact size and quarter-watt power rating, it is designed to perform well in low-power applications without generating excessive heat. The 39K ohm resistor provides stability and reliability for projects where moderate resistance is necessary without significant power dissipation.

Key Features:

• Resistance Value: 39K ohms, suitable for applications that require higher resistance, such as voltage dividers or low-current circuits.
• Power Rating: 0.25W (quarter-watt), designed for low-power applications where minimal heat generation is required.
• Tolerance: Typically ±5% tolerance, but precision versions with ±1% tolerance may be available for applications requiring more accurate resistance values.
• Compact Size: The quarter-watt size is perfect for breadboards, PCBs, and other space-constrained designs.
• Material: Usually made from carbon film or metal oxide, providing durability, stability, and reliability in various environments.

How It Works: The 39K Ohm Resistor Quarter Watt 0.25W works by restricting the flow of electrical current in a circuit. According to Ohm’s Law (V = IR), where V is the voltage, I is the current, and R is the resistance, the 39,000 ohms value of the resistor determines the current flow for a given voltage.

For example, if 5V is applied across the 39K ohm resistor, the current flow can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{39,000Ω} \approx 0.000128 \, A = 0.128 \, mA$$

This means, with a 5V supply, the current flowing through the 39K ohm resistor will be approximately 0.128 milliamps (mA).

To calculate the power dissipated in the resistor, we can use the formula:

$$P = I^2 \times R$$

Using the calculated current:

$$P = (0.000128 \, A)^2 \times 39,000Ω \approx 0.00025W = 0.25W$$

This confirms that the 0.25W power rating is suitable for this resistor under the given voltage and current conditions.

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to create specific voltage levels for components like microcontrollers, sensors, or ADC (Analog-to-Digital Converters).
• Current Limiting: Ideal for use in low-current circuits, such as LEDs or sensitive sensors, to limit the current and prevent damage.
• Signal Processing: Used in signal conditioning circuits to attenuate or filter signals in applications like audio circuits or sensor interfaces.
• RC Circuits: Employed in Resistor-Capacitor (RC) circuits for controlling the time constant or filtering specific frequencies in analog signal processing.
• Impedance Matching: Used in audio circuits to ensure efficient signal transfer between components, reducing signal loss and ensuring proper matching between parts.
• Power Supply Regulation: Used in voltage regulation circuits to stabilize the voltage supply in low-power devices.
• Audio Applications: Common in audio circuits for controlling signal levels or protecting other components from excessive current.

Limitations:

• Low Power Rating: The 0.25W power rating restricts its use to low-power applications. If your circuit requires higher power dissipation, a higher-rated resistor (e.g., 0.5W or 1W) should be considered.
• Current Handling: This resistor is suitable for low-current circuits. For high-current circuits, a lower resistance value and a higher power rating may be required to prevent overheating.
• Tolerance: The ±5% tolerance means there may be slight variations in the actual resistance. For high-precision applications, you may need a precision resistor with a ±1% tolerance.

The 39K Ohm Resistor Quarter Watt 0.25W is an essential component for low-power electronic circuits requiring moderate resistance. Its affordable price, compact size, and reliable performance make it an excellent choice for voltage dividers, current limiting, and signal conditioning in various electronic applications. Whether you are building simple voltage regulators or more complex sensor interfaces, this resistor provides the necessary stability and precision for your projects.
