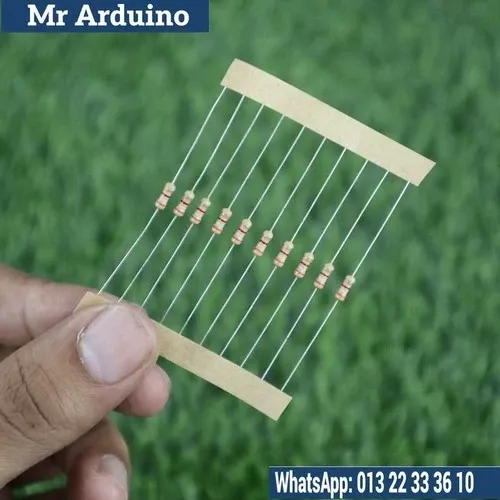

The 3.9K Ohm Resistor Quarter Watt 0.25W is a mid-range resistance component with a resistance value of 3.9 kiloohms (KΩ) and a power rating of 0.25 watts (quarter-watt). This resistor is commonly used in a variety of low-to-moderate power applications such as voltage dividers, signal filtering, and current limiting. With a resistance value of 3.9K ohms, it is suitable for precision current regulation and voltage control in circuits that require moderate resistance without generating excessive power dissipation. The 0.25W power rating ensures it can safely handle typical currents and voltage levels without overheating or failing.

This resistor is perfect for use in DIY electronics, sensor circuits, audio equipment, and signal processing applications, where it helps in controlling and regulating current and voltage, ensuring reliable and stable performance in various circuit designs.

Key Features:

• Resistance Value: 3.9K ohms (3,900 ohms), ideal for applications where moderate resistance is required to control current, divide voltages, or attenuate signals.
• Power Rating: 0.25W (quarter-watt), perfect for low-to-moderate power circuits, ensuring safe dissipation of power without risk of overheating.
• Tolerance: Typically available in ±5% tolerance (standard) or ±1% tolerance (high precision), depending on the specific requirements of the circuit.
• Compact Size: As a quarter-watt resistor, it is small and fits easily into compact circuit designs, making it ideal for projects with limited space.
• Material: Commonly made from carbon film or metal oxide, offering consistent resistance and reliable performance over time.

How It Works: The 3.9K Ohm Resistor Quarter Watt 0.25W limits the flow of current through a circuit, using the principles of Ohm’s Law (V = IR), where the voltage (V) across the resistor is the product of the current (I) flowing through it and the resistance (R) of the resistor. With a higher resistance value like 3.9K ohms, the current passing through the resistor will be smaller compared to lower resistance resistors, making it suitable for applications requiring controlled current flow.

For example, if a 5V voltage is applied across the 3.9K ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{3.9KΩ} = 1.28 \, mA$$

This shows that with a 5V supply, only 1.28 milliamps (mA) will flow through the 3.9K ohm resistor. The resistor helps control this current, making it ideal for sensitive components that need limited current flow.

The 0.25W power rating ensures that the resistor will dissipate no more than 0.25 watts of power in typical use, preventing overheating. If the current through the resistor becomes too high or the power dissipated exceeds the 0.25W, it may overheat, which can lead to failure.

Applications:

• Voltage Dividers: The 3.9K ohm resistor is often used in voltage divider circuits to create specific voltage levels for other components, such as sensors, LEDs, and microcontrollers. It allows for precise control of voltage drop across the circuit.
• Signal Processing: In signal processing circuits, this resistor can be used for attenuating or filtering signals. It helps reduce signal strength to ensure compatibility with other components or stages of the circuit.
• Current Limiting: This resistor can also be used for limiting current in circuits that need to protect sensitive components such as LEDs, transistors, or integrated circuits (ICs).
• Biasing Circuits: Common in transistor biasing or op-amp circuits, where precise resistance is required to establish proper operating points for active components.
• Audio Equipment: Often used in audio circuits, this resistor helps in controlling impedance and signal levels, as well as for attenuating audio signals to desired levels for speakers or amplifiers.
• Sensor Circuits: In sensor applications, it can help regulate current and filter voltage to maintain accurate measurements or act as a part of a sensor conditioning circuit.
• LED Protection: Commonly used in LED circuits to limit current and ensure that LEDs receive the appropriate amount of power to function properly without damaging them.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-to-moderate power circuits. It is not suitable for high-current or high-power applications that require more than 0.25W of power dissipation.
• Current Handling: While it is great for moderate current applications, the 3.9K ohm resistance might not be ideal for circuits that require higher current flows, as it will significantly limit the current.
• Tolerance Variability: The ±5% tolerance means that the actual resistance could vary slightly, affecting accuracy in precision circuits. For higher accuracy, resistors with tighter tolerances (±1%) may be needed.

The 3.9K Ohm Resistor Quarter Watt 0.25W is a versatile component used in a wide range of electronic circuits. Its moderate resistance value and low power rating make it ideal for use in voltage dividers, signal attenuation, current limiting, and biasing circuits. It is an excellent choice for DIY electronics projects, audio equipment, and sensor applications, ensuring safe, stable, and precise circuit operation.
