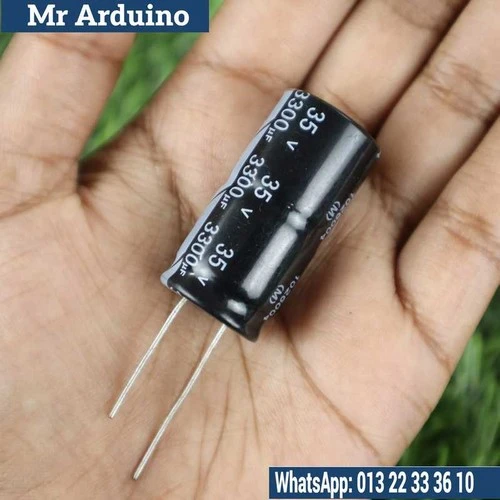

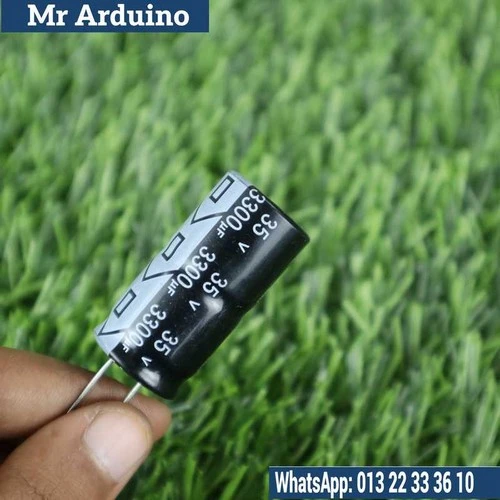

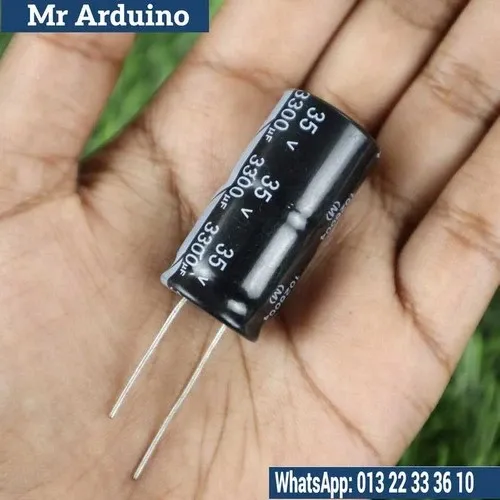

The 35V 3300uF Electrolytic Capacitor is a high-capacitance, electrolytic capacitor designed for use in electronic circuits requiring significant energy storage and voltage regulation. With a capacitance of 3300µF and a rated voltage of 35V, this capacitor is ideal for applications in power supplies, voltage regulation, filtering, and energy storage, particularly in circuits that require moderate to high capacitance values and a voltage rating of up to 35V.

As an electrolytic capacitor, it has a polarized design, meaning it must be installed with the correct polarity (positive lead to the higher voltage side) to avoid malfunction, leakage, or failure.

Key Features:

• Capacitance Value: 3300µF, ideal for energy storage and smoothing applications that require high capacitance for stable voltage supply.

• Rated Voltage: 35V DC, designed for circuits with voltage up to 35V.

• Polarized Design: Correct polarity must be maintained to ensure proper functionality. The positive terminal should connect to the higher voltage side of the circuit.

• Compact Size: Despite its high capacitance, this capacitor remains small enough for use in space-limited applications.

• Long Lifespan: Designed for durability and long-term use, even under continuous operation, ensuring stable performance in high-capacitance applications.

How It Works: The 35V 3300uF Electrolytic Capacitor stores electrical energy in the form of an electrostatic field between its two electrodes, separated by an electrolytic dielectric. When voltage is applied across the terminals, the capacitor charges and stores energy. It discharges this energy when needed to smooth out voltage fluctuations, stabilize power, or filter out noise from the circuit.

In power supply circuits, this capacitor helps to smooth out voltage ripple, providing stable and consistent DC output. In energy storage, it helps buffer power during fluctuations, ensuring steady performance of the circuit.

Applications:

• Power Supply Filtering: Widely used in DC power supplies to filter out ripples, smooth voltage, and ensure steady DC output, especially in switch-mode power supplies (SMPS).

• Voltage Regulation: Essential in DC-DC converters and voltage regulator circuits where voltage stability and regulation are crucial.

• Energy Storage: Provides large energy storage capacity for circuits that need to store significant amounts of energy, like in motor drivers or capacitor banks for energy release.

• Audio Systems: Commonly used in audio applications to smooth power delivery and improve the performance of audio amplifiers or other audio equipment.

• Signal Filtering: Used in signal processing circuits to remove unwanted high-frequency noise or smooth signal fluctuations.

Specifications:

• Capacitance: 3300µF (microfarads)

• Rated Voltage: 35V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify datasheet for specific range)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized Design: Correct polarity is crucial. Reversing the polarity may cause the capacitor to leak, rupture, or fail.

• Voltage Rating: The capacitor has a maximum rated voltage of 35V. Applying a higher voltage will damage the capacitor and could lead to failure.

• Lifespan: Electrolytic capacitors degrade over time, especially under high voltage or temperature conditions. Overuse or operating in harsh environments may reduce its effective lifespan.

• Size: While relatively large compared to smaller capacitors, this capacitor's size may be unsuitable for applications with strict space constraints.
