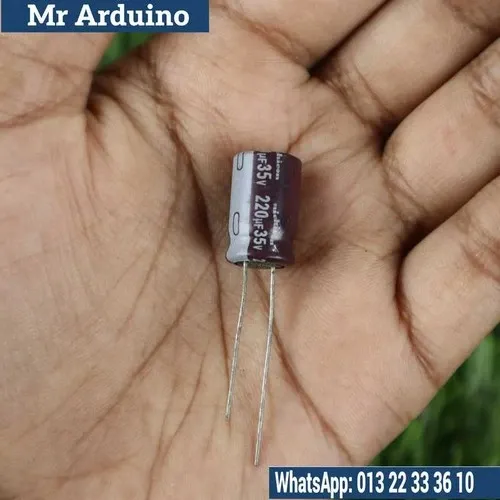

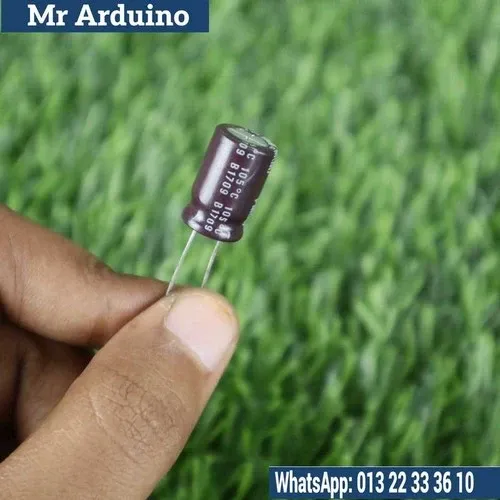

The 35V 220uF Electrolytic Capacitor is a high-capacitance component designed to store electrical energy, providing essential functions in various electronic circuits, including power filtering, voltage stabilization, and signal coupling. With a capacitance value of 220uF and a rated voltage of 35V, this capacitor is widely used in applications that require reliable performance for energy storage and smooth DC voltage regulation.

Being an electrolytic capacitor, it has a polarized design, which means it must be connected correctly within a circuit, with the positive lead attached to the higher voltage side. The capacitor features a large capacitance in a relatively compact size, making it ideal for use in a variety of power supply systems, audio equipment, and motor driver circuits.

Key Features:

• Capacitance Value: 220uF, perfect for applications requiring moderate energy storage and voltage smoothing.

• Rated Voltage: 35V DC, suitable for circuits where the applied voltage will not exceed 35V.

• Polarized Design: Electrolytic capacitors are polarized, so it is essential to connect them in the correct orientation (positive to higher voltage).

• Compact Size: Despite its large capacitance value, it maintains a relatively small physical size, making it suitable for most circuit board designs.

• Durability: Designed for long-lasting use, capable of handling moderate voltage fluctuations and demanding conditions.

How It Works: The 35V 220uF Electrolytic Capacitor works by storing energy in an electric field between two electrodes, one of which is coated with an oxide layer that acts as the dielectric. When voltage is applied to the capacitor, it charges up to the applied voltage, and when needed, it discharges to release stored energy.

In power supply circuits, the capacitor plays a critical role in smoothing out the ripple voltage, ensuring that the output voltage is stable and consistent. It is also used in filtering applications to block certain frequencies in audio and signal processing systems. The 220uF capacitance allows it to store enough charge for moderate voltage fluctuations, making it ideal for power stabilization.

Applications:

• Power Supply Circuits: Used to filter out noise and ripple from DC power supplies, providing a smoother voltage output to sensitive components.

• Voltage Regulation: Stabilizes voltage levels in circuits with fluctuating power sources, such as in DC-DC converters and voltage regulators.

• Audio Systems: Filters DC components in audio circuits, ensuring that only AC signals pass through, which is critical in amplifiers, tone controls, and audio filters.

• Signal Coupling: Used in signal coupling applications, ensuring that DC signals are blocked while AC signals are passed.

• Motor Drivers: Helps smooth voltage and reduce ripple in motor driver circuits.

Specifications:

• Capacitance: 220µF (microfarads)

• Rated Voltage: 35V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify specific temperature range on datasheet)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on the specific variant)

• Lead Spacing: Typically 5mm or 7.5mm (depending on the size)

Limitations:

• Polarized Nature: Correct polarity must be observed when connecting the capacitor to avoid damage and failure. Reversing the polarity can result in capacitor leakage or rupture.

• Voltage Rating: Ensure that the voltage applied does not exceed the 35V rating, as this may damage the capacitor and affect circuit performance.

• Limited Lifespan: Electrolytic capacitors tend to degrade over time, especially at higher temperatures, which may lead to increased leakage current and reduced capacitance.

• Size Constraints: Though compact, the capacitor may be too large for ultra-tight designs or certain space-constrained applications.
