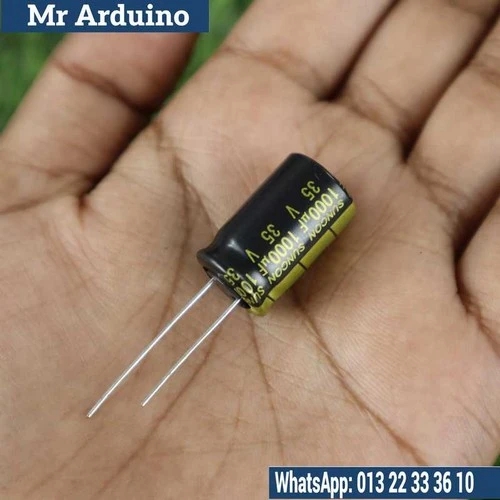

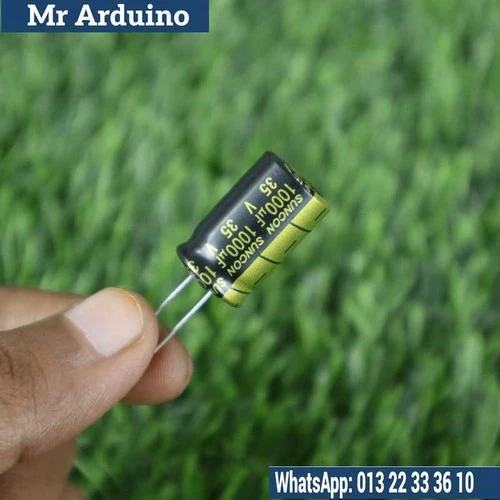

The 35V 1000uF Electrolytic Capacitor is a high-capacitance, polarized electrolytic capacitor designed to provide energy storage, voltage smoothing, and regulation in electronic circuits. With a capacitance of 1000µF and a rated voltage of 35V, this capacitor is ideal for use in power supplies, audio equipment, motor drivers, and other circuits that require moderate capacitance and high voltage tolerance.

Being polarized, this capacitor must be installed with correct polarity (positive lead to the higher voltage side) to avoid damage, leakage, or failure.

Key Features:

• Capacitance Value: 1000µF, suitable for medium-to-high energy storage needs and voltage smoothing applications.

• Rated Voltage: 35V DC, providing stable performance for circuits operating with voltages up to 35V.

• Polarized Design: Must be installed with the correct polarity (positive lead to the higher voltage side) for safe and effective operation.

• Compact Form Factor: Despite its high capacitance, the capacitor maintains a relatively compact size, making it versatile for various applications.

• Durability: Designed for long-lasting, reliable operation in a wide range of electronic circuits.

How It Works: The 35V 1000uF Electrolytic Capacitor stores electrical energy in the form of an electrostatic field between its two electrodes, separated by an electrolytic dielectric. When voltage is applied across the terminals, the capacitor charges and stores energy. The stored energy can be released when necessary to stabilize voltage, smooth ripple, or filter unwanted frequencies.

In power supply circuits, the capacitor helps to smooth out voltage fluctuations (also known as ripple), ensuring that the output voltage remains stable and consistent. In motor drivers and audio circuits, it can help smooth out power delivery, reducing distortion and improving performance.

Applications:

• Power Supply Filtering: Used in DC power supplies to reduce ripple and smooth the output voltage, ensuring stable DC power for sensitive electronics.

• Voltage Regulation: Ideal for use in DC-DC converters or voltage regulator circuits to maintain consistent voltage levels in power-sensitive applications.

• Audio Equipment: Commonly found in audio amplifiers and audio systems for filtering and ensuring smooth, stable power delivery, improving sound quality.

• Energy Storage: Used for energy buffering in applications that require large but short bursts of energy, like motor drivers or power inverters.

• Signal Filtering: Helps to eliminate high-frequency noise in signal processing circuits, ensuring that only the desired signal passes through.

Specifications:

• Capacitance: 1000µF (microfarads)

• Rated Voltage: 35V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify datasheet for specific range)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized Design: Correct polarity is essential. Reversing the polarity could cause leakage, rupture, or catastrophic failure.

• Voltage Rating: The capacitor is rated for 35V DC maximum. Exceeding this voltage could damage the capacitor and the circuit.

• Lifespan: Electrolytic capacitors degrade over time, especially when exposed to high temperatures and voltages. This could lead to a loss of capacitance and an increase in leakage current.

• Size: This capacitor is larger than other low-capacitance capacitors, so it may not be suitable for very tight spaces.
