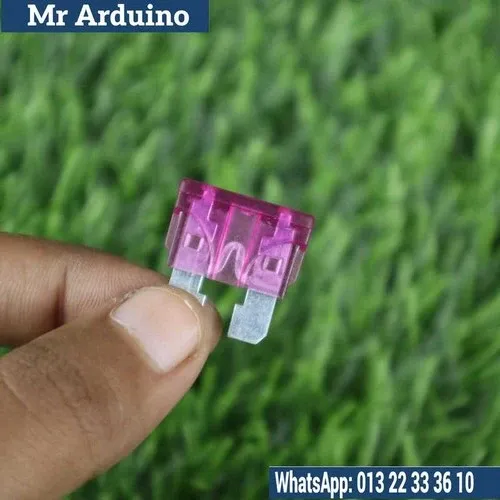

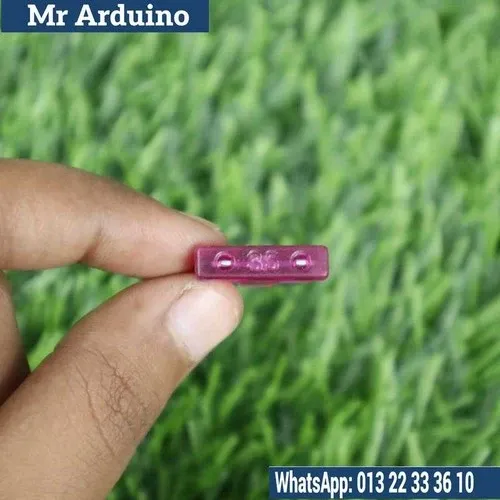

The 35A ATC Fuse Standard Blade Fuse DC is an essential overcurrent protection device designed for use in DC circuits. This ATC (Automotive Type Cartridge) blade fuse is rated for 35 amperes, making it ideal for automotive, marine, industrial, and other DC-powered applications. The fuse provides reliable and quick protection by disconnecting the power in case of an overload or short circuit, preventing damage to sensitive electrical components, wiring, and devices.

This standard blade fuse features a plastic housing with metal contacts that fit securely into fuse holders, ensuring easy installation and replacement. It is widely used in various DC electrical systems such as vehicles, boats, and solar-powered systems, where high-current protection is required.

Key Features:

• Current Rating: 35A, suitable for circuits with 35 amp current flow in DC applications.

• Blade Design: The fuse features a standard blade-style design with two metal prongs for easy insertion into fuse holders, providing secure and reliable connections.

• Type: ATC (Automotive Type Cartridge) fuse, designed for use in automotive, marine, and DC-powered systems.

• Fast Acting: Provides quick response to overcurrent conditions, preventing damage to electrical components.

• Durability: Made from high-quality materials that can withstand vibration, heat, and mechanical stress, making it suitable for use in harsh environments.

• Voltage Rating: Typically rated for 32V DC, perfect for use in DC electrical systems.

• Color-Coded: Typically blue in color, making it easy to identify the 35A rating for quick replacement and reference.

Applications:

• Automotive Electrical Systems: Protects circuits in cars, trucks, motorcycles, RV systems, and electric vehicles to prevent overcurrent damage to components like lights, fans, and audio equipment.

• Marine Electronics: Common in boats and yachts to protect marine electronics such as GPS systems, radios, and power circuits from overcurrent events.

• Battery-Powered Systems: Used in solar power systems, electric vehicles, and other battery-operated devices to safeguard the battery and electrical components from overcurrent situations.

• Power Distribution: Ideal for DC power distribution panels in industrial or residential applications to protect circuits and wiring from overloads or short circuits.

• Industrial Applications: Suitable for industrial equipment, including DC-powered machinery and systems, ensuring safety in demanding environments.

How It Works: The 35A ATC Blade Fuse operates by protecting a circuit from overcurrent conditions. The fuse contains a metal strip inside its body that is designed to melt when the current exceeds the fuse’s rated value (35A). When the current is within normal limits, the metal strip remains intact, and power flows through the circuit. However, when an overcurrent situation occurs, such as during a short circuit or if the load exceeds the rated capacity, the strip heats up and melts, interrupting the circuit and preventing further damage to the electrical system.

• Under normal conditions, the current flows through the fuse and into the circuit without disruption.

• When an overcurrent occurs (for instance, if the current exceeds 35A), the metal strip inside the fuse melts due to the excessive heat caused by the high current.

• This action disconnects the circuit, cutting off power and protecting the rest of the system from damage.

• Once the fuse is blown, it must be replaced with a new fuse of the same rating to restore the circuit to normal operation.

Product Limitations:

• Current Rating: The 35A fuse is designed to handle currents up to 35 amps. If the current exceeds this rating, the fuse will blow. It is essential to use the correct fuse for each application to avoid unnecessary interruptions.

• Voltage Rating: This fuse is typically rated for use in 32V DC circuits. Using it in higher voltage systems may compromise the fuse’s effectiveness and safety.

• Single-Use: Once the fuse has blown due to an overcurrent event, it cannot be reset. It must be replaced with a new fuse to restore normal circuit operation.

• Response to Transients: The fuse is designed to respond to sustained overcurrents, but it may not react quickly to very short, transient spikes in current.

The 35A ATC Fuse Standard Blade Fuse DC provides reliable protection for DC circuits, ensuring that electrical components and wiring remain safe from overloads and short circuits. Its easy installation, quick response time, and robust design make it a key component for automotive, marine, and industrial applications.
