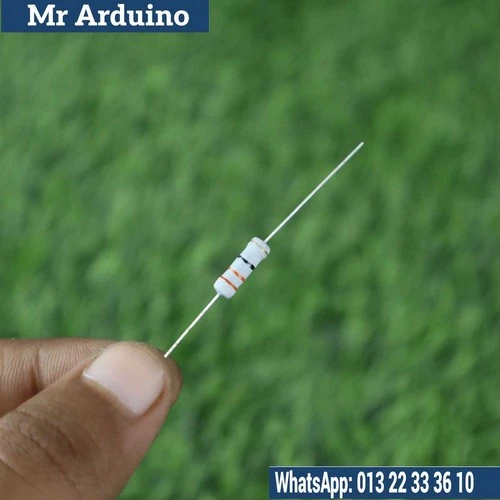

The 330 Ohm 2 Watt Resistor is a high-power resistor designed for use in a wide range of electronic applications that require moderate power dissipation. With a resistance of 330 Ohms and a power rating of 2 Watts, this resistor is perfect for voltage regulation, signal conditioning, current limiting, and other power-related tasks. It ensures reliable performance in circuits where controlling or limiting the current flow is necessary while effectively dissipating the power generated without overheating.

How it Works: The 330 Ohm 2 Watt Resistor works by opposing the flow of electrical current, creating a voltage drop as per Ohm’s Law (V = I * R). The 330 Ohm resistance value allows for moderate current flow, and its 2-watt power rating ensures that the resistor can safely dissipate up to 2 watts of electrical power as heat, making it suitable for medium-power applications that require both efficient current regulation and reliable heat management.

Specifications:

• Resistance: 330 Ohms

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for medium-power applications

Applications:

• Voltage Dividers: Often used in voltage divider circuits where a moderate resistance value is needed to divide voltages while ensuring safe power dissipation.

• Signal Conditioning: Ideal for use in analog signal conditioning circuits where precise current control is needed, such as in audio processing, RF circuits, and sensor interfaces.

• Current Limiting: Employed in series with components like LEDs, transistors, or motors to limit the current and protect components from excessive current flow that could damage them.

• Power Supply Circuits: Used in power supply circuits to regulate current and ensure the safe operation of sensitive components.

• Pull-up/Pull-down Resistors: Commonly used in digital circuits, where they help maintain a stable logic level on a pin or wire by pulling the signal to a known state.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Overloading the resistor can lead to excessive heating, failure, or potential damage to surrounding components.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 330 Ohms, which may impact circuit precision in some applications.

The 330 Ohm 2 Watt Resistor is an essential component for current limiting, signal conditioning, and voltage regulation in medium-power systems. It ensures effective power dissipation while maintaining the stability and protection of your circuit.
