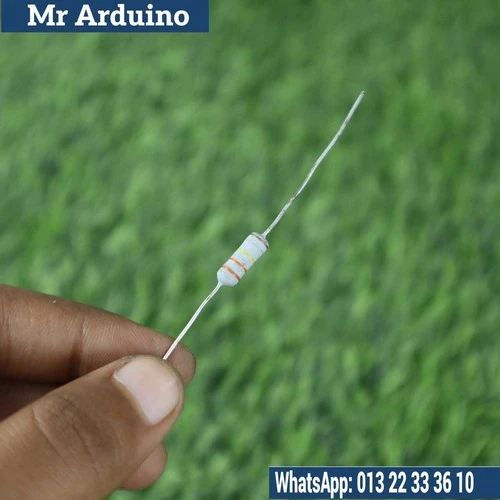

The 330 Ohm 1 Watt Resistor is a versatile and robust electronic component designed to control current flow in various circuits while efficiently dissipating power. With a resistance of 330 Ohms and a power rating of 1 Watt, this resistor is suitable for applications where moderate current control and heat dissipation are required. It is commonly used in power supplies, current-limiting circuits, and voltage divider networks.

How it Works: The 330 Ohm 1 Watt Resistor functions by limiting the amount of current flowing through a circuit, causing a voltage drop according to Ohm's Law (V = I * R). The 330 Ohm resistance value helps regulate the current, ensuring that components such as LEDs and transistors are protected from excess current. The 1-watt power rating ensures that the resistor can safely dissipate up to 1 watt of electrical power as heat, making it appropriate for circuits with moderate power requirements.

Specifications:

• Resistance: 330 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size for moderate power applications

Applications:

• Current Limiting: Frequently used in series with LEDs, diodes, or other sensitive components to limit the current and protect against overcurrent.

• Voltage Divider: Commonly used in voltage divider circuits to generate specific voltage levels from higher voltages.

• Power Supplies: Ideal for controlling current and ensuring safe voltage levels in power supply circuits.

• Signal Conditioning: Employed in analog circuits to shape, filter, or condition signals by controlling the current flow.

• Audio Circuits: Often used in audio amplifiers to adjust impedance and manage power dissipation.

Limitations:

• Power Rating: This resistor is rated for a maximum power dissipation of 1 watt. Exceeding this rating can cause the resistor to overheat, leading to potential damage.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value, which could impact precision in circuits requiring exact values.

Ideal for moderate power applications, current limiting, voltage dividers, and signal conditioning, the 330 Ohm 1 Watt Resistor is a reliable choice for many electronic projects.
