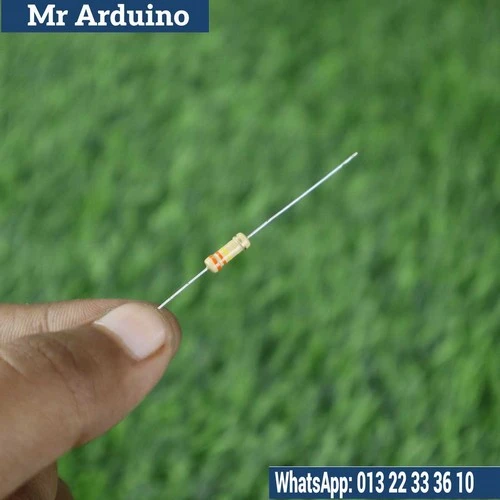

The 330 Ohm 0.5 Watt Resistor is a reliable electronic component designed for use in circuits that require resistance to control current flow and protect sensitive components. With a resistance of 330 Ohms and a power rating of 0.5 Watt, this resistor is perfect for low-power applications where precision and safe current limiting are essential. It is often used in various electronic projects, especially for hobbyists and engineers working with low-power circuits.

How it Works: The 330 Ohm 0.5 Watt Resistor restricts the flow of current in a circuit, creating a voltage drop according to Ohm's Law (V = I * R). By limiting the current, it helps protect sensitive components like LEDs and transistors from excessive current. The 0.5-watt power rating means that the resistor can safely dissipate up to 0.5 watts of electrical power as heat. It’s important not to exceed this power rating to avoid overheating and damage to the resistor.

Specifications:

• Resistance: 330 Ohms

• Power Rating: 0.5 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1/4-watt size suitable for low-power applications

Applications:

• Current Limiting: Used in series with LEDs or other sensitive components to limit the current and prevent damage.

• Voltage Divider: Commonly used in voltage divider circuits to create specific voltage levels for different parts of a circuit.

• Signal Processing: Helps in reducing signal noise or conditioning signals in audio and analog circuits.

• Basic Circuit Protection: Essential for protecting components in low-power applications by controlling current flow.

• Low Power Circuits: Ideal for circuits that do not require high power dissipation, such as simple analog or digital devices.

Limitations:

• Power Rating: This resistor is rated for a maximum of 0.5 watts of power dissipation. Exceeding this limit could result in overheating and damage to the resistor.

• Tolerance: The ±5% tolerance means that the actual resistance could vary slightly from the nominal value of 330 Ohms, which may impact the precision of the circuit in applications requiring exact resistance values.

Perfect for low-power applications, current limiting, signal processing, and basic circuit protection, this resistor is a great choice for electronics enthusiasts and professionals.
