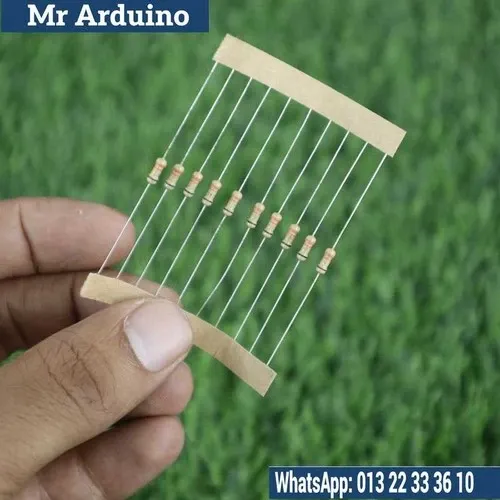

The 330K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 330,000 ohms (330K ohms) and a power rating of 0.25 watts (quarter-watt). This resistor is designed for use in low-power electronic circuits that require a relatively high resistance. It is ideal for voltage dividers, signal conditioning, sensor circuits, and current limiting applications, particularly when working with low-current systems or sensitive components.

The 330K ohm resistor is commonly used in analog circuits, sensor interfaces, signal processing, and DIY electronics. Its quarter-watt power rating ensures that it can safely dissipate minimal power without generating excessive heat, making it suitable for low-power designs, particularly for hobbyists and engineers.

Key Features:

• Resistance Value: 330K ohms, ideal for applications requiring high resistance to limit current or divide voltages.
• Power Rating: 0.25W (quarter-watt), suitable for low-power applications where minimal heat generation is desired.
• Tolerance: Typically comes with ±5% tolerance, but precision versions with ±1% tolerance are available for applications requiring more accuracy.
• Compact Size: The quarter-watt size is perfect for use in breadboards, PCBs, or other designs where space is constrained.
• Material: Made from carbon film or metal oxide, offering durability, stability, and reliable performance in various environments.

How It Works: The 330K Ohm Resistor Quarter Watt 0.25W operates based on Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 330,000 ohms resistance value determines how much current will flow through the circuit for a given voltage.

For example, if you apply 5V across the 330K ohm resistor, the current flowing through the resistor is calculated as:

$$I = \frac{V}{R} = \frac{5V}{330,000Ω} \approx 0.0000152 \, A = 15.2 \, \mu A$$

This means that with a 5V supply, the current flowing through the 330K ohm resistor will be approximately 15.2 microamperes (µA), which is a very small current, suitable for sensitive components or low-power circuits.

To ensure the resistor doesn't overheat, the power dissipated can be calculated using:

$$P = I^2 \times R$$

Substituting the values:

$$P = (0.0000152 \, A)^2 \times 330,000Ω \approx 0.00025W = 0.25W$$

This confirms that the 0.25W power rating is sufficient for this resistor under the given conditions.

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to create specific voltage levels for components like microcontrollers, sensors, and ADC (Analog-to-Digital Converters).
• Current Limiting: Ideal for LED circuits or other low-current applications where you want to limit the current flow to prevent damage to sensitive components.
• Signal Processing: Used in signal conditioning circuits to attenuate or filter signals in applications such as audio systems, sensor circuits, or analog signal processing.
• RC Circuits: Can be used in Resistor-Capacitor (RC) circuits to control the time constant for filters or smoothing circuits.
• Impedance Matching: Used in audio circuits and other systems where impedance matching is required to ensure optimal signal transfer and minimize loss.
• Audio Applications: Helps to control signal levels or filter out noise in audio devices, ensuring clear and consistent signal processing.
• Power Supply Regulation: Used in voltage regulation circuits to provide a stable voltage to sensitive devices in low-power systems.

Limitations:

• Low Power Rating: The 0.25W power rating means this resistor is suitable only for low-power applications. If your circuit requires significant power dissipation, a higher power rating resistor (e.g., 0.5W, 1W) should be used instead.
• Current Handling: This resistor is best suited for low-current circuits. For high-current applications, consider a resistor with lower resistance and a higher power rating.
• Tolerance: With a ±5% tolerance, there may be slight variations in the actual resistance. For applications requiring high precision, you may need a precision resistor with ±1% tolerance.

The 330K Ohm Resistor Quarter Watt 0.25W is an essential component for circuits requiring moderate resistance and low power dissipation. It provides reliable performance for applications like voltage dividers, signal conditioning, and sensor interfacing. Its compact size, affordable cost, and versatility make it an excellent choice for hobbyists and professionals working on low-power electronic projects.
