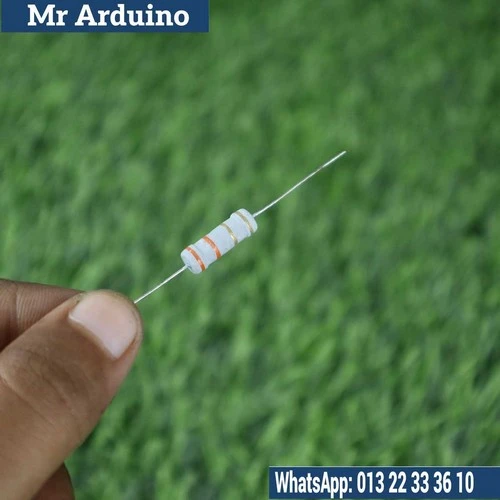

The 3.3 Ohm 2 Watt Resistor is a low-resistance, high-power resistor designed for applications requiring effective current regulation and power dissipation in high-current circuits. With a resistance value of 3.3 Ohms and a power rating of 2 Watts, this resistor is ideal for circuits that handle moderate to high currents, such as power supplies, motor control systems, and audio amplification circuits. It is designed to provide a safe and reliable way to manage current flow while dissipating heat efficiently.

How it Works: The 3.3 Ohm 2 Watt Resistor resists the flow of electrical current, creating a voltage drop based on Ohm’s Law (V = I * R). With its 3.3 Ohm resistance, it allows higher currents to pass through, making it ideal for circuits that need to manage medium to high current levels. The 2-watt power rating ensures that the resistor can safely dissipate up to 2 watts of electrical power as heat without overheating, making it suitable for applications with moderate power dissipation requirements.

Specifications:

• Resistance: 3.3 Ohms

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for moderate to high-power applications

Applications:

• Current Limiting: Used in series with high-power components like LEDs, motors, transistors, or power supply systems to limit the current and prevent damage from excess current.

• Power Supply Circuits: Ideal for use in power supply systems where controlling current and protecting sensitive components is important.

• Voltage Drop: Useful in circuits requiring a specific voltage drop to regulate current flow and protect components from excessive power.

• Audio Circuits: Commonly used in audio amplification systems, where controlling current and preventing damage to audio components is essential.

• Motor Control: Employed in motor control circuits to regulate current and prevent excessive current from damaging motors or associated circuitry.

Limitations:

• Power Rating: The 2-watt power rating must not be exceeded. Exceeding this limit could cause overheating, resistor failure, or damage to the circuit.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value of 3.3 Ohms, which can affect precision in circuits requiring exact resistance values.

The 3.3 Ohm 2 Watt Resistor is perfect for current limiting, power supply regulation, and high-current applications where reliable power dissipation and current control are required.
