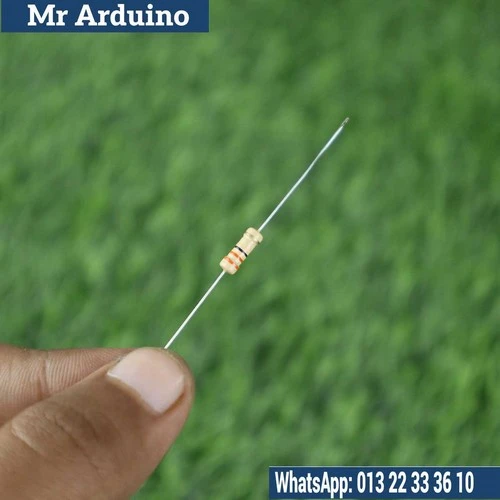

The 33 Ohm 0.5 Watt Resistor is a fixed-value resistor with a resistance of 33 ohms and a power rating of 0.5 watts (½ watt). Resistors are essential components in most electronic circuits, used to limit the flow of electrical current or set voltage levels. This specific resistor is ideal for applications that require a moderate resistance and low power dissipation, making it suitable for signal processing, voltage dividers, LED circuits, and more.

Made from materials like carbon film or metal oxide, the 33 Ohm 0.5 Watt Resistor is durable and designed to safely handle small amounts of power without overheating. It is commonly used in analog circuits, current limiting applications, and voltage regulation tasks.

Key Features:

• Resistance: 33 Ohms (Ω), used to limit current and set appropriate voltage levels in a circuit.

• Power Rating: 0.5 Watts (½ Watt), meaning it can dissipate up to 0.5 watts of electrical power without being damaged or overheating.

• Tolerance: Typically ±5%, indicating that the actual resistance value can vary by up to 5% from the nominal value.

• Type: Axial leaded or through-hole resistor, easy to solder into electronic circuits.

• Material: Often made from carbon film, metal oxide, or ceramic, providing reliability and heat resistance.

• Operating Voltage: Based on the power dissipation limit, the resistor is suitable for low-voltage, low-power circuits.

• Temperature Range: Typically -55°C to +155°C, but this can vary depending on the specific resistor material and design.

Applications:

1. Current Limiting: Used in circuits that require current regulation, such as in LED circuits, where the resistor limits the amount of current passing through the LED to prevent overcurrent and damage.

2. Voltage Dividers: The 33 Ohm resistor is commonly used in voltage divider circuits to divide input voltage into smaller, controlled output voltages. This is especially useful in sensor circuits, biasing circuits, and signal conditioning applications.

3. Signal Conditioning: In analog signal circuits, the resistor helps in controlling the impedance, filtering, or limiting the flow of current, ensuring stable operation.

4. Biasing Circuits: Used in transistor biasing circuits or op-amp circuits to set the correct operating point or control feedback levels in amplifiers.

5. Audio Circuits: The resistor can be used in audio amplifiers, equalizers, or filters to manage current flow, adjust signal levels, and stabilize power delivery.

6. Power Supply Circuits: In low-power power supply circuits, the resistor can be used to limit the current or control voltage, ensuring stable operation and protecting sensitive components.

7. Impedance Matching: The resistor is ideal for impedance matching in communication circuits, ensuring proper signal transfer and minimizing reflections.

How It Works: The 33 Ohm 0.5 Watt Resistor works based on Ohm's Law, which governs how voltage, current, and resistance relate to one another. The relationship is expressed by the formula:

$$V = I \times R$$

Where:

• V is the voltage across the resistor.

• I is the current flowing through the resistor.

• R is the resistance (in this case, 33 Ohms).

When current flows through the resistor, it generates a voltage drop across it, proportional to the resistance and current. The power dissipated by the resistor, as heat, can be calculated by:

$$P = I^2 \times R = \frac{V^2}{R}$$

This formula tells us how much power the resistor will dissipate. The 0.5-watt rating indicates the maximum power that can be safely dissipated without damaging the resistor. If the power dissipation exceeds this limit, the resistor will overheat, potentially damaging it or the circuit.

For example, if the resistor is exposed to 5V:

• The current passing through the resistor would be:

  $$I = \frac{V}{R} = \frac{5V}{33Ω} \approx 0.151A \, (151mA)$$

• The power dissipated would be:

  $$P = V \times I = 5V \times 0.151A \approx 0.755W$$

  In this case, the power dissipation exceeds the 0.5W rating, so the resistor would need to be replaced with a higher power-rated component to prevent overheating.

Product Limitations:

• Power Rating: The 0.5-watt power rating limits the use of this resistor to low-power circuits. It is not suitable for high-power applications where significant current or voltage is involved. Exceeding the power dissipation limit can result in the resistor failing due to overheating.

• Tolerance: The ±5% tolerance means the actual resistance can vary by 5% from the nominal value. For precision applications requiring a highly accurate resistance, resistors with tighter tolerances (e.g., ±1%) would be more suitable.

• Voltage Rating: The resistor's voltage rating must be considered to prevent breakdown or overheating. High voltage can lead to excessive power dissipation, so it’s essential to calculate the voltage and current to ensure the resistor operates within safe limits.

• Size: The size and power dissipation rating are limited, so in circuits that require higher power, it is necessary to choose resistors with a higher wattage rating.

Conclusion: The 33 Ohm 0.5 Watt Resistor is a versatile and commonly used resistor in a variety of low-power electronic circuits. With its moderate resistance and power dissipation rating, it is perfect for applications like current limiting, voltage division, signal conditioning, and biasing circuits. It is typically used in LED circuits, audio amplifiers, voltage dividers, and sensor applications.

Ensure that the resistor’s power dissipation remains under the 0.5-watt limit to avoid overheating. It is an essential component for hobbyists, engineers, and DIY electronics builders who need efficient current control and voltage regulation.
