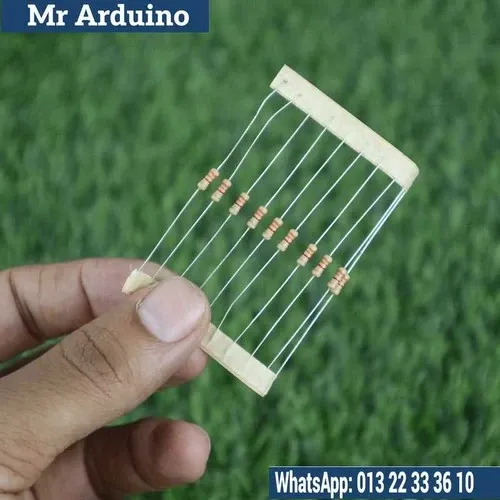

The 3.3K Ohm Resistor Quarter Watt 0.25W is a resistor with a resistance of 3.3 kiloohms (KΩ) and a power rating of 0.25 watts (quarter-watt). This resistor is a commonly used component in low-to-moderate power applications, where controlling current flow or voltage is required in circuits. With a resistance value of 3.3K ohms, this component is ideal for applications that need a moderate resistance to limit or regulate current, divide voltages, or filter signals. The 0.25W power rating ensures it is suitable for low-power circuits, helping to avoid overheating and failure under normal conditions.

This resistor is used extensively in a wide range of electronics projects, signal processing, audio circuits, and voltage divider circuits. It helps ensure precise voltage regulation, current limiting, and safe operation of sensitive components.

Key Features:

• Resistance Value: 3.3K ohms (3,300 ohms), ideal for applications requiring moderate resistance to control or regulate current flow, and for voltage division.
• Power Rating: 0.25W (quarter-watt), making it suitable for low-to-moderate power circuits, ensuring the resistor can handle typical currents without overheating.
• Tolerance: Typically available with ±5% tolerance (standard) or ±1% tolerance (high precision), depending on the application requirements.
• Compact Size: This quarter-watt resistor has a small size, making it easy to fit into compact circuits, ideal for DIY electronics or space-constrained designs.
• Material: Made from carbon film or metal oxide, offering consistent resistance over time and reliable performance.

How It Works: The 3.3K Ohm Resistor Quarter Watt 0.25W works by limiting the flow of current in a circuit according to Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current passing through the resistor, and R is the resistance. A higher resistance value, like 3.3K ohms, results in a lower current for a given voltage.

For instance, if you apply a 5V voltage across a 3.3K ohm resistor, the current can be calculated using the formula:

$$I = \frac{V}{R} = \frac{5V}{3.3KΩ} = 1.515 \, mA$$

This means that with a 5V supply, only 1.515 milliamps (mA) will flow through the resistor. This makes the 3.3K ohm resistor suitable for low current applications, where precise control of current flow is needed.

The 0.25W power rating ensures that the resistor will safely dissipate up to 0.25 watts of power without overheating. Exceeding this power rating could cause the resistor to become hot, potentially damaging it or causing failure, so it should be used in circuits that will not draw more power than this rating.

Applications:

• Voltage Dividers: The 3.3K ohm resistor is commonly used in voltage divider circuits to create specific voltage levels, such as for sensors, LEDs, microcontrollers, or analog-to-digital conversion circuits.
• Signal Processing: In signal processing applications, the resistor can be used for attenuating or filtering signals, ensuring that the signal levels are within acceptable ranges for other components in the circuit.
• Current Limiting: It can be used in current limiting applications, such as in LED circuits, transistor biasing, and sensitive devices, where excessive current could damage components.
• Biasing Circuits: Essential for biasing circuits, especially for transistors and operational amplifiers (op-amps), to set the appropriate operating point for active components.
• Audio Equipment: Often found in audio circuits for impedance matching, signal attenuation, and regulating current flow in speakers, amplifiers, or audio signal processors.
• Sensor Circuits: This resistor can be used in sensor circuits to help filter or regulate voltage levels, ensuring accurate and stable readings.
• LED Protection: It can be used in LED circuits to limit the amount of current flowing through the LED, preventing overcurrent damage to the LED.
• Temperature Sensing: In thermistors or temperature sensing circuits, it helps provide appropriate resistance to match the temperature characteristics of thermistors for precise readings.

Limitations:

• Low Power Rating: With a 0.25W power rating, this resistor is not suitable for circuits requiring higher power dissipation or high current flow. For high-power circuits, resistors with higher wattage ratings should be used.
• Current Handling: Since the 3.3K ohm resistance limits the current flow, it may not be suitable for applications requiring higher current flow, as it would significantly reduce the current.
• Tolerance Variability: With ±5% tolerance, the actual resistance could vary slightly, which may affect the performance of precision circuits. If higher precision is needed, a tighter tolerance resistor (such as ±1%) may be required.

The 3.3K Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component for low-to-moderate power electronics. Whether you're working on voltage dividers, current limiting, signal processing, or sensor circuits, this resistor provides stable and accurate resistance to ensure safe and effective operation in a wide range of applications.
