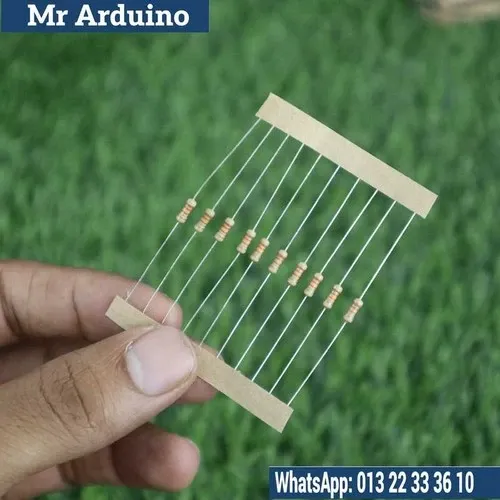

The 33K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 33,000 ohms (33KΩ) and a power rating of 0.25 watts (quarter-watt). It is commonly used in low-to-moderate power circuits where a moderate amount of resistance is needed for controlling current flow, voltage division, or signal conditioning. This resistor is suitable for use in a variety of applications such as voltage dividers, sensor circuits, current-limiting circuits, and audio equipment.

The 0.25W power rating ensures that the resistor can safely operate in low-power applications without the risk of overheating. It is compact, making it ideal for use in space-constrained designs.

Key Features:

• Resistance Value: 33K ohms, providing a moderate resistance for current-limiting, voltage regulation, or impedance matching.
• Power Rating: 0.25W (quarter-watt), suitable for low-power applications, ensuring that the resistor does not overheat when operating within the specified limits.
• Tolerance: Usually available with a ±5% tolerance (standard), but precision versions with ±1% tolerance are also available for more accurate applications.
• Compact Size: The quarter-watt size allows for easy integration into compact circuit designs.
• Material: Typically made from carbon film or metal oxide, ensuring durability and stability over time.

How It Works: The 33K Ohm Resistor Quarter Watt 0.25W controls current flow in a circuit according to Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. For a resistor with 33K ohms, it will limit the current to a specific value depending on the voltage applied across it.

For example, if a 5V supply is applied across the 33K ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{33KΩ} = 0.1515 \, mA$$

This means that with a 5V supply, the current flowing through the 33K ohm resistor would be approximately 0.1515 milliamps (mA). This makes it ideal for use in low-current circuits.

The 0.25W power rating ensures that the resistor can safely dissipate up to 0.25 watts of power without causing damage or overheating.

Applications:

• Voltage Dividers: Often used in voltage divider circuits to create specific voltage levels required for microcontrollers, sensors, or analog-to-digital converters (ADC).
• Signal Conditioning: Used in signal processing circuits to control signal levels, filter noise, and adjust the amplitude in analog circuits.
• Current Limiting: Can be used to limit the current flowing through sensitive components such as LEDs, diodes, or transistors, ensuring they operate within safe limits.
• Impedance Matching: Often found in audio circuits, where it helps match the impedance between different components, ensuring optimal signal transfer.
• Sensor Circuits: Commonly used in sensor circuits to control the voltage supplied to sensors and to stabilize readings by reducing fluctuations.
• RC Circuits: Can be used in RC circuits (with capacitors) to control time constants, filter signals, or delay circuits.
• Audio Amplifiers: Ideal for audio amplifiers or tone controls, where it helps adjust and control signal flow without distortion.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-power applications. For circuits requiring higher power, a higher power-rated resistor (e.g., 0.5W or 1W) should be used.
• Current Handling: This resistor is best for low-current applications. For high-current circuits, a lower resistance and higher power-rated resistor may be required to prevent overheating.
• Tolerance Variability: With a ±5% tolerance, the actual resistance may vary slightly, which could affect circuit performance in precision applications. For tighter accuracy, precision resistors with ±1% tolerance are recommended.

The 33K Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component for a wide range of low-to-moderate power circuits. It is suitable for current regulation, voltage division, and signal conditioning, making it ideal for use in sensor circuits, audio systems, LED drivers, and other general-purpose applications.
