The 30A ATC Fuse Standard Blade Fuse DC is a reliable overcurrent protection device designed for DC electrical circuits. With a 30-amp rating, this ATC (Automotive Type Cartridge) blade fuse is perfect for use in applications where DC circuits need to be safeguarded from damage caused by overloads or short circuits. It is most commonly found in automotive, marine, solar, and industrial applications, where higher currents need to be safely managed.

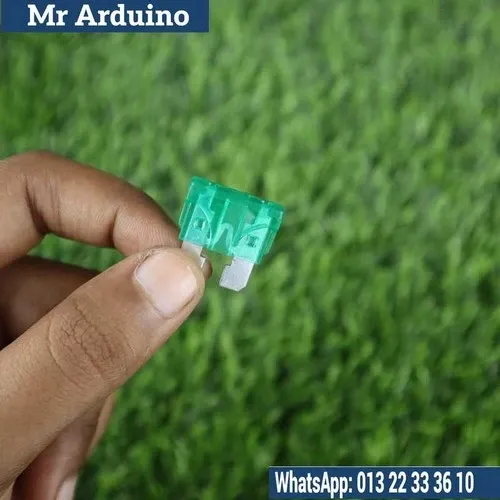

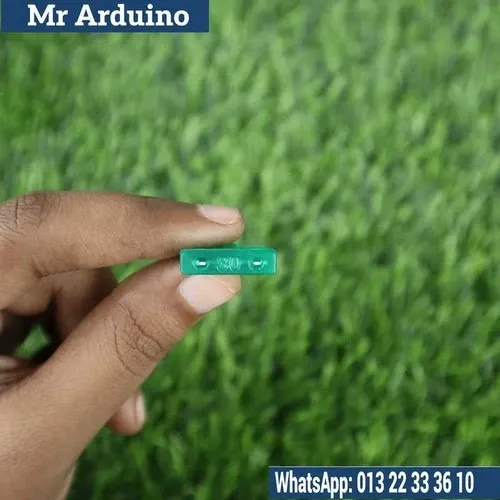

This fuse has a standard blade-style design with two metal prongs that allow it to be easily inserted into fuse holders, making it a quick and simple solution for protecting electrical circuits. It provides fast, reliable protection by interrupting the circuit when the current exceeds the rated capacity, preventing potential damage to the system.

Key Features:

• Current Rating: 30A, offering protection for DC circuits with a current draw of up to 30 amps.

• Blade Design: Features a standard blade-style design that easily fits into ATC fuse holders, ensuring a secure connection.

• Type: ATC (Automotive Type Cartridge) fuse, ideal for automotive, marine, battery-powered, and industrial systems.

• Fast Acting: Provides a quick response to overcurrent situations, preventing damage to sensitive components, wiring, and devices.

• Durability: Built to withstand vibration, heat, and other environmental factors commonly found in automotive and industrial applications.

• Voltage Rating: Typically rated for use in 32V DC circuits, making it ideal for most DC-powered systems.

• Color-Coded: Usually orange in color, making it easy to identify the 30A rating for fast replacement or reference.

Applications:

• Automotive Electrical Systems: Used in cars, trucks, motorcycles, RV systems, and electric vehicles to protect electrical circuits from overcurrent, ensuring the safe operation of lights, radios, fans, and other devices.

• Marine Electronics: Ideal for boats, yachts, and marine vessels, protecting marine electronics like radios, GPS systems, and power circuits.

• Battery-Powered Systems: Protects battery-powered equipment and solar power systems by preventing overcurrent damage to batteries, charge controllers, and inverters.

• Power Distribution: Suitable for DC power distribution panels, offering protection for wiring and connected devices in various residential and industrial systems.

• Industrial Equipment: Used to safeguard DC-powered machinery and electrical systems in factories, workshops, and automated systems.

How It Works: The 30A ATC Blade Fuse is designed to protect the circuit from overcurrent by breaking the circuit when the current exceeds its rated capacity of 30 amps. Inside the fuse, there is a metal strip that carries the current. When the current flow exceeds the 30-amp rating, the metal strip heats up and melts, interrupting the circuit and preventing further electrical damage.

• Under normal conditions, the fuse allows the current to flow through the circuit without interruption.

• If an overcurrent occurs (such as during a short circuit or excessive load), the metal strip inside the fuse heats up due to the increased current and eventually melts.

• Once the strip melts, the circuit is broken, and power is cut off, protecting the connected components and wiring from damage.

• After the fuse blows, it must be replaced with a new 30A ATC fuse to restore the circuit to normal operation.

Product Limitations:

• Current Rating: The 30A fuse is designed for circuits that do not exceed 30 amps. It cannot protect circuits with higher currents without blowing. Ensure that the fuse rating is appropriate for your specific application.

• Voltage Rating: Typically rated for 32V DC circuits. It is important to use the fuse in a system that operates within this voltage range. Using it in higher voltage systems may lead to fuse failure or inadequate protection.

• Single-Use: Once the fuse blows, it cannot be reset. It must be replaced with a new 30A fuse to continue protecting the circuit.

• Response Time: The fuse is designed to respond to sustained overcurrents. It may not be effective for transient current spikes, such as those caused by switching or high inrush currents, unless specifically rated for such conditions.

The 30A ATC Fuse Standard Blade Fuse DC provides essential protection for DC circuits in automotive, marine, industrial, and battery-powered applications. With its easy-to-use design, fast response time, and durable construction, it is an excellent choice for ensuring the longevity and safety of electrical systems.
