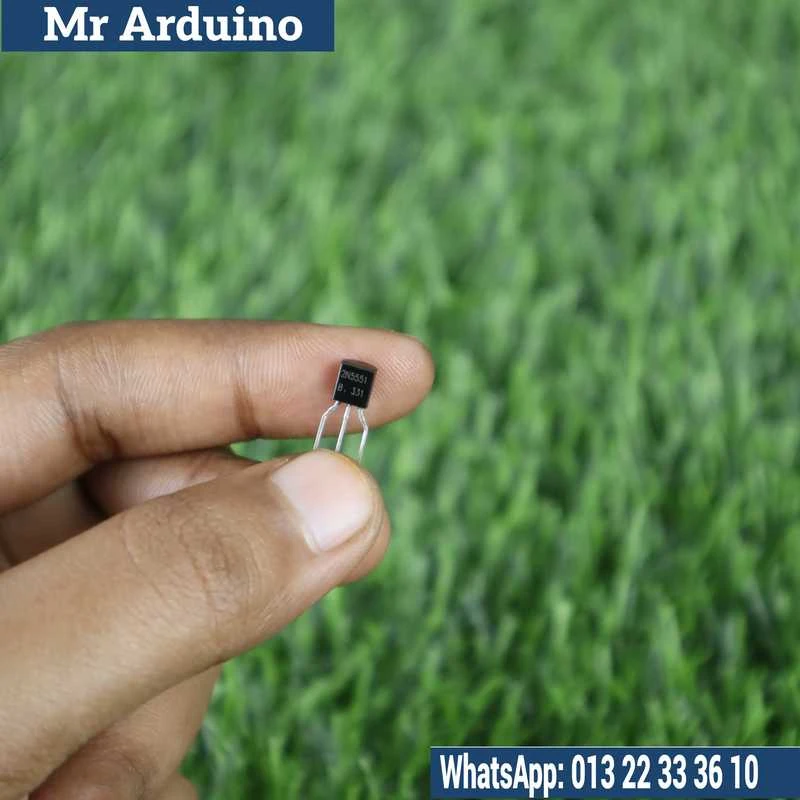

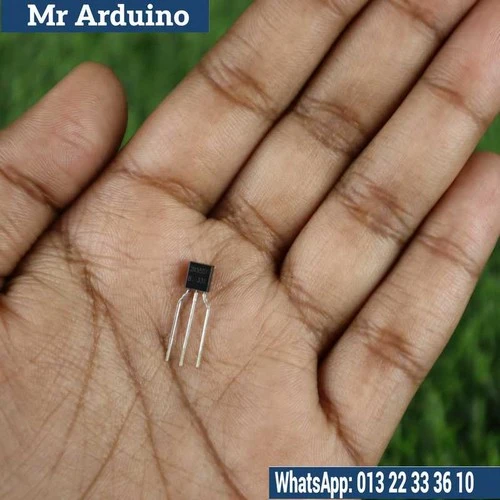

The 2N5551 is a NPN bipolar junction transistor (BJT) commonly used in a variety of electronic applications, particularly in amplification and switching circuits. It is a high-voltage transistor, designed to handle high current with a maximum collector current of 15A, making it suitable for medium to high-power applications. The 2N5551 is designed for general-purpose use and is well-suited for audio amplification, signal processing, power regulation, and switching in consumer electronics, audio amplifiers, power supplies, and other electronic circuits.

The transistor is typically housed in a TO-220 package, which provides easy integration into most electronic systems. Due to its ability to handle high collector-emitter voltages and provide good current gain, the 2N5551 is widely used in industrial applications, power electronics, and audio systems.

Key Features:

• Type: NPN BJT (Bipolar Junction Transistor).

• Collector-Emitter Voltage (Vceo): Rated for a maximum voltage of 115V, making it suitable for high-voltage applications.

• Collector Current (Ic): Can handle a maximum collector current of 15A, making it ideal for power switching and amplifying high-current signals.

• Power Dissipation: Can dissipate up to 75W of power, allowing it to operate in high-power environments without overheating.

• Gain (hFE): Has a current gain (hFE) typically between 20 to 70, which makes it useful for signal amplification and switching purposes.

• Package Type: Available in a TO-220 package, which makes it easy to mount on a heat sink for better thermal management.

• Applications: Well-suited for audio amplifiers, power supplies, motor drivers, switching regulators, and other power-related applications.

Applications:

• Audio Amplifiers: The 2N5551 is often used in audio amplification circuits, providing high current amplification for driving speakers or audio devices.

• Switching Circuits: It is ideal for use in power switching applications, such as in relay drivers, solenoid drivers, or transistor-based switches in various systems.

• Power Supplies: Used in power regulation circuits and DC-DC converters, where it helps to amplify signals and manage power flow.

• Motor Drivers: The 2N5551 is frequently found in motor control circuits, where it drives DC motors by switching the current on and off.

• Signal Amplification: Due to its ability to handle moderate power, it is suitable for signal amplification in low- and medium-power circuits.

• Pulse Circuits: Ideal for switching applications in pulse circuits and PWM (Pulse Width Modulation) circuits, particularly where moderate power handling is required.

How It Works: The 2N5551 NPN transistor functions as a current-controlled switch or amplifier. The basic principle of operation for a NPN BJT is as follows:

1. Base-Emitter Junction: When a small current is applied to the base, it creates a voltage difference between the base and emitter (typically 0.7V for silicon BJTs), which allows current to flow between the collector and emitter.

2. Collector-Emitter Current: When the base current is applied, a larger current is allowed to flow from the collector to the emitter. The ratio between the base current and collector current is called the current gain (hFE).

3. Switching Mode: When used as a switch, the 2N5551 can be either fully "on" (saturated) or "off" (cutoff), allowing it to function as a switch in digital circuits or power control applications.

4. Amplification Mode: When used in amplifier circuits, the transistor allows small input signals at the base to control larger output currents between the collector and emitter.

In both cases, the 2N5551 allows for efficient signal amplification and current switching, making it useful for a wide range of applications.

Product Limitations:

• Voltage Rating: The 2N5551 has a collector-emitter voltage rating of 115V. It should not be used in circuits where the voltage exceeds this limit, as it may damage the transistor.

• Current Rating: While it can handle up to 15A, this is under ideal conditions. Exceeding this current could cause overheating or permanent damage to the device.

• Power Dissipation: The maximum power dissipation of 75W should not be exceeded, as it could lead to thermal failure. Proper heat sinking is essential for maintaining efficient operation in high-power applications.

• Thermal Management: Due to its power-handling capabilities, the 2N5551 may require additional cooling (like a heat sink) to prevent overheating during high-current operations.

• Base Drive Requirement: As with any BJT, the 2N5551 requires an adequate base drive to fully saturate and allow the maximum current to flow. Improper base drive could lead to inefficiency or reduced performance.

Conclusion: The 2N5551 NPN Transistor is a reliable and versatile component for power switching and signal amplification in various applications, especially in audio systems, power supplies, and motor drives. With its high current handling, voltage rating, and power dissipation capacity, it is a robust solution for circuits requiring moderate power amplification or switching.

Its versatility in handling high voltage and moderate current makes it an excellent choice for engineers and hobbyists working on medium-power projects. If your design requires reliable and efficient current handling and amplification, the 2N5551 provides the necessary performance.
