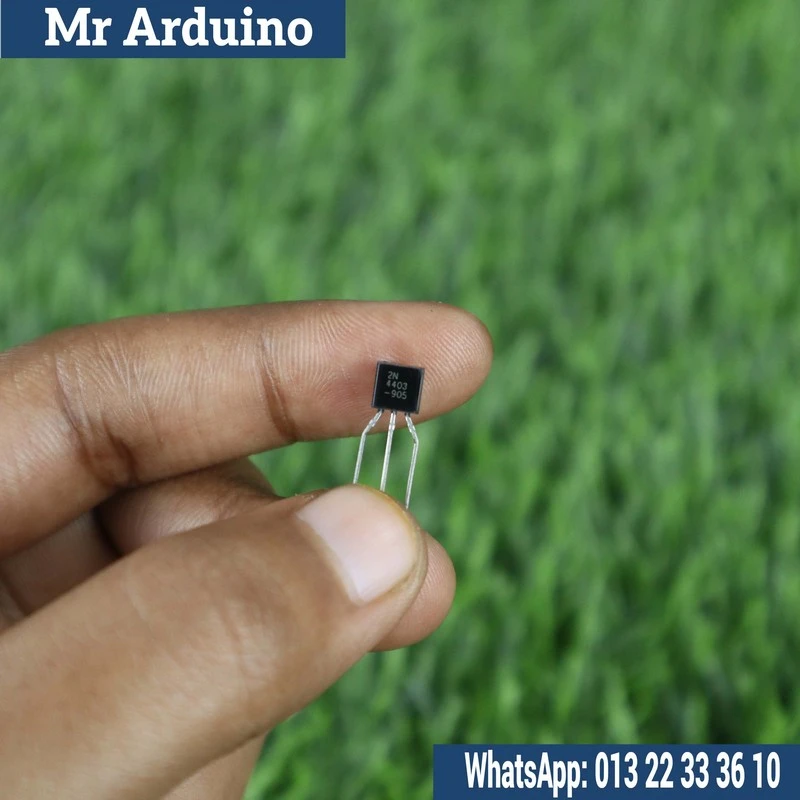

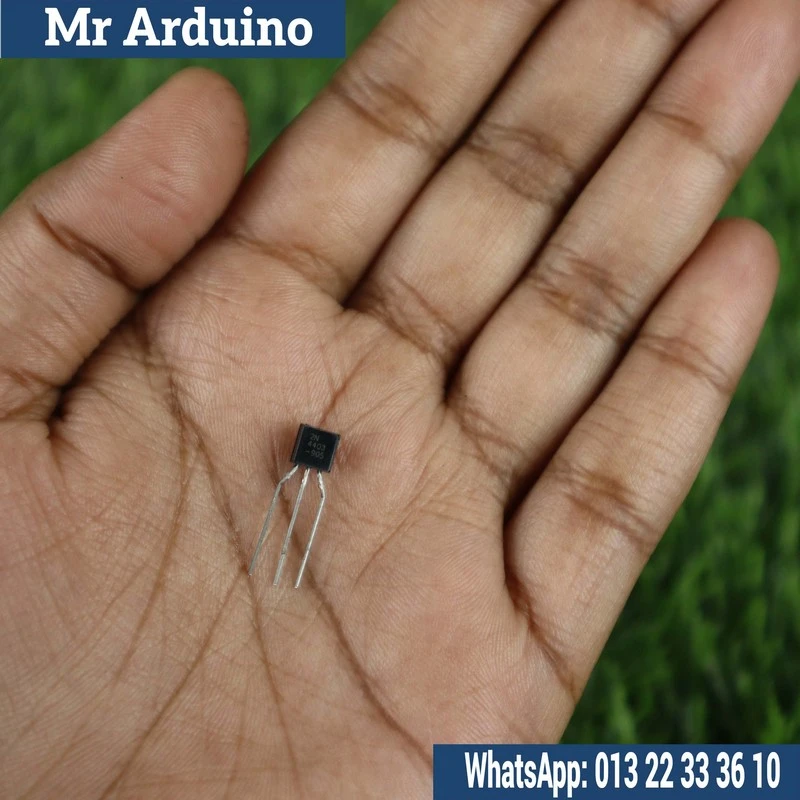

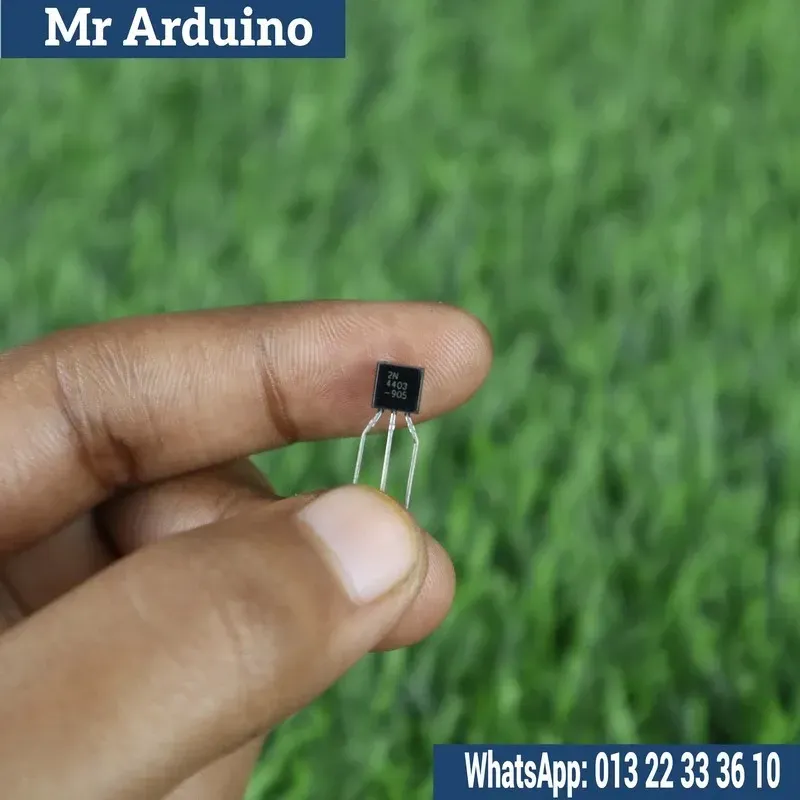

The 2N4403 is an NPN transistor that is designed for general-purpose switching and amplification applications. It is commonly used in low- and medium-power electronic circuits, such as audio amplifiers, signal processing, and in switching circuits that require the transistor to control current flow.

Features:

• Type: NPN Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (Vceo): 40V

• Maximum Collector Current (Ic): 600mA

• Power Dissipation (Ptot): 500mW

• Package Type: TO-92 (Through-hole package)

• Transition Frequency (ft): 250 MHz

• Applications: Amplifiers, low power switching circuits, signal processing, and general-purpose applications.

How It Works:

The 2N4403 operates by allowing current to flow between the collector and emitter when the base of the transistor is supplied with a sufficient voltage. The transistor is controlled by a small current at the base, and in turn, it can control a larger current flowing between the collector and emitter.

1. Base-Emitter Junction: A small voltage applied to the base relative to the emitter allows current to flow between the collector and emitter.

2. Amplification: It works as an amplifier by increasing the current from the collector-emitter circuit based on the input signal at the base.

3. Switching: When used in switching applications, the 2N4403 can either turn on (saturation mode) or turn off (cutoff mode) the current flow between the collector and emitter, effectively acting as a switch.

Product Limitations:

• Voltage Rating: The maximum collector-emitter voltage (Vceo) is limited to 40V, which restricts its use in high-voltage applications.

• Current Capacity: The maximum collector current is 600mA, so it may not be suitable for high-current applications.

• Power Dissipation: The 500mW power dissipation limit means that the transistor will need adequate heat sinking for efficient operation in high-power circuits.

• Package Type: The TO-92 package is suitable for low-power applications but may not be optimal for designs requiring high thermal dissipation.

Overall, the 2N4403 is a versatile and reliable transistor widely used in both educational projects and commercial electronic designs for low-to-medium power amplification and switching.
