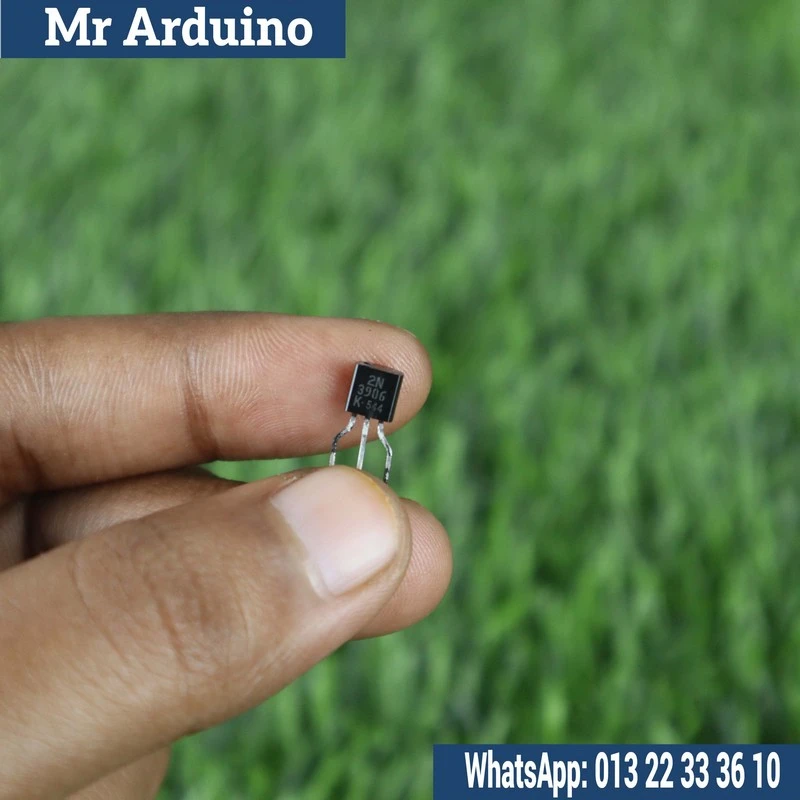

The 2N3906 is a widely used PNP (Positive-Negative-Positive) bipolar junction transistor (BJT), commonly employed in low-power amplification and switching applications. It is ideal for small-signal operations and is frequently used in analog and digital circuits, audio amplifiers, signal processing, and for general-purpose switching needs.

Features:

• Type: PNP Bipolar Junction Transistor (BJT)

• Maximum Collector-Emitter Voltage (Vceo): 40V

• Maximum Collector Current (Ic): 200mA

• Power Dissipation (Ptot): 500mW

• Package Type: TO-92 (Through-hole package)

• Transition Frequency (ft): 250 MHz

• Applications: Signal amplification, switching, audio circuits, and general-purpose electronic applications.

How It Works:

The 2N3906 transistor works by controlling the flow of current between its collector and emitter based on the voltage applied to the base. When a small current or voltage is applied to the base relative to the emitter, it allows a larger current to flow between the collector and emitter, which can be used for amplification or switching.

1. Base-Emitter Junction: For a PNP transistor like the 2N3906, the base is negatively biased relative to the emitter, which allows current to flow from the emitter to the collector.

2. Amplification: The transistor amplifies small input signals at the base, which are used to control larger currents from the collector to the emitter.

3. Switching: In switching applications, the transistor can act as a switch, either turning "on" (saturation mode) or "off" (cutoff mode) based on the base voltage, enabling or disabling current flow between the collector and emitter.

Product Limitations:

• Voltage Rating: The maximum collector-emitter voltage (Vceo) is limited to 40V, which restricts its use in high-voltage applications.

• Current Capacity: The maximum collector current is limited to 200mA, making it unsuitable for high-current applications.

• Power Dissipation: With a maximum power dissipation of 500mW, it is important to manage heat in circuits with higher currents to prevent overheating.

• Package Type: The TO-92 package is ideal for low-power, small-scale applications but may not be suited for high thermal dissipation needs.

Applications:

• Signal Amplification: Perfect for small signal amplifiers in audio or RF circuits.

• Switching Circuits: Ideal for use in low-power switches in logic circuits, sensors, and relay control.

• General Electronics: Commonly used in general-purpose circuits requiring small current switching and amplification.

The 2N3906 is a robust, reliable, and low-cost transistor used extensively in consumer electronics, educational projects, and a variety of signal processing tasks. Its compact design and low power consumption make it a popular choice for a range of applications in electronics.
