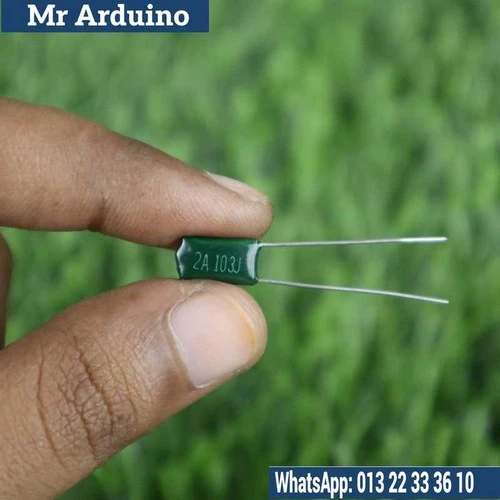

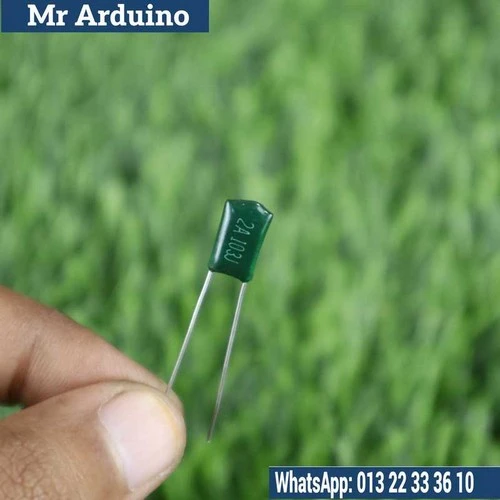

The 2A103J Polyester Film Capacitor is a high-quality, general-purpose capacitor designed for a wide range of electronic applications. With a capacitance value of 10nF (10 nanofarads) and a J tolerance rating (typically ±5%), this capacitor offers reliable performance for various circuits. The polyester film dielectric material provides excellent electrical insulation and stability, making it an ideal choice for filtering, coupling, decoupling, and bypassing in both signal processing and power circuits.

Due to its compact size and good temperature stability, the 2A103J polyester film capacitor is widely used in consumer electronics, power supplies, audio systems, and other electronic devices where cost-effective and reliable performance is crucial. It also features low ESR (Equivalent Series Resistance), which ensures efficient operation, especially in high-frequency applications.

Key Features:

• Capacitance: 10nF (0.01µF)

• Voltage Rating: Typically 50V or 100V (depending on the specific model)

• Tolerance: ±5% (J), providing good accuracy for general-purpose use

• Dielectric Material: Polyester film, offering reliable performance and durability

• Package Type: Available in Through-Hole or Axial Lead packages, depending on the version

• Low ESR (Equivalent Series Resistance): Ensures efficient performance in high-frequency circuits

• Temperature Stability: Suitable for most electronic applications with typical temperature ranges

Applications:

• Signal Coupling: Used in audio and analog circuits to allow AC signals to pass while blocking DC components, ensuring proper signal transmission.

• Filtering: Ideal for use in power supplies, reducing noise and smoothing voltage fluctuations in DC circuits.

• Bypassing: Commonly employed to filter high-frequency noise in signal lines and stabilize voltage levels in sensitive circuits.

• Decoupling: Helps eliminate transient voltage spikes in power supply lines, improving the stability of digital circuits.

• Timing Circuits: Useful in RC timing circuits for oscillators, delay circuits, and signal generators.

• Audio Circuits: Employed in audio devices for coupling or tone control to maintain signal integrity and reduce unwanted noise.

How It Works: The 2A103J Polyester Film Capacitor stores electrical energy in an electric field created between its two conductive plates, which are separated by a polyester film dielectric. This allows the capacitor to store charge and filter or smooth voltage by blocking DC signals while allowing AC signals to pass through. The 10nF capacitance value defines its ability to store energy and influences its performance in various types of circuits.

In coupling applications, the capacitor blocks the DC component of a signal while allowing the AC component to pass, ensuring clean signal transmission between stages of a circuit. In filtering applications, it helps to reduce voltage ripple by smoothing out fluctuations in power supply lines. In decoupling or bypass circuits, it filters out high-frequency noise, providing stable voltage for sensitive components.

Product Limitations:

• Voltage Rating: Ensure the 2A103J Polyester Film Capacitor is used within its rated voltage limit to prevent breakdown of the dielectric material and potential failure of the capacitor.

• Tolerance: The ±5% tolerance may lead to slight variations in capacitance, which could affect performance in highly sensitive or precision applications.

• Temperature Sensitivity: While generally stable, polyester film capacitors may show slight changes in capacitance with temperature fluctuations. For high-precision applications or extreme environments, capacitors with better temperature stability may be preferred.

The 2A103J Polyester Film Capacitor is a reliable and cost-effective choice for a wide range of electronic applications, offering solid performance for general-purpose use, signal processing, and power filtering.
