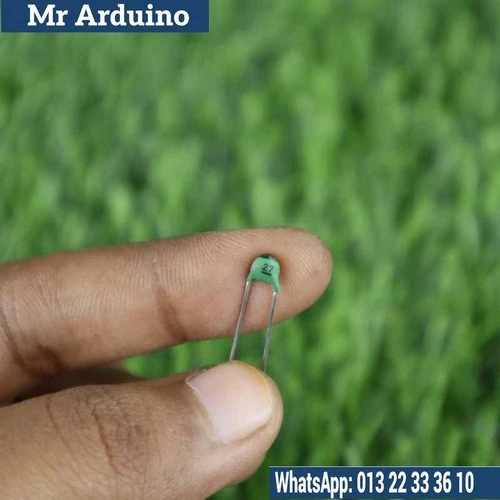

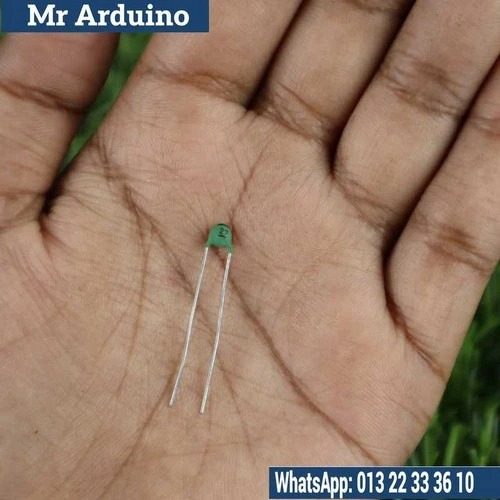

The 27 pF 50V Ceramic Disc Capacitor is a small, high-performance electronic component designed for use in various signal processing and filtering applications. The "27 pF" indicates a capacitance of 27 picofarads (pF), and it is rated for a maximum operating voltage of 50V. This capacitor is often used in high-frequency circuits, noise suppression, decoupling, and signal coupling, particularly in low-voltage environments.

Built with high-quality ceramic materials, the 27 pF Ceramic Disc Capacitor offers stable electrical properties, excellent performance, and long-lasting reliability. Its disc form factor allows easy mounting on circuit boards, making it suitable for both through-hole and surface-mount applications.

Key Features:

• Capacitance: 27 pF

• Voltage Rating: 50V

• Material: Ceramic

• Tolerance: Typically ±10% to ±20%

• Temperature Range: Suitable for general-purpose electronics in a wide range of temperatures

• Compact disc shape ideal for easy integration into various circuit designs

• High insulation resistance ensures efficient decoupling and filtering

Applications:

• Signal filtering in audio, RF, and communication circuits

• Decoupling and noise suppression in power supply systems

• Coupling of AC signals while blocking DC in various circuits

• General-purpose use in low-voltage electronics and prototypes

• Timing and frequency control circuits

How It Works: The 27 pF 50V Ceramic Disc Capacitor stores electrical energy and then releases it as needed, facilitating the smooth flow of AC signals while blocking DC signals. This makes it ideal for applications like signal coupling and decoupling, where it ensures the transmission of AC signals without the interference of DC. In power circuits, it helps filter out noise and smooth voltage, providing cleaner power. When used in timing circuits, it helps manage the charge and discharge rate, influencing the frequency or timing behavior of the circuit. The capacitor is also effective in filtering out unwanted signals in RF and communication systems, ensuring signal integrity.

Product Limitations:

• Voltage Rating: The 50V rating should not be exceeded, as doing so can cause capacitor failure or dielectric breakdown.

• Tolerance: The ±10% to ±20% tolerance means the capacitance may vary slightly from the nominal value, which could affect performance in highly precise circuits.

• Temperature Sensitivity: Like most ceramic capacitors, the capacitance may change with temperature fluctuations, making it less ideal for applications that require extremely stable capacitance in varying temperature environments.
