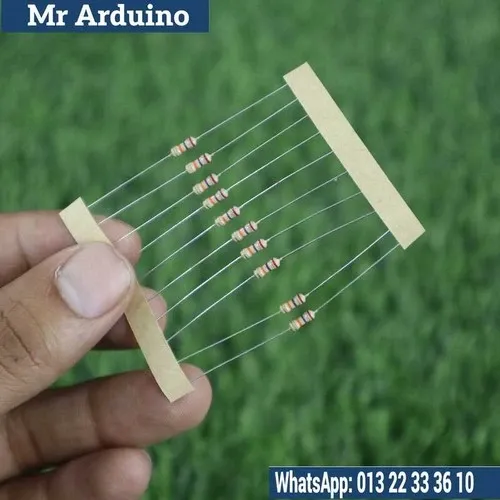

The 27K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 27,000 ohms (27KΩ) and a power rating of 0.25 watts (quarter-watt). It is commonly used in low-to-moderate power circuits where a moderate resistance is required to control the flow of current, divide voltages, or adjust signal levels. This resistor is suitable for use in applications such as voltage dividers, current-limiting circuits, signal processing, and audio circuits.

With its 0.25W power rating, this resistor is designed to handle low power levels and can be used in low-power electronic circuits without the risk of overheating. Its compact size makes it ideal for applications where space is limited.

Key Features:

• Resistance Value: 27K ohms, ideal for moderate resistance applications where current regulation or voltage division is necessary.
• Power Rating: 0.25W (quarter-watt), suitable for low-power applications, ensuring that the resistor does not overheat during typical use.
• Tolerance: Usually available with a ±5% tolerance (standard), with options for precision resistors offering ±1% tolerance for more demanding applications.
• Compact Size: The quarter-watt size allows for integration in space-constrained designs, such as PCBs or smaller electronic devices.
• Material: Typically made from carbon film or metal oxide, providing durability, stability, and reliability over time.

How It Works: The 27K Ohm Resistor Quarter Watt 0.25W limits the current in a circuit according to Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 27K ohm resistance determines the current flow for a given voltage applied to the resistor.

For example, if a 5V voltage is applied across the 27K ohm resistor, the current can be calculated as:

This means that with a 5V supply, the current flowing through the 27K ohm resistor would be approximately 0.185 milliamps (mA). This makes it ideal for use in low-current applications.

The 0.25W power rating ensures that the resistor can dissipate up to 0.25 watts of power without the risk of damage or overheating.

Applications:

• Voltage Dividers: Used in voltage divider circuits to create specific voltage levels needed for sensors, microcontrollers, or analog-to-digital converters (ADC).
• Signal Conditioning: In signal processing applications, the resistor helps to attenuate or filter signals, adjusting amplitude or modifying signal levels for various circuits.
• Current Limiting: Can be used to limit the current flowing through LEDs, diodes, or other components to prevent overcurrent damage.
• Impedance Matching: Useful in audio circuits, such as tone controls or amplifiers, for impedance matching and controlling signal flow.
• RC Circuits: Can be used in RC (resistor-capacitor) circuits to determine time constants, control charging/discharging rates, and filter signals.
• Sensor Circuits: Often used in sensor circuits to provide stable voltage and current regulation, ensuring accurate readings.
• Audio Equipment: Ideal for use in audio applications, such as sound systems or audio amplifiers, where it helps manage signal strength and current levels.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-power circuits. For higher-power circuits, consider using resistors with a higher power rating (e.g., 0.5W, 1W).
• Current Handling: This resistor is intended for low-current applications. If a circuit requires high current, a resistor with a lower resistance value and a higher power rating should be used to avoid overheating.
• Tolerance Variability: The ±5% tolerance means the actual resistance could vary slightly from its nominal value, which may affect performance in precision circuits. For applications requiring high accuracy, precision resistors with ±1% tolerance are recommended.

The 27K Ohm Resistor Quarter Watt 0.25W is an essential component for many low-to-moderate power applications, including voltage regulation, current limiting, and signal conditioning. Its versatility and reliability make it ideal for use in sensor circuits, audio systems, microcontroller projects, and other general-purpose electronic applications.
