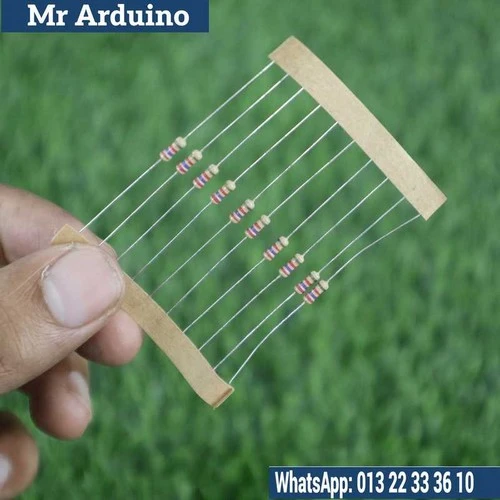

The 2.7K Ohm Resistor Quarter Watt 0.25W is a standard fixed resistor with a resistance value of 2.7 kiloohms (KΩ) and a power rating of 0.25 watts (quarter-watt). It is a widely used component in electronic circuits for regulating current, dividing voltage, and controlling signal levels. This resistor is ideal for low-to-moderate power applications, where precise control of current and voltage is needed without excessive power dissipation. The 0.25W power rating ensures that it is safe for use in low-power circuits, and it offers reliable performance across a wide range of applications.

The 2.7K ohm value makes it particularly useful in voltage dividers, signal conditioning, and biasing circuits. It is designed to handle typical low-power loads and is frequently found in consumer electronics, sensors, and audio devices.

Key Features:

• Resistance Value: 2.7K ohms (2,700 ohms), suitable for circuits where moderate resistance is needed to control current, divide voltages, or filter signals.
• Power Rating: 0.25W (quarter-watt), perfect for low-to-moderate power circuits, ensuring no overheating under normal operation.
• Tolerance: Typically available with ±5% tolerance (standard) or ±1% tolerance (high precision), depending on your accuracy requirements.
• Compact Size: The quarter-watt size is small and makes it easy to integrate into space-constrained designs.
• Material: Made from carbon film or metal oxide, ensuring consistent resistance values and long-term reliability.

How It Works: The 2.7K Ohm Resistor Quarter Watt 0.25W limits the flow of current in a circuit using Ohm's Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. A higher resistance value, such as 2.7K ohms, results in a lower current for a given voltage.

For example, if a 5V voltage is applied across the 2.7K ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{2.7KΩ} = 1.85 \, mA$$

This shows that with a 5V supply, the current through the resistor will be 1.85 milliamps (mA), making it suitable for low-power circuits that require a moderate amount of current flow.

The 0.25W power rating ensures that the resistor will dissipate no more than 0.25 watts of power. Exceeding this power rating could lead to overheating and potential damage, so it is important to use it within its rated power limits.

Applications:

• Voltage Dividers: Commonly used in voltage divider circuits to produce specific voltage levels for other components such as LEDs, sensors, microcontrollers, or analog-to-digital converters (ADCs).
• Signal Processing: In signal processing circuits, the resistor can help attenuate or filter signals to bring them to appropriate levels for other components or stages of the circuit.
• Current Limiting: Used in current-limiting applications such as LED circuits, where excessive current must be prevented to protect the components.
• Biasing Circuits: In transistor biasing or op-amp circuits, this resistor helps set the proper operating points for active components.
• Audio Circuits: Found in audio equipment such as amplifiers, equalizers, or audio signal processors, where it can help with impedance matching, signal attenuation, and current regulation.
• Sensor Circuits: Often used in sensor circuits to regulate voltage or filter signals, ensuring accurate readings from sensors and preventing signal distortion.
• LED Protection: Helps in LED circuits to limit current and prevent damage from excess voltage or current, ensuring the LEDs operate within their rated specifications.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-to-moderate power circuits. It should not be used in high-power applications where higher current or higher power dissipation is expected. For such applications, resistors with a higher power rating (e.g., 0.5W or more) should be used.
• Current Handling: The 2.7K ohm resistance restricts the flow of current, so it may not be suitable for circuits that require higher current flow, as it will limit the current significantly.
• Tolerance Variability: With ±5% tolerance, the actual resistance may vary slightly, which could impact performance in precision circuits. If tighter tolerance is required, resistors with ±1% tolerance are available.

The 2.7K Ohm Resistor Quarter Watt 0.25W is a widely used component in electronic circuit design. Whether you are working with voltage dividers, signal filtering, current limiting, or biasing circuits, this resistor offers the right balance of resistance and power handling for low-to-moderate power applications. It ensures safe and efficient operation while maintaining stable performance over time.
