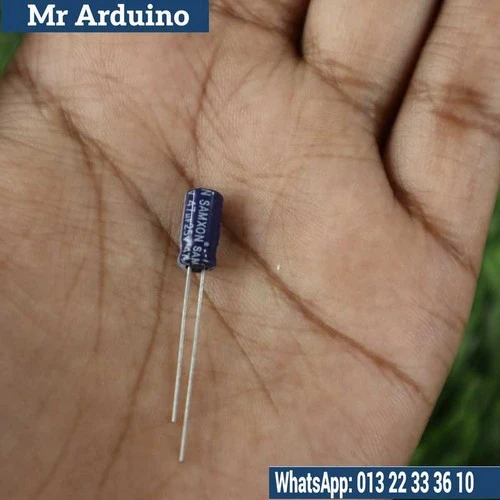

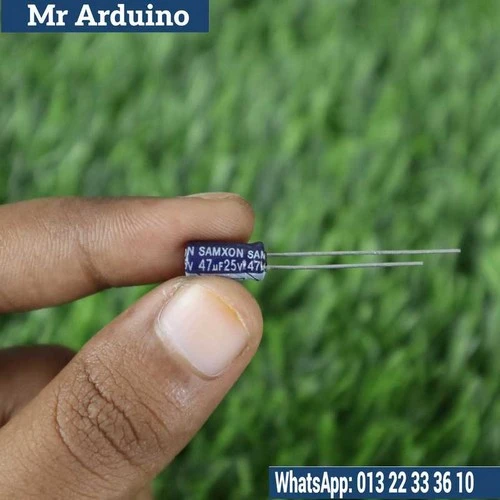

The 25V 47uF Electrolytic Capacitor is a compact and reliable component designed for energy storage, voltage stabilization, and filtering in various electronic circuits. With a capacitance of 47µF and a rated voltage of 25V, this capacitor is ideal for applications in power supplies, audio circuits, signal processing, and voltage regulation, where moderate capacitance and stable performance are required.

Being an electrolytic capacitor, it features a polarized design, meaning it must be installed with correct polarity (positive lead to the higher voltage side) to function properly and prevent damage. Despite its relatively small capacitance value, it offers great performance in circuits that require moderate energy storage or voltage smoothing.

Key Features:

• Capacitance Value: 47µF, suitable for lower capacitance requirements where moderate energy storage and voltage regulation are needed.

• Rated Voltage: 25V DC, designed for use in circuits where the applied voltage will not exceed 25V.

• Polarized: Must be connected with the correct polarity (positive lead to the higher voltage side).

• Compact Size: The small form factor makes it ideal for space-constrained designs while still providing reliable performance.

• Durability: Provides consistent performance in electronic applications, ensuring long-term reliability.

How It Works: The 25V 47uF Electrolytic Capacitor works by storing electrical energy between two electrodes separated by a dielectric material. When voltage is applied, the capacitor accumulates charge, storing energy. When needed, the capacitor discharges, providing stored energy to stabilize the voltage or smooth out fluctuations.

In power supply circuits, this capacitor helps to smooth out ripple and stabilize the DC voltage, ensuring that the output voltage is clean and consistent. It is also used in filtering applications to eliminate unwanted noise, ensuring that only the desired signals pass through.

Applications:

• Power Supply Filtering: Used to reduce ripple and stabilize voltage in DC power supplies and voltage regulators, providing a steady output voltage.

• Voltage Regulation: Helps maintain consistent voltage levels in DC-DC converters, voltage regulators, and other circuits where voltage stability is critical.

• Audio Systems: Used in audio amplifiers and filters to block DC signals and pass only the AC signals (such as audio signals), ensuring high-quality sound.

• Signal Coupling: Used in signal processing circuits to block DC while allowing AC signals to pass through.

• Energy Storage: Suitable for energy storage applications in circuits where lower capacitance values are needed for stabilization or filtering.

Specifications:

• Capacitance: 47µF (microfarads)

• Rated Voltage: 25V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify specific temperature range on datasheet)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on the specific variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact dimensions)

Limitations:

• Polarized: Proper polarity must be observed during installation. Reversing the polarity can result in capacitor failure, leakage, or rupture.

• Voltage Rating: The 25V maximum rated voltage should not be exceeded to avoid damaging the capacitor. Higher voltages can lead to degradation or complete failure.

• Lifespan: Electrolytic capacitors may degrade over time, especially under high voltage or temperature conditions. This could lead to increased leakage current or reduced capacitance.

• Size: While compact, the 47µF capacitance value may still be too large for circuits with very tight space limitations.
