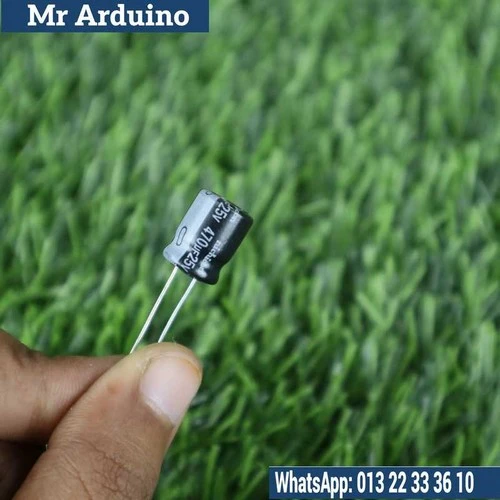

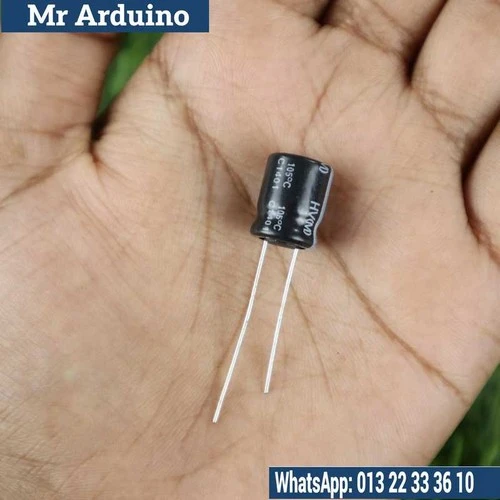

The 25V 470uF Electrolytic Capacitor is a reliable and high-capacity electrolytic capacitor designed for energy storage, voltage smoothing, and filtering applications in various electronic circuits. With a capacitance value of 470µF and a rated voltage of 25V, this capacitor is commonly used in power supply systems, audio circuits, DC-DC converters, and many other electronic devices where stable and reliable voltage regulation is needed.

Electrolytic capacitors like this one use an electrolyte to achieve large capacitance values, and they are polarized, meaning they must be connected correctly in the circuit (positive terminal to the higher voltage side). They are known for their high capacitance-to-size ratio, making them an ideal choice for circuits that require a significant amount of energy storage in a compact form factor.

Key Features:

• Capacitance Value: 470µF, offering a good balance of energy storage and voltage stabilization for moderate-capacity applications.

• Rated Voltage: 25V DC, suitable for use in circuits with a voltage level of up to 25V.

• Polarized: Correct polarity must be observed during installation to avoid capacitor failure or leakage.

• Compact and Efficient: Despite its high capacitance, the capacitor is compact and easy to integrate into space-limited designs.

• Long-lasting and Durable: Designed to provide stable performance even in demanding applications, offering a reliable solution for energy storage and voltage regulation.

How It Works: The 25V 470uF Electrolytic Capacitor stores electrical energy by creating an electric field between its two electrodes, separated by a dielectric material. When a DC voltage is applied, the capacitor charges up, storing energy in the form of an electric field. When the voltage drops or when the circuit requires energy, the capacitor discharges the stored energy, helping to maintain stable voltage levels.

In a power supply circuit, this capacitor helps to smooth out ripple or fluctuations in the DC voltage, ensuring that sensitive components receive a clean, consistent voltage. It is also used in audio circuits to filter out unwanted DC components and allow only AC signals to pass through, improving signal quality.

Applications:

• Power Supply Filtering: Commonly used to filter out voltage ripple and stabilize DC voltage in power supply circuits, including linear regulators and switching power supplies.

• Voltage Regulation: Used in DC-DC converters and other voltage regulation circuits to ensure a steady voltage output.

• Audio Systems: Helps smooth voltage and eliminate DC components in audio amplifiers, pre-amplifiers, and audio filters, ensuring high-quality sound output.

• Signal Coupling: Used to block DC and pass AC signals in various analog signal processing circuits.

• Energy Storage: Suitable for circuits requiring moderate energy storage, such as motor drivers or voltage smoothing in low-power applications.

Specifications:

• Capacitance: 470µF (microfarads)

• Rated Voltage: 25V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify specific temperature range on datasheet)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on the variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for specific details)

Limitations:

• Polarized: Proper polarity must be followed during installation to prevent failure or leakage. Reversing the polarity can lead to capacitor damage.

• Voltage Rating: The capacitor is rated for 25V, and applying higher voltages can result in permanent damage to the component.

• Lifespan: Electrolytic capacitors degrade over time, particularly under conditions of high voltage, temperature, or extended use, potentially leading to increased leakage current or reduced capacitance.

• Size: While compact, the 470µF capacitance may still be too large for specific designs with strict space constraints.
