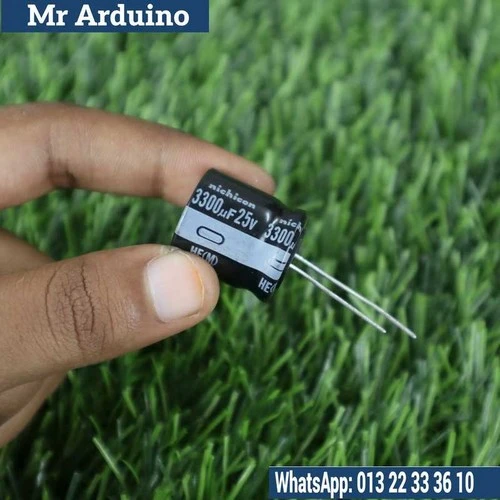

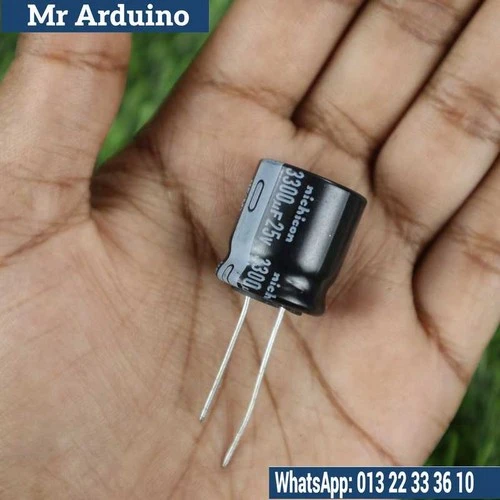

The 25V 3300uF Electrolytic Capacitor is a high-capacitance, polarized capacitor designed to store and regulate electrical energy in a variety of electronic circuits. With a capacitance of 3300µF and a rated voltage of 25V, this capacitor is ideal for power supply smoothing, energy storage, voltage regulation, and filtering applications. It is widely used in power electronics, audio systems, DC-DC converters, and motor driver circuits where large amounts of energy storage and voltage stabilization are required.

Electrolytic capacitors like this one use an electrolyte to achieve high capacitance in a relatively small physical size. However, it’s essential to connect the capacitor in the correct orientation, as it is a polarized component.

Key Features:

• Capacitance Value: 3300µF, providing a large amount of energy storage for smoothing and voltage regulation applications.

• Rated Voltage: 25V DC, suitable for circuits where the voltage will not exceed this value.

• Polarized Design: Must be connected with correct polarity (positive terminal to higher voltage side).

• Compact and High Capacity: Despite its high capacitance, it maintains a compact form factor, making it ideal for space-limited applications.

• Durable Construction: Designed for reliable, long-lasting performance in a wide range of electronic circuits.

How It Works: The 25V 3300uF Electrolytic Capacitor stores electrical energy in an electric field created between two electrodes separated by an electrolyte. When voltage is applied to the capacitor, it stores energy by charging up to the applied voltage. When the voltage drops or a load is applied, the capacitor discharges, providing stored energy.

In power supply circuits, this capacitor helps to smooth out voltage ripple, ensuring a steady DC output by reducing fluctuations from AC power sources. It is particularly useful in DC-DC converters, power amplifiers, and audio systems to regulate voltage and filter out unwanted signals.

Applications:

• Power Supply Filtering: Used to smooth voltage fluctuations and reduce ripple in power supply circuits, ensuring a steady DC output.

• Energy Storage: Suitable for storing energy in systems like motor drivers, where large amounts of energy are required over short periods.

• Voltage Regulation: Helps stabilize voltage levels in DC-DC converters and power regulation circuits, maintaining consistent voltage despite fluctuations in the power source.

• Audio Circuits: Used to stabilize voltage in audio amplifiers, preventing distortion caused by fluctuations or noise.

• Signal Filtering: Effective for filtering out unwanted noise or frequencies in both analog and digital circuits.

Specifications:

• Capacitance: 3300µF (microfarads)

• Rated Voltage: 25V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify specific temperature range on datasheet)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depends on variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact size)

Limitations:

• Polarized: It is essential to observe the correct polarity when installing the capacitor. Reversing the polarity can cause the capacitor to fail or even leak.

• Voltage Rating: Ensure the applied voltage does not exceed 25V, as higher voltages could damage the capacitor and compromise circuit performance.

• Lifespan: Electrolytic capacitors degrade over time, especially at high temperatures, and their performance may decline due to increased leakage current or reduced capacitance.

• Size: While compact, the 3300µF capacitance may still be too large for certain designs with strict size constraints.
