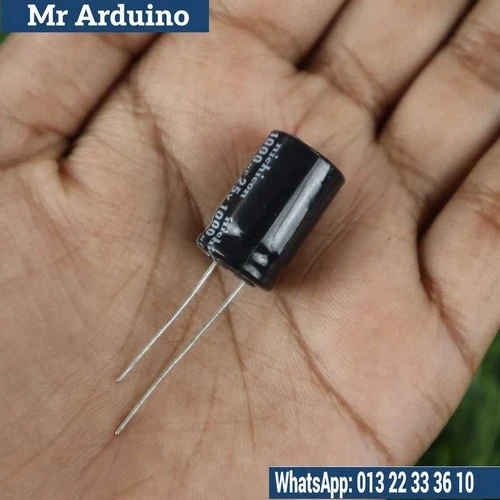

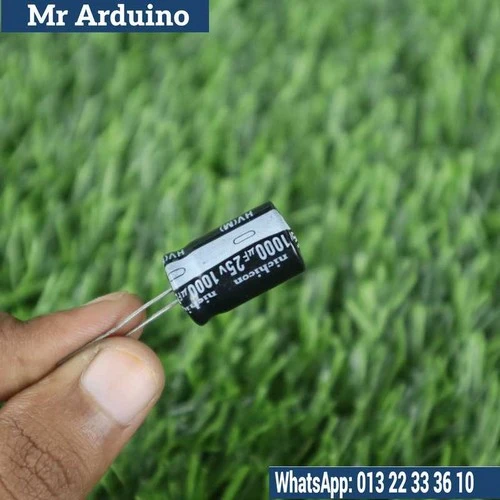

The 25V 1000uF Electrolytic Capacitor is a high-capacity, polarized capacitor commonly used in electronic circuits for energy storage, voltage regulation, and smoothing applications. With a capacitance value of 1000µF and a rated voltage of 25V, this capacitor is ideal for use in a wide variety of power supply systems, audio circuits, and signal processing applications where stable and consistent voltage is essential.

Electrolytic capacitors like this one are designed to store electrical energy in an electric field between two electrodes, one of which is coated with a dielectric oxide layer. These capacitors are polarized, meaning they must be installed with the correct polarity to function properly and prevent damage.

Key Features:

• Capacitance Value: 1000µF, suitable for applications requiring moderate energy storage or voltage smoothing.

• Rated Voltage: 25V DC, designed for use in circuits where the voltage will not exceed this value.

• Polarized Design: Requires correct polarity during installation (positive lead to higher voltage side).

• Compact Size: Despite the large capacitance value, the capacitor maintains a relatively small form factor, making it suitable for most circuit boards.

• Long-Lasting Performance: Designed for durability and long-term reliability, even in demanding electronic systems.

How It Works: The 25V 1000uF Electrolytic Capacitor works by storing energy in the electric field created between its two electrodes. When a voltage is applied across the capacitor, the positive lead accumulates positive charge, while the negative lead accumulates negative charge. This allows the capacitor to store energy, which can later be released when the voltage drops or a load is applied.

In power supply circuits, this capacitor helps to smooth out ripple voltages, providing a stable DC output. It is also used for filtering applications in audio and signal processing circuits to block DC components and pass only AC signals.

Applications:

• Power Supply Filtering: Used to filter out ripple and smooth fluctuations in DC power supply circuits, ensuring a consistent voltage output.

• Voltage Regulation: Helps stabilize the voltage in DC-DC converters, power regulators, and other voltage-sensitive applications.

• Audio Circuits: Commonly used in audio amplifiers and audio filters to block DC and pass AC signals, ensuring clear, undistorted audio output.

• Signal Coupling: Utilized to couple AC signals between circuit stages while blocking DC voltages.

• Motor Drivers: Helps smooth out voltage and current fluctuations in motor driver circuits.

Specifications:

• Capacitance: 1000µF (microfarads)

• Rated Voltage: 25V DC

• Tolerance: ±20% (standard tolerance for electrolytic capacitors)

• Temperature Range: Typically -40°C to +85°C (verify specific temperature range on datasheet)

• Type: Electrolytic, Polarized

• Mounting Style: Radial or Axial (depending on the specific variant)

• Lead Spacing: Typically 5mm or 7.5mm (check datasheet for exact size)

Limitations:

• Polarized: Proper polarity must be observed when installing the capacitor. Reversing the polarity can cause the capacitor to fail or leak.

• Voltage Rating: The applied voltage should not exceed 25V to avoid damaging the capacitor. Ensure the voltage does not rise above this rating in the circuit.

• Limited Lifespan: Electrolytic capacitors degrade over time, particularly under high temperature or voltage conditions. They may exhibit increased leakage current or reduced capacitance over time.

• Size: Although compact, the 1000µF capacitance might be too large for circuits with limited space constraints.
