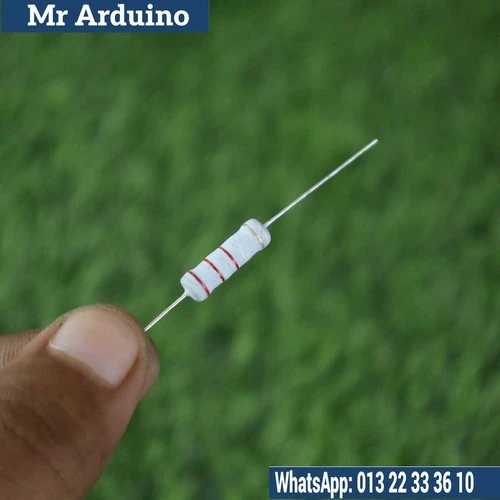

The 2.2K Ohm 2 Watt Resistor is a medium-value, high-power resistor designed for efficient current regulation and safe power dissipation in a wide range of electronic circuits. With a resistance value of 2.2K Ohms (2,200 Ohms) and a power rating of 2 Watts, this resistor is ideal for moderate-power applications where precise control of current is necessary. It is commonly used in voltage dividers, signal conditioning, and sensor circuits, offering reliable performance while protecting sensitive components from excessive current.

How it Works: The 2.2K Ohm 2 Watt Resistor resists the flow of electrical current, causing a voltage drop across it based on Ohm’s Law (V = I * R). The 2.2K Ohm resistance ensures that only a limited amount of current flows through the circuit, making it suitable for high-impedance applications. The 2-watt power rating allows the resistor to dissipate up to 2 watts of electrical energy as heat, ensuring that it can handle moderate power applications without the risk of overheating or damage.

Specifications:

• Resistance: 2.2K Ohms (2,200 Ohms)

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for exact tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 2-watt size for moderate-power applications

Applications:

• Voltage Dividers: Perfect for use in voltage divider circuits where high resistance values are needed to reduce voltage levels safely while dissipating moderate power.

• Signal Conditioning: Ideal for use in analog signal conditioning, filtering, amplifying, or modifying signals in audio, RF, and sensor systems.

• High-Impedance Circuits: Suitable for high-impedance circuits, such as sensor interfaces, high-accuracy measurement systems, and precision circuits that require stable current regulation.

• Current Limiting: Can be used in series with LEDs, transistors, or other components to limit the current and protect sensitive components from damage.

• Pull-up/Pull-down Resistors: Frequently used in digital circuits where high resistance values are needed to establish a known logical state.

Limitations:

• Power Rating: The 2-watt power rating should not be exceeded. Overloading the resistor can lead to overheating, resistor damage, or failure.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value of 2.2K Ohms, which could affect the accuracy in circuits requiring precise resistance values.

The 2.2K Ohm 2 Watt Resistor is ideal for voltage dividers, signal conditioning, high-impedance circuits, and current-limiting applications that require reliable performance in moderate-power systems.
