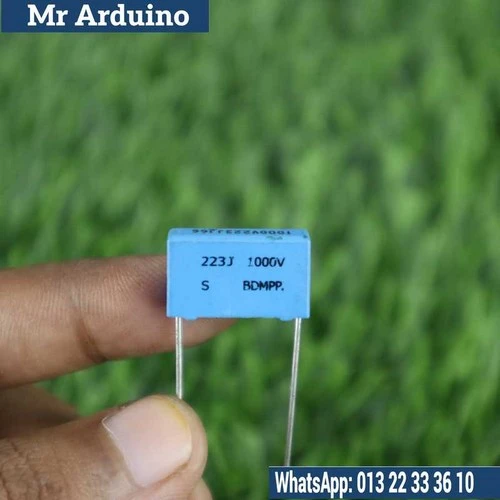

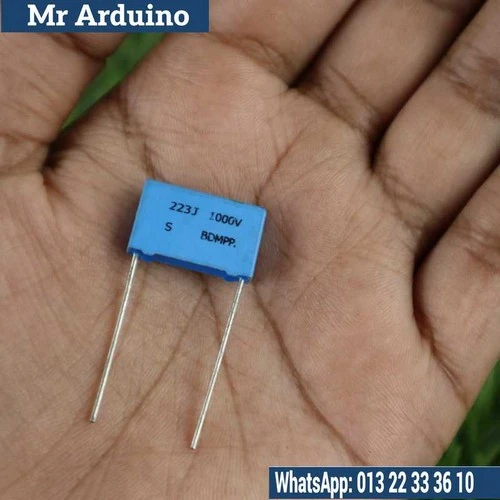

The 223J 1000V Ceramic Capacitor is a general-purpose ceramic capacitor designed for high-voltage applications, with a nominal capacitance of 22,000 pF (22nF) and a 1000V voltage rating. The "J" in the part number indicates a tolerance of ±5%, which means that the capacitance value can vary by up to 5% from the nominal value. The 1000V voltage rating allows this capacitor to withstand higher voltage conditions compared to typical capacitors, making it ideal for use in circuits where moderate to high voltage levels are present.

Ceramic capacitors are widely used for a variety of functions such as filtering, decoupling, voltage stabilization, and signal coupling. With its high voltage rating and relatively high capacitance, the 223J 1000V Ceramic Capacitor is suitable for power electronics, signal processing, and industrial applications.

Key Features:

• Capacitance: 22nF (22,000 pF), suitable for filtering and decoupling purposes in high-voltage circuits.

• Voltage Rating: 1000V, capable of handling high-voltage conditions without breaking down or causing failure in the circuit.

• Tolerance: ±5%, which is typical for most general-purpose ceramic capacitors.

• Material: Ceramic dielectric, which offers high stability and compact size.

• Durability: Designed for long-term reliability, especially under moderate to high-voltage conditions.

• Compact Size: Standard form factor that fits well in most electronic devices and circuit boards.

• Temperature Stability: Usually operates within the temperature range of -25°C to +85°C, though this may depend on the specific ceramic material used.

Applications:

• Power Supply Circuits: The 223J 1000V Ceramic Capacitor is ideal for high-voltage power supply systems, where it can filter out noise or provide voltage smoothing in AC or DC power circuits.

• Filtering and Decoupling: It is commonly used in filtering and decoupling circuits to smooth out voltage fluctuations, suppress high-frequency noise, and prevent voltage spikes from reaching sensitive components.

• Signal Coupling: Suitable for signal coupling applications, where it allows AC signals to pass between different stages of a circuit while blocking DC components, particularly in audio or communication systems.

• Motor Drives and Industrial Equipment: Used in motor drives, power inverters, and other industrial power equipment to filter or stabilize the voltage.

• HV (High-Voltage) Circuits: Often utilized in high-voltage circuits like HV power supplies, electric motors, and inductive loads, which require capacitors that can handle significant electrical stress.

• Lighting Systems: Common in high-voltage lighting systems, including fluorescent and LED drivers, for voltage stabilization and reducing noise.

• Medical Equipment: May be used in medical devices that operate under high-voltage conditions and require reliable capacitors for smooth voltage regulation.

• Surge Protection: Can be used in surge protection circuits to stabilize transient voltage fluctuations and avoid damage to sensitive components.

How It Works: A ceramic capacitor, like the 223J 1000V, functions by storing electrical energy in the form of an electrostatic field between its ceramic dielectric material and two metal electrodes. The basic operation is as follows:

1. Energy Storage: When a voltage is applied across the capacitor, it causes electric charges to accumulate on the plates (electrodes). The ceramic dielectric material in between the plates acts as an insulator, allowing the capacitor to store energy in the form of an electrostatic field.

2. Capacitance: The capacitance value (22nF in this case) determines how much charge the capacitor can store for a given voltage. The larger the capacitance, the more charge the capacitor can store. In this case, the 22nF value is suited for filtering moderate to high-frequency signals and stabilizing power voltages.

3. Voltage Clamping: As the voltage applied to the capacitor increases, it will eventually reach the capacitor’s voltage rating (in this case, 1000V). The capacitor is designed to tolerate voltages up to 1000V without breaking down or failing. Any voltage beyond this rating risks damaging the capacitor’s dielectric material.

4. Decoupling and Filtering: In decoupling applications, the capacitor helps smooth out variations in voltage. When the voltage fluctuates or experiences high-frequency noise, the capacitor absorbs and stores the excess energy, stabilizing the overall voltage of the circuit.

5. Signal Coupling: The capacitor can allow alternating signals (AC) to pass through while blocking direct current (DC). This makes it an ideal component in circuits where AC signals need to be coupled between different stages without transferring DC.

6. High-Voltage Tolerance: The 1000V voltage rating ensures the capacitor will operate safely in high-voltage environments, such as in industrial power equipment or HV power supplies, where higher voltage levels can be present.

Product Limitations:

• Tolerance: The ±5% tolerance may not be precise enough for applications that demand highly accurate capacitance values, such as certain timing circuits or RF (radio-frequency) applications.

• Size and Capacitance: With a 22nF capacitance, the capacitor may not be ideal for applications that require very high capacitance values or very small sizes. Higher capacitance values or different types of capacitors (e.g., electrolytic or tantalum capacitors) may be necessary for different applications.

• Temperature Sensitivity: Ceramic capacitors can have a temperature coefficient, meaning their capacitance value can change slightly with temperature. If the device will be used in environments with large temperature fluctuations, this could affect performance.

• Not Suitable for High-Frequency Applications: While this capacitor can be used in many general-purpose applications, ceramic capacitors may exhibit performance degradation at high frequencies due to parasitic inductance or microphonic noise. They are not ideal for circuits where extremely high-frequency performance is critical.

Conclusion: The 223J 1000V Ceramic Capacitor is a highly versatile and reliable component designed for use in high-voltage applications such as power supplies, signal filtering, decoupling, and coupling circuits. With its 22nF capacitance and 1000V voltage rating, it is well-suited for a wide range of applications in consumer electronics, industrial systems, lighting circuits, and motor drives that require robust voltage regulation and noise suppression.

While it offers good stability and reliable performance under normal conditions, users should consider its tolerance and high-voltage limits for the best results in specific applications.
