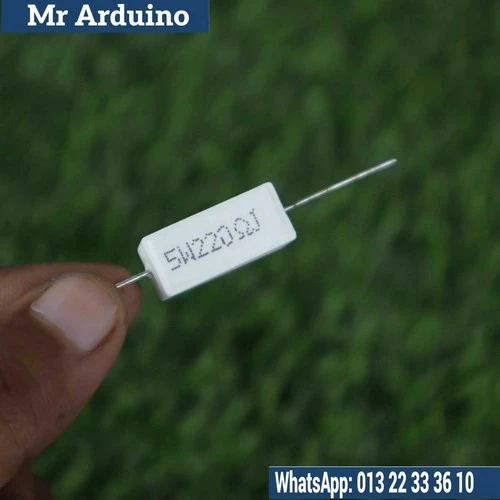

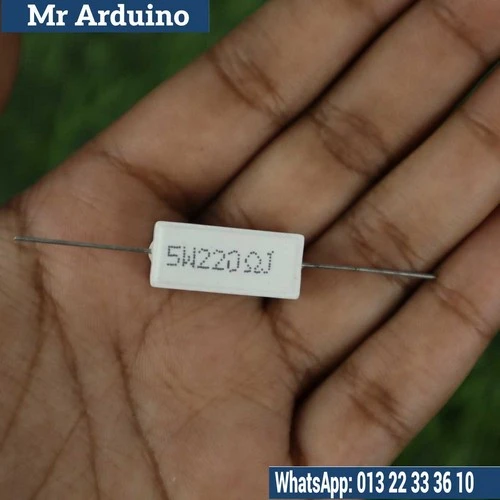

The 220 Ohm 5 Watt Resistor is a high-quality, durable passive electronic component designed to regulate current and manage power dissipation in various electronic circuits. With a resistance value of 220 ohms and a 5-watt power rating, this resistor is suitable for medium-power applications where heat dissipation and efficient current control are essential. Commonly used in voltage dividers, LED circuits, and other power-sensitive applications, it ensures reliable operation even under moderate power loads.

How it works: This 220 Ohm 5 Watt Resistor limits the flow of electric current in a circuit by offering 220 ohms of resistance. As current flows through the resistor, some of the electrical energy is converted into heat. The 5-watt power rating means that the resistor can safely dissipate up to 5 watts of heat, ensuring stability in circuits that operate at moderate power levels. The resistor plays a critical role in controlling voltage and current to protect sensitive components from overcurrent or voltage spikes.

Product Specifications:

• Resistance: 220 Ohms

• Power Rating: 5 Watts

• Tolerance: ±5% (standard tolerance range)

• Type: Fixed Resistor

• Material: Often made from carbon film, metal oxide, or wire-wound for better heat dissipation and long-term durability.

• Usage: Ideal for use in LED circuits, voltage dividers, power supplies, and current-limiting applications.

• Size: Standard cylindrical or wire-wound design, depending on the manufacturer.

Usage Tips:

• Ensure that the resistor is used in applications where the power dissipation does not exceed 5 watts to avoid overheating or damage.

• Perfect for use in low to medium power electronic circuits that require current regulation, such as in LED drivers, power supplies, and audio amplifiers.

• It can also be used in voltage regulation and signal conditioning, where precise control of current flow is necessary.

The 220 Ohm 5 Watt Resistor is an excellent choice for electronic projects that require both efficient current limiting and reliable heat dissipation. It ensures your circuits stay safe and function optimally while preventing damage to sensitive components.
