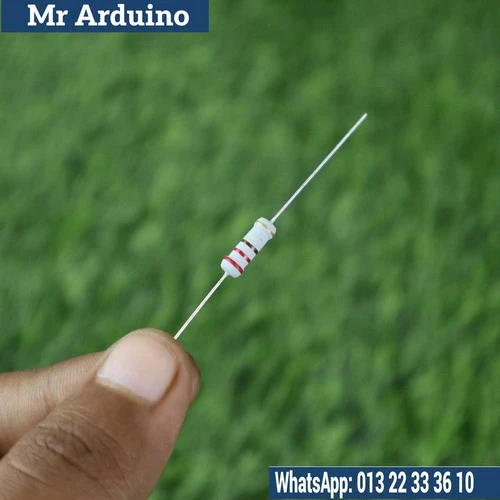

The 220 Ohm 1 Watt Resistor is a reliable and efficient electronic component used to regulate current flow in a variety of electronic circuits. With a resistance of 220 Ohms and a power rating of 1 Watt, this resistor is ideal for moderate power applications where controlling the current is essential. It is commonly used in power supplies, current-limiting circuits, and voltage divider networks, providing both protection and performance.

How it Works: The 220 Ohm 1 Watt Resistor operates by opposing the flow of current in a circuit, creating a voltage drop according to Ohm's Law (V = I * R). The 220 Ohm resistance helps limit the current to a safe value, protecting sensitive components such as LEDs and transistors. The 1-watt power rating ensures that this resistor can safely dissipate up to 1 watt of electrical power as heat, which makes it suitable for moderate-power circuits.

Specifications:

• Resistance: 220 Ohms

• Power Rating: 1 Watt

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Standard 1-watt size for general-purpose applications

Applications:

• Current Limiting: Used in series with LEDs, diodes, or other components to limit current and protect against overcurrent.

• Voltage Divider: Ideal for use in voltage divider circuits to generate different voltage levels for various parts of a circuit.

• Power Supply Circuits: Often used in power supplies to ensure safe and stable current flow.

• Signal Conditioning: Used to adjust, filter, or stabilize signals in analog or audio circuits.

• Audio Circuits: Suitable for adjusting impedance or managing power dissipation in audio equipment and amplifiers.

Limitations:

• Power Rating: This resistor is rated for 1 watt of power dissipation. Exceeding this power rating can cause the resistor to overheat and potentially fail.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal value of 220 Ohms, which can affect accuracy in precision applications.

Perfect for current limiting, voltage dividers, power supplies, and signal conditioning in moderate-power applications, the 220 Ohm 1 Watt Resistor is an essential component for many electronic projects.
