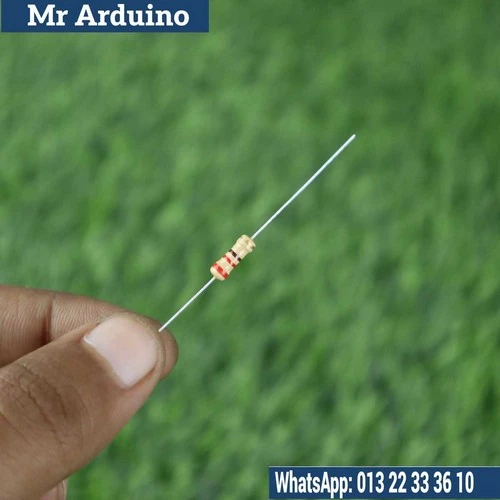

The 220 Ohm 0.5 Watt Resistor is a compact and efficient electronic component that offers reliable performance in controlling the current flow in low-power circuits. With a resistance value of 220 Ohms and a power rating of 0.5 Watt, this resistor is ideal for various applications where moderate current limiting is required. It's commonly used in circuits involving LEDs, signal processing, and basic circuit protection.

How it Works: This 220 Ohm 0.5 Watt Resistor operates by creating resistance in the circuit, which results in a voltage drop across the resistor as per Ohm's Law (V = I * R). The 0.5-watt power rating indicates that the resistor can safely dissipate up to 0.5 watts of power as heat without risk of overheating or damage. This makes it suitable for use in low-power circuits where managing heat and current is important.

Specifications:

• Resistance: 220 Ohms

• Power Rating: 0.5 Watt

• Tolerance: Typically ±5% (check the product for specific tolerance)

• Material: Carbon Film or Metal Film (depends on the variant)

• Size: Standard 1/4-watt size for general-purpose, low-power applications

Applications:

• Current Limiting: Commonly used in series with LEDs or other components to limit the current flow and prevent component damage.

• Voltage Divider: Can be used in voltage divider circuits to create specific voltage levels.

• Signal Processing: Used in analog and audio circuits for signal conditioning and noise reduction.

• Basic Circuit Protection: Helps protect sensitive components by controlling the amount of current flowing through the circuit.

• Power Supplies: Suitable for low-power power supplies, ensuring stable current flow and protecting components from excess power.

Limitations:

• Power Rating: This resistor is rated for a maximum of 0.5 watts of power dissipation. Exceeding this limit may cause overheating, which could damage the resistor.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from 220 Ohms, which can impact precision in applications where exact resistance is crucial.

Ideal for low-power electronic circuits, current limiting, voltage division, and signal conditioning, the 220 Ohm 0.5 Watt Resistor is a perfect choice for a variety of projects.
