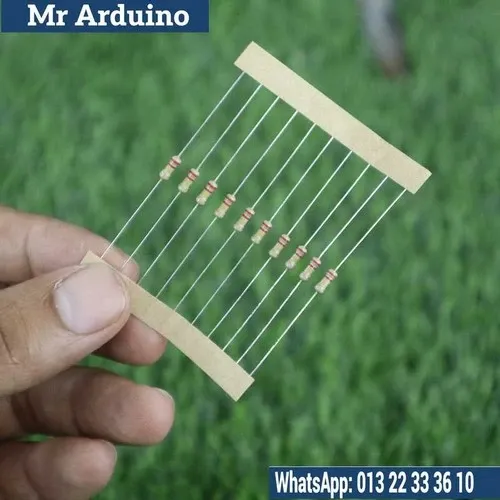

The 220K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 220,000 ohms (220K ohms) and a power rating of 0.25 watts (quarter-watt). This resistor is designed for use in low-power electronic circuits, making it suitable for applications like voltage dividers, signal processing, sensor circuits, and current-limiting applications, especially when dealing with low-current systems.

The 220K ohm resistor is commonly used in analog circuits where moderate resistance is required to control current flow and ensure voltage levels remain within desired ranges. It is a popular choice in DIY electronics, hobby projects, and prototype circuits due to its reliability and efficiency in low-power environments.

Key Features:

• Resistance Value: 220K ohms, ideal for circuits that need to limit current or divide voltages in higher resistance ranges.
• Power Rating: 0.25W (quarter-watt), making it perfect for low-power applications where minimal heat dissipation is required.
• Tolerance: Typically ±5% tolerance, but precision versions with ±1% tolerance may be available for applications requiring more accuracy.
• Compact Size: The quarter-watt form factor is designed to fit into breadboards, PCBs, and other compact circuit designs, saving valuable space.
• Material: Usually made from carbon film or metal oxide, providing good durability, stability, and long-lasting performance in various conditions.

How It Works: The 220K Ohm Resistor Quarter Watt 0.25W operates in the same way as any resistor. According to Ohm's Law (V = IR), where V is the voltage, I is the current, and R is the resistance, this resistor will limit the current flow for a given applied voltage.

For example, if 5V is applied across the 220K ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{220,000Ω} \approx 0.0000227 \, A = 22.7 \, \mu A$$

This means, with a 5V supply, the current flowing through the 220K ohm resistor will be approximately 22.7 microamperes (µA), which is very small, ideal for sensitive electronics and low-power designs.

The power dissipated by the resistor is calculated as:

$$P = I^2 \times R$$

Substituting the current into the formula:

$$P = (0.0000227 \, A)^2 \times 220,000Ω \approx 0.00025W = 0.25W$$

This confirms that the 0.25W power rating is sufficient to handle the power dissipation for this application.

Applications:

• Voltage Dividers: Used in voltage divider circuits to provide specific voltage levels to components such as microcontrollers, sensors, or ADC (Analog-to-Digital Converters).
• Current Limiting: Ideal for LED circuits or low-current applications where the current needs to be controlled to prevent damage to sensitive components.
• Signal Conditioning: Utilized in signal processing circuits to attenuate or filter unwanted noise or signals in applications like audio processing or analog signal conditioning.
• RC Circuits: Often used in Resistor-Capacitor (RC) circuits for controlling time constants, filtering signals, or smoothing circuits.
• Impedance Matching: In audio circuits, impedance matching ensures efficient signal transfer between different components, improving performance.
• Audio Circuits: Used in audio signal conditioning and level control, helping to maintain clear and accurate signals in audio devices.
• Power Supply Regulation: Useful in voltage regulation circuits, ensuring stable voltage in low-power applications.

Limitations:

• Low Power Rating: The 0.25W power rating restricts the resistor to low-power circuits. If more power dissipation is needed, consider using a higher power-rated resistor (e.g., 0.5W or 1W).
• Current Handling: Suitable for low-current applications. For high-current applications, a lower resistance and a higher power rating would be necessary to avoid overheating.
• Tolerance: The ±5% tolerance allows for some variation in the resistor's actual value. If your application requires more precise resistance values, consider a precision resistor with ±1% tolerance.

The 220K Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component for a variety of low-power electronic circuits. Whether you are working on voltage dividers, current-limiting, or signal conditioning, this resistor provides the needed performance without dissipating excessive power or generating unnecessary heat. Its compact size, affordable price, and stable performance make it an excellent choice for hobbyists, DIYers, and engineers working on low-power designs.
