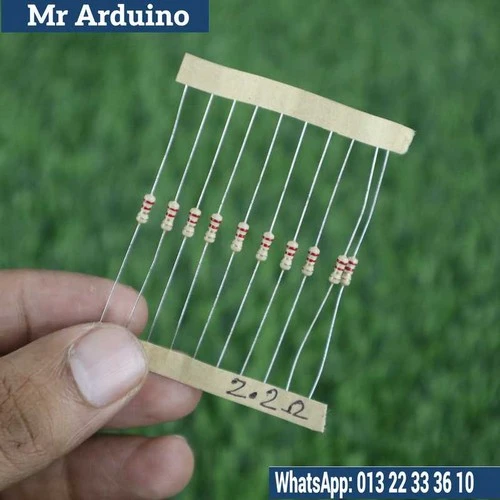

The 2.2 Ohm Resistor Quarter Watt 0.25W is a precise and reliable resistor designed to offer a resistance of 2.2 ohms with a 0.25-watt (quarter watt) power rating. This resistor is commonly used in low-power circuits to manage current flow, protect components, and create voltage drops across a circuit while ensuring minimal power dissipation.

With a quarter-watt power rating, it is ideal for applications that do not require significant heat dissipation. It is particularly useful in power regulation, signal processing, current-limiting, and voltage divider circuits in various low-power and electronic applications.

Key Features:

• Resistance Value of 2.2 Ohms: Provides a low resistance for controlling current flow, making it suitable for applications where small current regulation is required.
• 0.25-Watt Power Rating (Quarter Watt): Safe to use in low-power applications, dissipating up to 0.25 watts of power with minimal heat generation.
• Compact Form Factor: The small size makes it easy to integrate into breadboards, PCBs, or other small-scale circuit designs.
• Reliable Construction: Manufactured with high-quality materials for consistent performance over time.
• Wide Application: Ideal for current-limiting circuits, voltage dividers, signal conditioning, and other low-power circuit applications.

How It Works:

1. Current Limiting: The 2.2 ohm resistance limits the flow of current, preventing excessive current from damaging other components in the circuit.
2. Voltage Divider: It can be used in conjunction with other resistors to create a voltage divider, allowing for a controlled reduction of voltage in a circuit.
3. Power Dissipation: This resistor can dissipate up to 0.25 watts of power as heat, making it perfect for low-power, minimal-heat dissipation circuits.
4. Signal Conditioning: Used in signal conditioning circuits to adjust current and voltage levels for optimal performance in various applications.

Limitations:

• Power Rating: The 0.25-watt power rating limits its use to low-power applications. It should not be used in circuits where power dissipation exceeds this limit, as it may cause overheating or failure.
• Tolerance: Like all resistors, it may have a small tolerance (typically ±5% or ±1%), so the actual resistance value may vary slightly from the nominal 2.2 ohms.
• Not Suitable for High-Power Applications: This resistor is designed for low-power circuits and is not recommended for high-power designs that require significant heat dissipation.

Perfect for:

• Low-Power Circuits: Ideal for low-power applications, including battery-powered devices and circuits that require minimal energy consumption.
• DIY Electronics & Prototyping: A great choice for hobbyists and students working on electronic projects or prototypes that need precise current control.
• Voltage Dividers & Signal Processing: Works well in voltage divider circuits and other applications where current and voltage need to be adjusted or controlled.
• Current Limiting: Commonly used in power-sensitive circuits to limit current and protect sensitive components from overcurrent.

The 2.2 Ohm Resistor Quarter Watt 0.25W is a reliable and versatile component, ideal for various low-power applications. Whether you're building a voltage divider, limiting current, or conditioning signals, this resistor provides consistent and effective performance for your circuit designs.
