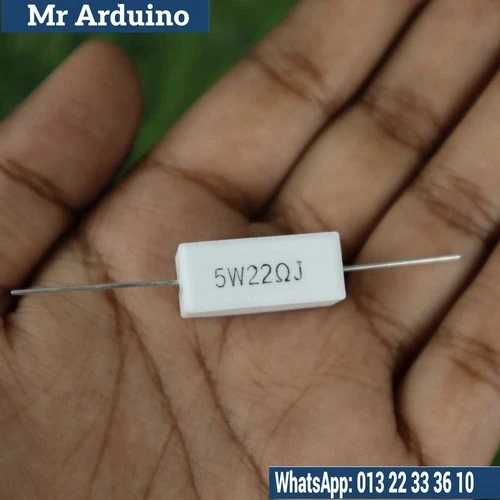

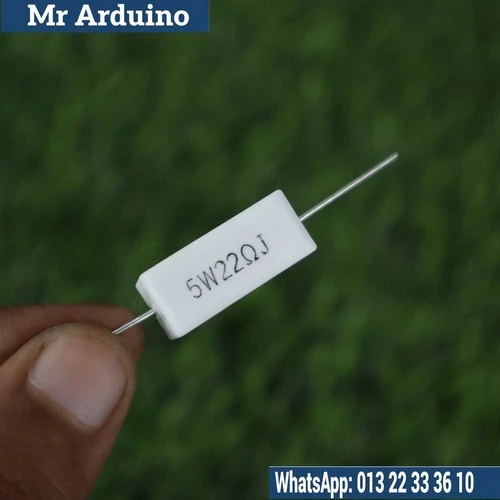

The 22 Ohm 5 Watt Resistor is a high-performance, durable passive component designed for circuits that require precise resistance and the ability to handle moderate power dissipation. With a resistance of 22 ohms and a 5-watt power rating, this resistor is ideal for use in power supplies, LED circuits, amplifiers, and other medium-power electronic applications. Its 5-watt power rating allows it to dissipate heat efficiently, ensuring reliable performance in high-current circuits.

How it works: This 22 Ohm 5 Watt Resistor works by limiting the flow of electric current in a circuit. The 22-ohm resistance helps control the current that flows through the circuit. As the current passes through, it generates heat, which is safely dissipated by the resistor, thanks to its 5-watt power rating. This makes it suitable for circuits that need to handle moderate power levels, offering both current regulation and heat management for efficient operation.

Product Specifications:

• Resistance: 22 Ohms

• Power Rating: 5 Watts

• Tolerance: ±5% (standard tolerance range)

• Type: Fixed Resistor

• Material: Typically made from carbon film, metal oxide, or wire-wound for excellent heat dissipation and durability.

• Usage: Ideal for use in high-current power supplies, LED drivers, voltage dividers, current-limiting applications, and other medium-power circuits.

• Size: Standard cylindrical or wire-wound design, depending on the manufacturer.

Usage Tips:

• Ensure the resistor is used in circuits where the power dissipation does not exceed 5 watts to prevent overheating or failure.

• Suitable for current-regulating applications such as LED circuits, power supplies, amplifiers, and motor controllers.

• Perfect for circuits where precise resistance is required, but heat dissipation needs to be managed effectively.

The 22 Ohm 5 Watt Resistor is a reliable and durable solution for circuits requiring medium power handling and precise current regulation. It ensures stable and safe operation, making it an excellent choice for a wide variety of electronic projects.
