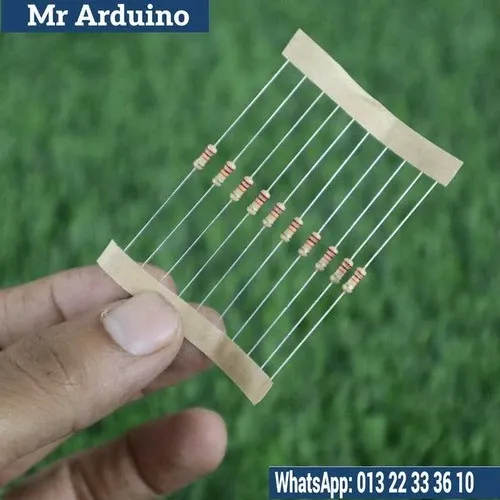

The 22K Ohm Resistor Quarter Watt 0.25W is a fixed resistor with a resistance value of 22,000 ohms (22KΩ) and a power rating of 0.25 watts (quarter-watt). It is commonly used in low-power electronic circuits to limit current, divide voltage, or adjust signal levels. This resistor is ideal for applications such as voltage dividers, current-limiting circuits, signal conditioning, and filtering. The 0.25W power rating makes it suitable for low-power circuits, preventing overheating and ensuring reliable performance in such applications.

The compact size and affordable price make this resistor a popular choice in hobbyist and professional electronics, especially where space is constrained and low power dissipation is required.

Key Features:

• Resistance Value: 22K ohms, ideal for moderate resistance applications that require precise control of current and voltage.
• Power Rating: 0.25W (quarter-watt), designed for low-power applications, making it safe to use without the risk of overheating in typical circuit conditions.
• Tolerance: Typically available with a ±5% tolerance (standard), with more precise options available for ±1% tolerance if higher accuracy is needed.
• Compact Size: The quarter-watt size allows easy integration into compact electronic devices, breadboards, and printed circuit boards (PCBs).
• Material: Usually made from carbon film or metal oxide, offering high durability, stability, and long-term reliability.

How It Works: The 22K Ohm Resistor Quarter Watt 0.25W limits the current flow through a circuit in accordance with Ohm’s Law (V = IR), where V is the voltage across the resistor, I is the current flowing through it, and R is the resistance. The 22K ohm resistance will determine how much current flows for a given voltage.

For example, if a 5V voltage is applied across the 22K ohm resistor, the current flowing through the resistor can be calculated as:

$$I = \frac{V}{R} = \frac{5V}{22KΩ} = 0.227 \, mA$$

This means that with a 5V supply, the current flowing through the 22K ohm resistor would be approximately 0.227 milliamps (mA). This makes it suitable for applications where only a small amount of current needs to flow.

The 0.25W power rating ensures that the resistor can safely dissipate up to 0.25 watts of power without the risk of damage or overheating.

Applications:

• Voltage Dividers: Used in voltage divider circuits to produce specific voltage levels required for microcontrollers, sensors, or analog-to-digital converters (ADC).
• Signal Conditioning: In signal processing circuits, the resistor helps to attenuate or filter signals, adjusting the amplitude for a more stable output in analog applications.
• Current Limiting: Ideal for LED circuits, where it is used to limit the current and protect the LEDs from excess current that could cause them to burn out.
• Impedance Matching: Used in audio circuits and telecommunication systems for impedance matching to ensure optimal power transfer between components.
• RC Circuits: Can be used in RC circuits to determine time constants for filtering or delaying signals in analog circuits.
• Sensor Circuits: Commonly used in sensor applications to control and stabilize the voltage supplied to sensors, ensuring accurate readings and preventing overvoltage.
• Audio Equipment: Frequently used in audio amplifiers and tone control circuits to control signal levels and provide voltage drop where needed.

Limitations:

• Low Power Rating: The 0.25W power rating limits this resistor to low-power applications. If used in higher-power circuits, the resistor could overheat or become damaged. For such applications, a resistor with a higher power rating (e.g., 0.5W or 1W) should be used.
• Current Handling: This resistor is designed for low-current applications. For high-current circuits, a lower resistance and higher power-rated resistor is required to prevent overheating.
• Tolerance: With a ±5% tolerance, the actual resistance value can vary slightly from the nominal value, which might impact circuit performance in precision applications. For higher accuracy, precision resistors with ±1% tolerance are a better choice.

The 22K Ohm Resistor Quarter Watt 0.25W is a versatile and reliable component used in a wide range of low-power applications, including voltage division, current regulation, and signal conditioning. It is ideal for use in microcontroller circuits, LED circuits, audio systems, sensors, and many more electronic projects, providing stable and efficient performance in a small form factor.
