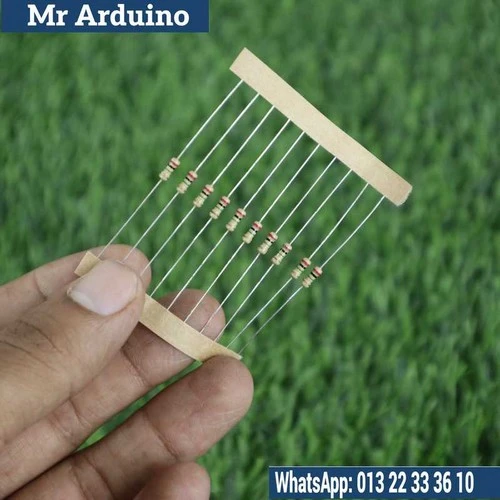

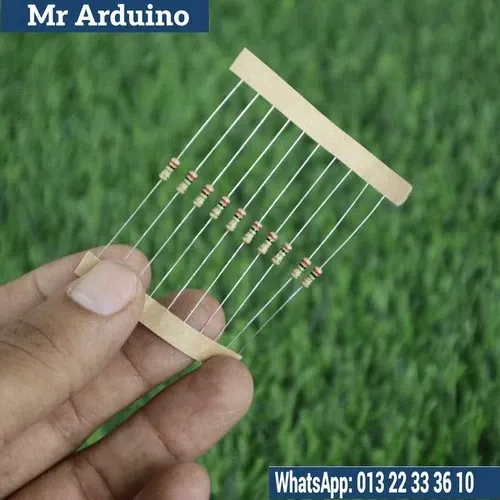

The 2M Ohm Resistor Quarter Watt 0.25W is a high-precision resistor with a resistance value of 2,000,000 ohms (2M) and a power rating of 0.25 watts. This resistor is designed for use in low-power applications where a high resistance value is required to limit current or control voltage. With a quarter-watt power rating, it is suitable for low-power electronic circuits and is commonly used in applications like voltage dividers, signal conditioning, and filtering circuits.

The 2M Ohm resistance value makes it ideal for circuits where very high resistance is needed, such as in biasing, high-impedance input circuits, and sensing applications. The 0.25W power rating ensures that the resistor can handle small currents without overheating, making it well-suited for low-voltage, low-current environments.

Key Features:

• Resistance Value: 2M ohms (2,000,000 ohms), a high resistance value ideal for use in voltage dividers, biasing circuits, and sensor applications.
• Power Rating: 0.25W (quarter-watt), meaning it can safely dissipate up to 0.25 watts of power without overheating, making it suitable for low-power applications.
• Tolerance: Typically available in ±5% or ±1% tolerance, which indicates how much the actual resistance value can vary from the nominal value. The lower the tolerance, the more precise the resistor is.
• Compact Size: As a quarter-watt resistor, it has a small physical size, making it easy to fit into compact circuit boards or projects with space constraints.
• Standard Construction: Usually made from carbon film or metal oxide materials, offering durability, reliability, and consistent performance in various environments.

How It Works: A resistor works by limiting the flow of electric current through a circuit. The 2M Ohm Resistor Quarter Watt 0.25W specifically restricts the flow of current based on its high resistance value. It operates based on Ohm's Law (V = IR), where:

• V is the voltage across the resistor,
• I is the current flowing through the resistor, and
• R is the resistance value.

When current flows through the resistor, the 2M ohm resistance causes a voltage drop according to the equation, limiting the amount of current that passes through the circuit. This is particularly useful in circuits where only small amounts of current are required, such as in sensing, signal conditioning, and biasing circuits.

Additionally, the 0.25W power rating ensures that the resistor can handle the heat generated by current flowing through it without exceeding its safe operating limits. In applications that require precision, the resistor's tolerance ensures a more accurate and stable value for voltage regulation or signal processing.

Applications:

• Voltage Dividers: Used in voltage divider circuits to divide a higher voltage into a lower, usable voltage level, often for sensor circuits or analog-to-digital conversion in microcontroller projects.
• Biasing: Common in biasing circuits for transistors, op-amps, or FETs, where accurate and stable resistor values are required to set the operating point of the components.
• Sensing Applications: Often used in sensor circuits, where high resistance is needed to avoid drawing excessive current from sensitive components such as photoresistors, thermistors, or strain gauges.
• Signal Conditioning: Suitable for signal conditioning circuits where high resistance is needed to shape or filter signals, particularly in audio circuits or data acquisition systems.
• Filter Circuits: Used in RC (resistor-capacitor) filters, where it helps set the cutoff frequency or filter characteristics in low-pass, high-pass, and band-pass configurations.
• High-Impedance Inputs: Perfect for high-impedance input circuits in applications such as audio equipment, voltage measurement systems, and microcontroller interfacing.

Limitations:

• Low Power Rating: The 0.25W power rating means this resistor is only suitable for low-power applications. If higher currents are required, a resistor with a higher power rating should be used to avoid overheating or damage.
• High Resistance Limitations: Due to the high resistance value of 2M ohms, the resistor is only suitable for circuits where high resistance is needed. It is not appropriate for applications that require low resistance or high current.
• Tolerance Variations: The tolerance (typically ±5% or ±1%) may result in slight variations in the actual resistance value, which could affect the precision in highly sensitive circuits.

The 2M Ohm Resistor Quarter Watt 0.25W is an essential component for many low-power, high-impedance circuits. It offers precise resistance control for applications like voltage dividers, biasing, and sensor circuits. With its small size, reliable performance, and high resistance value, it is ideal for a wide range of electronics projects where current needs to be carefully controlled or limited.
