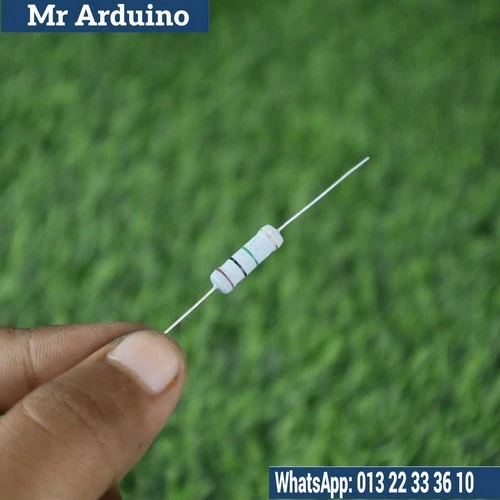

The 1M Ohm 2 Watt Resistor is a high-impedance, high-power resistor designed for applications requiring a high level of resistance and the ability to dissipate more power. With a resistance of 1M Ohm (1,000,000 Ohms) and a power rating of 2 Watts, this resistor is ideal for circuits that need to handle moderate to high voltages while maintaining low current flow. It's commonly used in power supplies, voltage dividers, and high-impedance applications.

How it Works: The 1M Ohm 2 Watt Resistor works by limiting the flow of current through a circuit, resulting in a voltage drop as per Ohm's Law (V = I * R). The 1M resistance significantly reduces the current in the circuit, making it suitable for high-voltage applications. The 2-watt power rating indicates that this resistor can safely dissipate up to 2 watts of power as heat. It is built to handle higher power than typical 1/4-watt or 1/2-watt resistors, making it ideal for circuits that involve higher voltage or power levels.

Specifications:

• Resistance: 1M Ohms (1,000,000 Ohms)

• Power Rating: 2 Watts

• Tolerance: Typically ±5% (check product for specific tolerance)

• Material: Carbon Film or Metal Film (depending on the variant)

• Size: Larger form factor compared to standard resistors due to higher power rating

Applications:

• Voltage Dividers: Used in voltage divider circuits where high resistance is required to step down voltages while maintaining power dissipation within safe limits.

• Current Limiting: Suitable for high-voltage circuits where controlling the flow of current is necessary to protect sensitive components.

• Power Supplies: Commonly used in power supply circuits to limit current and maintain stable voltage levels.

• Signal Conditioning: Employed in signal processing applications that require high impedance for filtering or voltage shaping.

• High-Impedance Applications: Ideal for circuits requiring high resistance, such as in sensors, amplifiers, and other sensitive electronics.

Limitations:

• Power Rating: This resistor is rated for 2 watts of power dissipation. Exceeding this limit can result in overheating and potential damage.

• Tolerance: With a ±5% tolerance, the actual resistance may vary slightly from the nominal 1M Ohms, which may impact precision in applications requiring exact resistance values.

The 1M Ohm 2 Watt Resistor is perfect for high-voltage circuits, power regulation, voltage division, and other high-impedance applications that require a reliable and robust resistor with increased power dissipation capacity.
